Features:

The IP5328P has a constant synchronous switching structure, which supports constant voltage rechargeable lithium battery management systems. It can automatically adapt to various charging-

The IP5328P switch uses charging technologies, the switching frequency is 500 kHz. Common 5V input charging, maximum input power 10W; fast charging input-

When charging, the maximum input power is 18W. At the end of the battery's maximum charging current up to 5.0A, the maximum charging efficiency of 94%, charging time can be shortened to 3/4.

The IP5328P supports integrated high-voltage output from the synchronous switching systems, to support a wide voltage range of 5V ~ 12V output, negative-

Load capacity of 5V-3.1A, 7V-2.4A-, 9V-2.0A, 12V-1.5A. Switching frequency 375 kHz. Built-in soft start function to prevent inrush current at start-up failures caused by excessive, the integrated output overcurrent, short circuit, overvoltage, overtemperature protection-

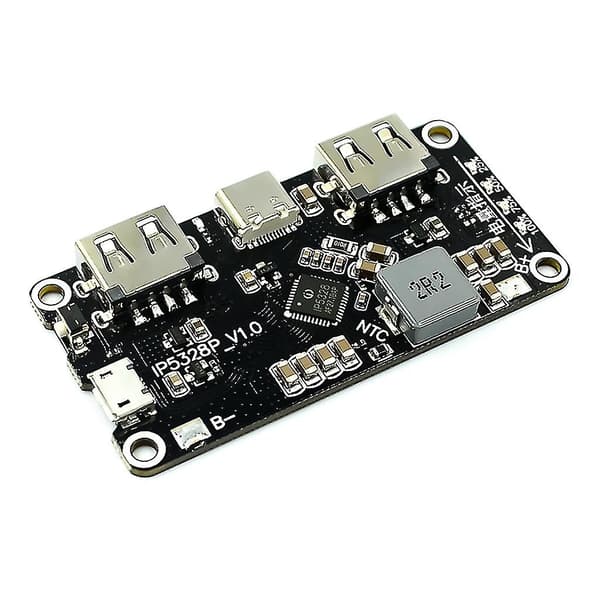

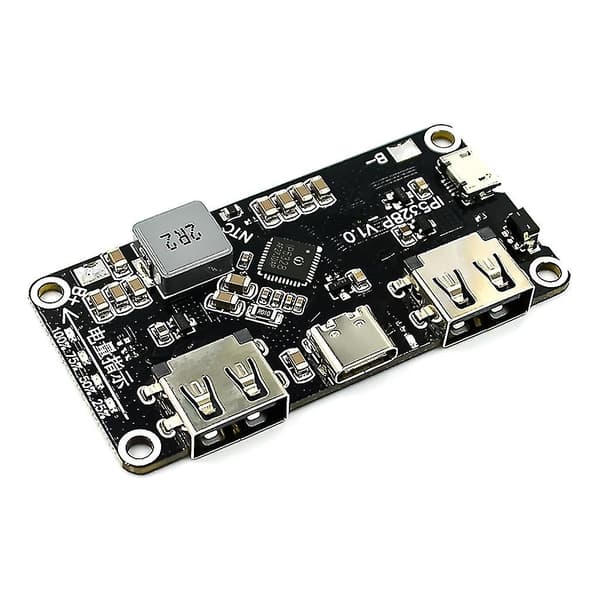

Using mobile power supply - IP5328P optimized layout, support for multiple protocols fast charging, fast charging bidirectional 18W, can support a total of 4 charging ports: 2 USB-A output interfaces, USB-C interface, MicroUSB interface;

Specifications:

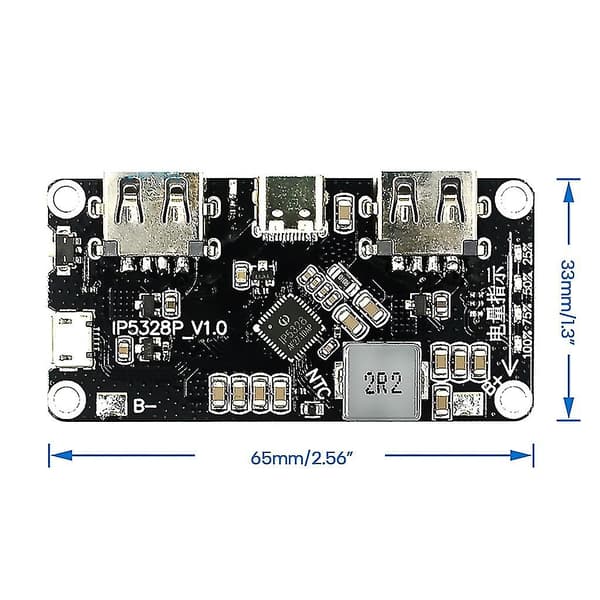

Size: approx. 65 mm x 33 mm / 2.56 x 1.3 inches

Output interface: USBA + USBA + TYPE-C support for fast charging output (see protocol specification fast charging)

An input interface: MICRO + TYPE-C support for fast charging input (see protocol specification fast charging)

Battery type: 3.7V battery (lithium battery composition or 18650) Single parallel, capacity is not limited, the larger the capacity the longer the charging and discharging time, add battery safety protection board

Fast charging indication: input and output high voltage fast charging indicator

Conversion efficiency: 95% efficiency

Note:

Due to problems with lighting effects and shooting angles, there will be certain tolerances in the product, please understand.

Please allow 0-1 cm error due to manual measurement

Package includes:

1 pc fast charging switch module
