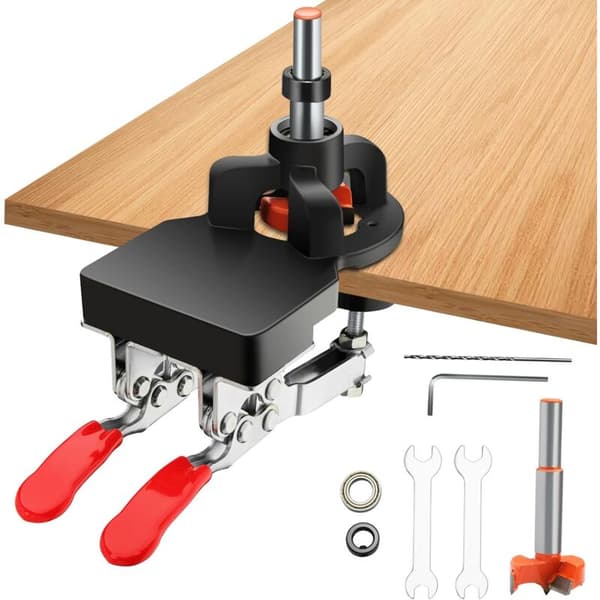

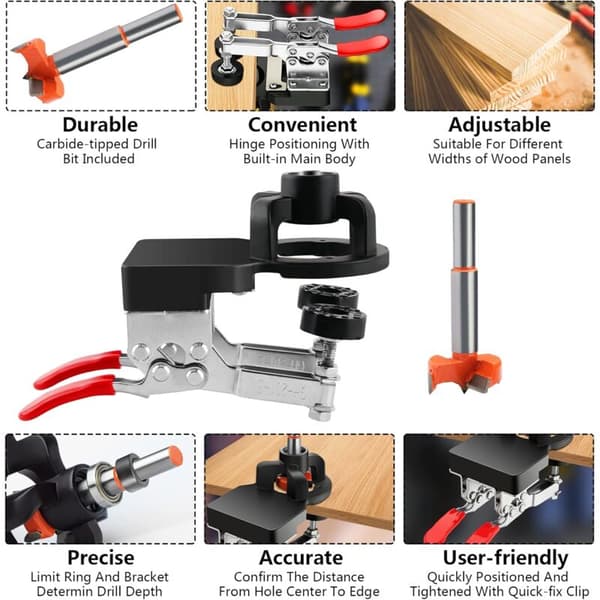

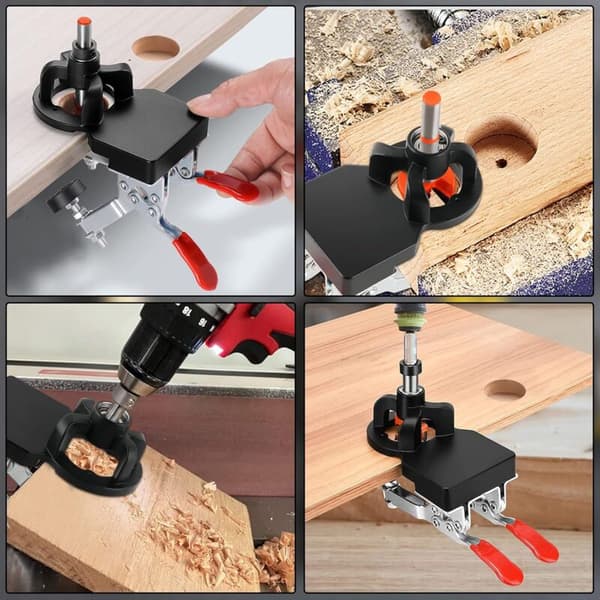

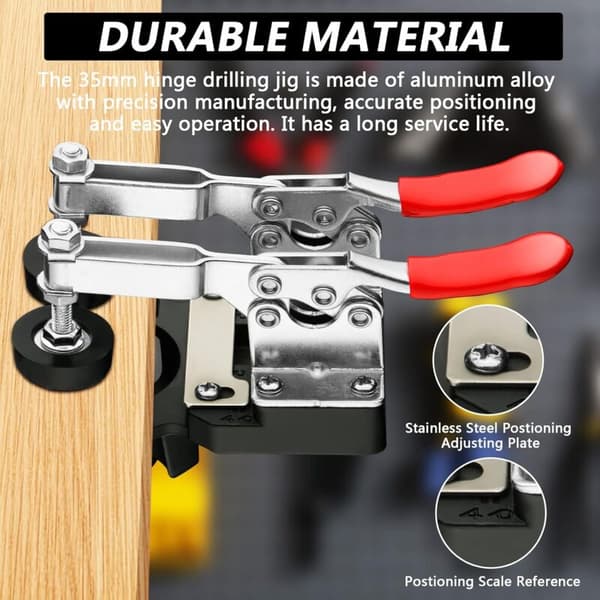

【High-Quality Material】Concealed Hinge Jig We use high-quality aluminum alloy material, precise manufacturing, accurate positioning, sharp drill bit, easy to use, wear-resistant and durable, long service life. This very practical woodworking punch is an excellent tool set for furniture factories and woodworkers to install concealed hinges on doors or cabinets. 【Double Clamp Design】 We have upgraded the hinge jig's three-layer drill bushing to reduce the drill's swing distance and improve the accuracy of hole opening. Double clamps on the front and back, firmly fix the layout again without damaging the finish. Applicable door thickness: 15-25 mm, opening depth 10-15 mm. 【Margin Adjustment Function】 The total height of the upper, middle, and lower load-bearing drill bushing on the hinge jig is 2 cm. The higher the height, the lower the vibration of the drill and the more accurate the drilling. We have added the margin adjustment block and 2 adjustment screws, the distance between the 35 mm hole and the edge can be adjusted between 3 and 7 mm, while the distance between the 35 mm hole and the edge in the old version was fixed at 5 mm. 【Installation Method】1. Install the margin adjustment block; 2. Install the 35 mm hole saw, adjust the drilling depth to 12-13 mm and lock the limit ring. 3. Adjust the fixing size of the black pressure block on the quick release; 4. Move the drill guide to the marking and drilling position on the plate and lock the quick release; 5. Punch the holes with the drill to a depth of 12-13 mm, drill 2 holes for 2 mm screws. 【Cabinet Hinge Punch Set】1*hinge drill, 1*35 mm hole saw, 1*upper link bearing, 1*depth locating ring, 2*wrenches, 1*2 mm drill bit, 1*hex wrench. You can use the wrench to adjust the press plate to the desired thickness. The hinge jig is made of high-quality aluminum alloy for strength, precise positioning, and long service life. The hinge adjustment tool fits 35 mm hinges and 26 mm hinges, allowing you to easily install multiple cabinet doors. The holes are precisely positioned and it is easy to drill new holes without cracks or breaks. Features Made of aluminum for long service life, precise manufacturing, accurate locking, and easy use. The drill bushing has been upgraded and replaced with a more wear-resistant bearing, which greatly reduces wear and is less prone to jamming, making hole opening smoother. Easy to install, no need for experts. Adjustable pressure plate: The thickness of the fixed plate can be 15-25 mm. Widely applicable to most common hinges: The distance between the 35 mm hole and the edge can be adjusted to 3-7 mm, suitable for most common hinges. Specifications Material: Aluminum alloy Product size: 75*118mm Quantity: 1 set Package 1*Hinge Drill 1*35mm Hole Opening Tool 1*Upper Link Bearing 1*Depth Positioning Bushing 2*Wrenches 1*2mm Drill Bit 1*Hex Wrench Tips 1. All product data is measured by hand, there may be an error of 1-2 cm. 2. The first time you use it, it is recommended to try a few times, you will find the trick to using it. 3. When in use or idle, it is recommended to add some lubricant inside the bearing to reduce the loss of the hinge jig and prevent rust.
