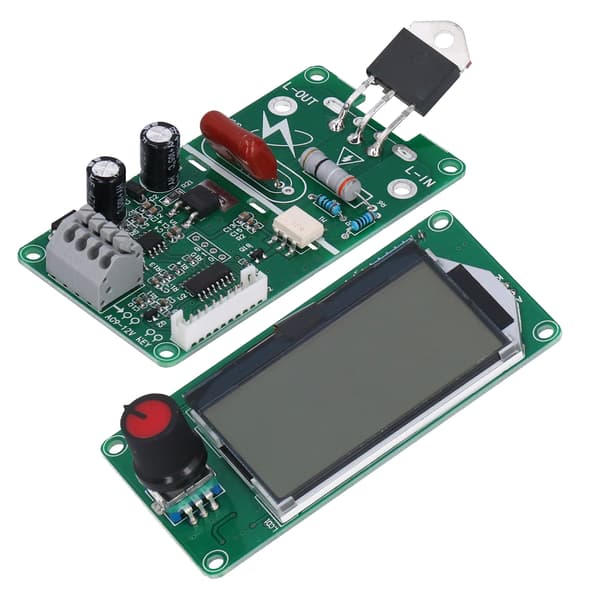

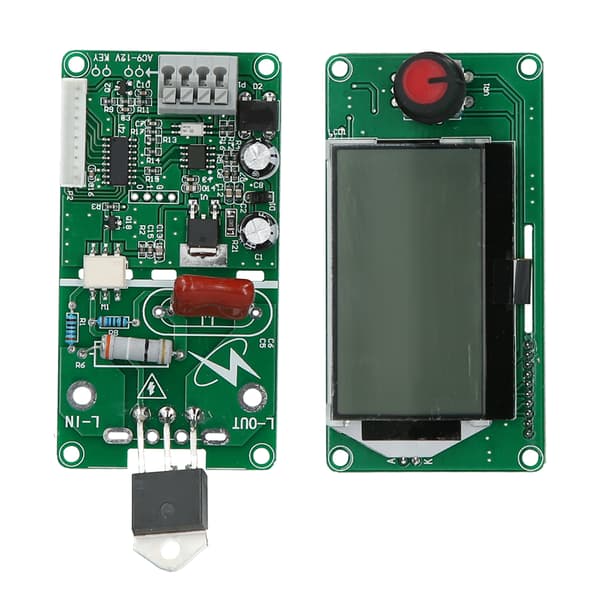

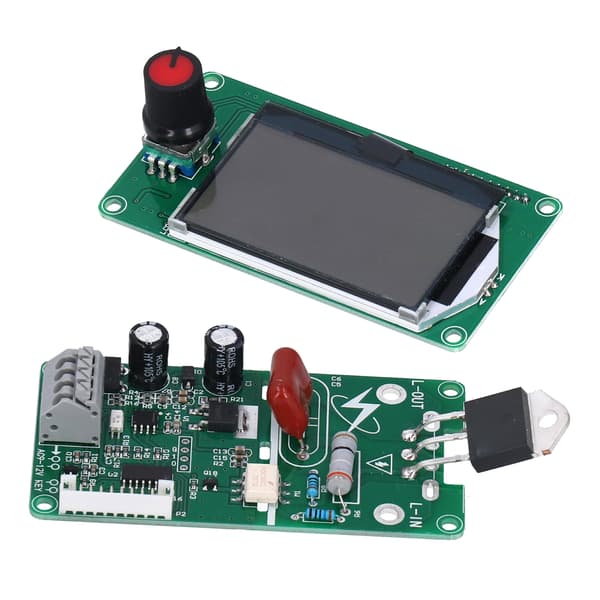

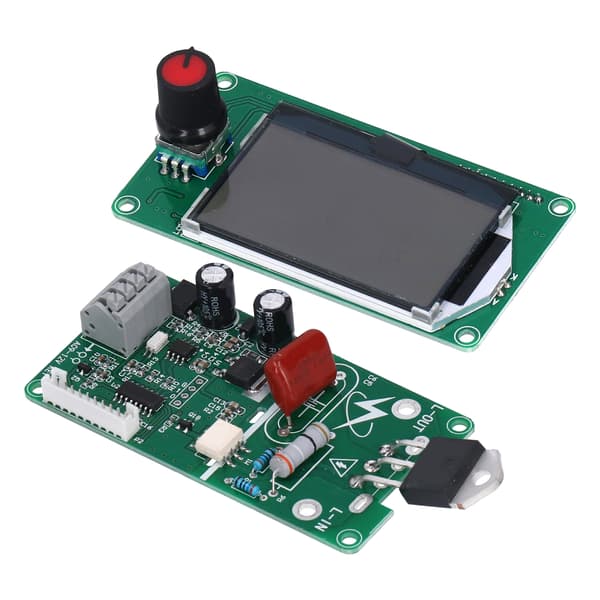

1. It can be set to save the last operation. The module is a dual pulse trigger. Turn off any set of trigger time to change the dual pulse to single pulse trigger. 2. 12864 visual display of multiple sets of data, intuitive and convenient operation, single encoder parameter adjustment can make the operation simple and fast. 3. Using mains compensation, the output of the compensation can be automatically adjusted according to the change of the power supply, and the voltage can be displayed for about 1 second when triggered, so that the effective heat of the welding is consistent with the welding parameters, and the welding spot is uniform. 4. It has the function of counting 0-9999 welds, and has 5 sets of sample storage parameters, which can be stored even if the power is turned off. You can see the number of welds at a glance. 5. The input time is 0-99 cycles (for example, 1 cycle is 20ms, the adjustment value is 50, that is, the welding time is 1 second.), the stop time between two welds is 0-99 cycles (1 cycle is 20ms For example, the interval value is 50, which is an interval of 1 second.) Adjustable. The welding strength is adjustable from 30% to 99%. 6. The module can isolate strong and weak currents through optical coupling, and has designed a reliable zero-crossing detection and voltage detection circuit to ensure the accurate phase shift of the silicon controlled rectifier (SCR). It can be compatible with 40A-100A bidirectional silicon controlled rectifier (SCR). 7. Scope of application, 1. DIY or simple battery welding machine development welding. 2. Weld a single cell or battery pack.
Display: 12864 LCD screen

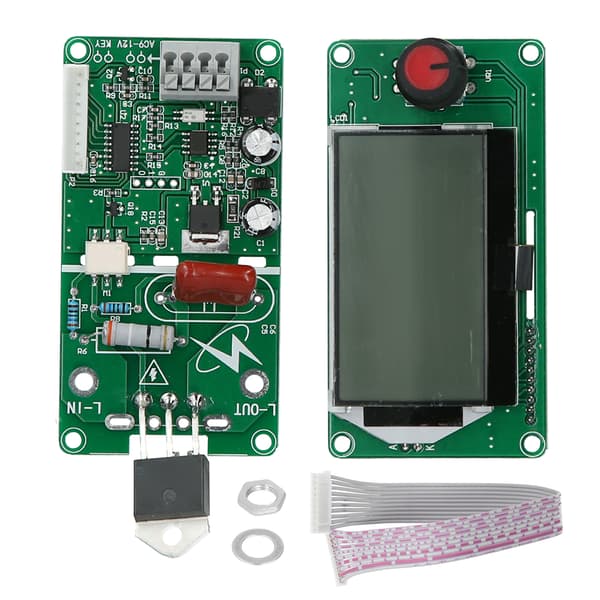

1 x Motherboard
1 x Display board
1 x Cable
1 x Screw cap
1 x Gasket
