Description

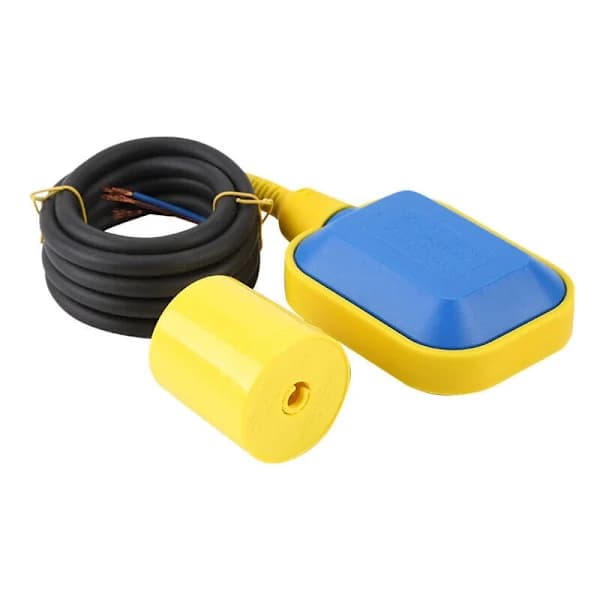

The float is a hollow float that works on the principle of buoyancy.

This hollow float is lifted and pushed upwards by the rising liquid until, when it reaches an angle of 50° relative to the horizontal, it triggers a start. The float can be attached by screwing it to the side or, if you have an open tank, by placing it on top of the liquid. The switching point can be defined very precisely thanks to the ballast weight with which it is equipped as standard. Suitable for almost all pumps.

The float is very suitable for controlling the filling level of all liquids that do not attack its material, regardless of the degree of contamination. You can use this float as a full or empty indicator, to control pumps or valves or other alarm signals.

If your pump has a power of more than 1.1 kW, you must place a standard contactor or power relay upstream, which is sold commercially. A 380/400V three-phase pump can be operated with a 380V power contactor.

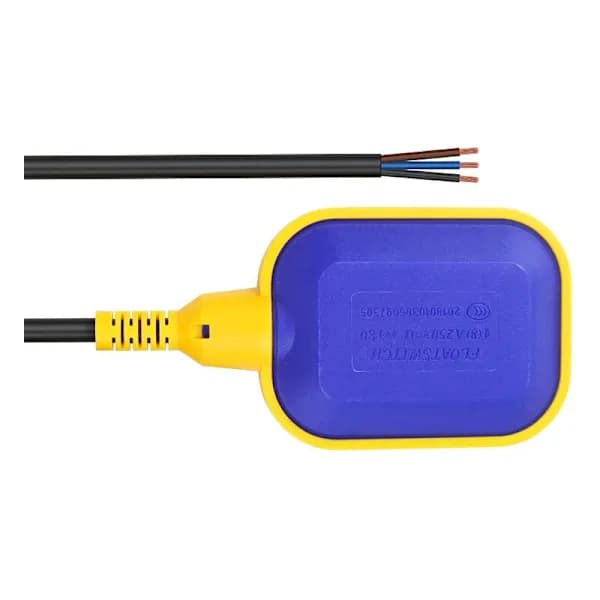

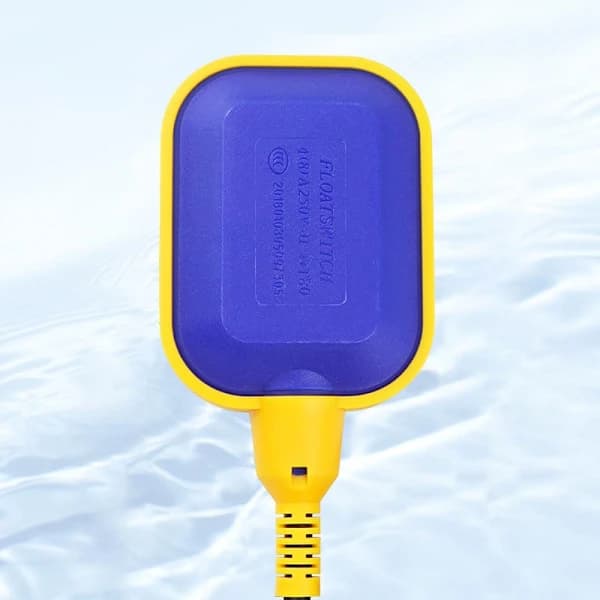

5m 220V 4A Level Control for Submersible Pump
