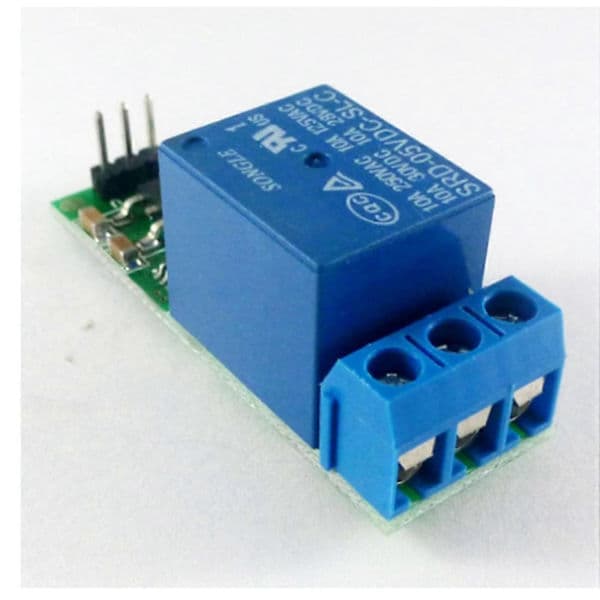

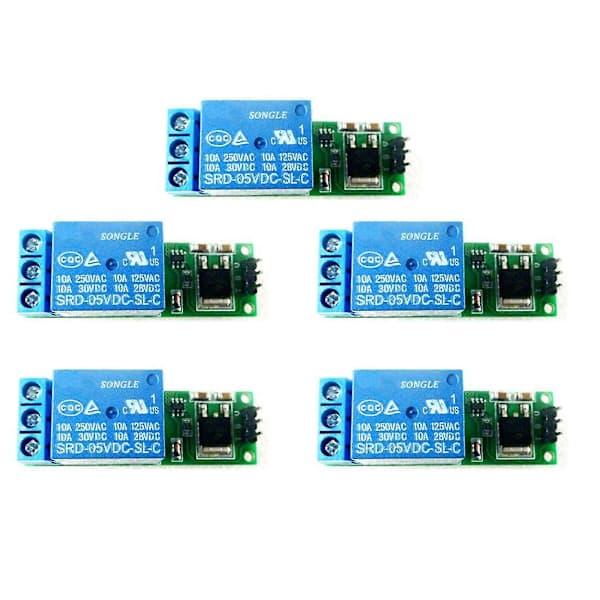

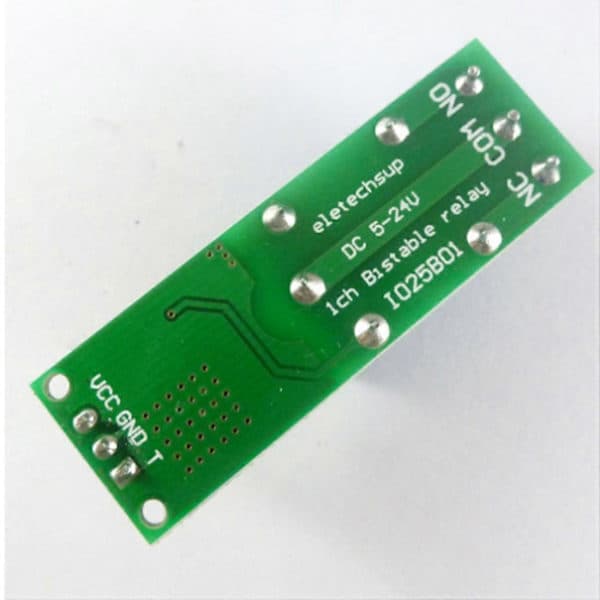

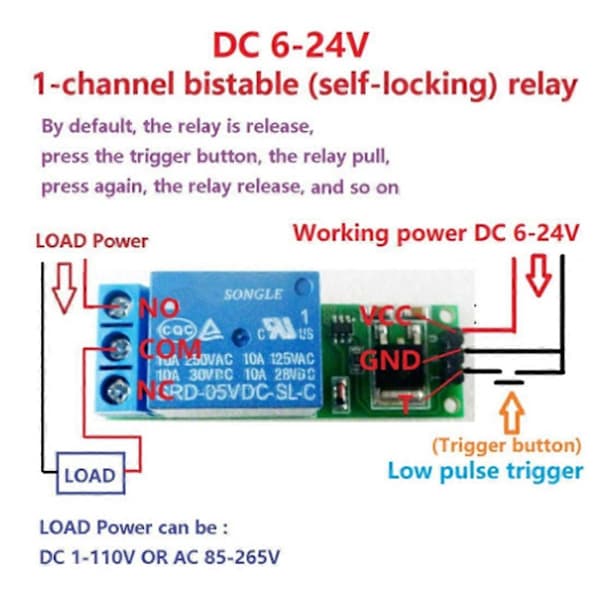

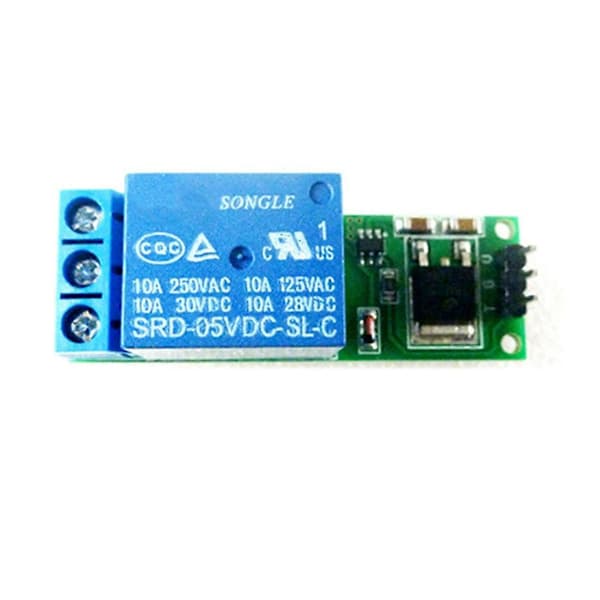

Working voltage: DC 6-24VWorking current: 60-70MAStandby current: 1UALoad current: AC 250V/10A, DC 30V/10ATrigger mode: Low pulse triggerThis is a bistable (self-locking) relay module, trigger once, the relay pulls (and holds); trigger again, the relay releases (and holds)Module interface:1.VCC: positive power supply (VCC)2.GND: negative power supply (GND)3.T: Low pulse triggerRelay outputs:1.NO: normally open relay interface2.COM: Common interface relay3.NC: normally closed relay interfaceUSAGE: By default, the relay is released, press the trigger button, the relay pulls, press again, the relay releases, the third press, the relay pulls, and so onTypical applications:MCU development boardAutomotive electronicsIndustrial equipmentEmergency lightingSmart homeToy carMotorLEDSize: 4.8x1.1cm/1.89x0.43inchColor: As shownMaterial: PC+MetalPackage contents:5x 6-24V Flip-Flop Latch RelayOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
