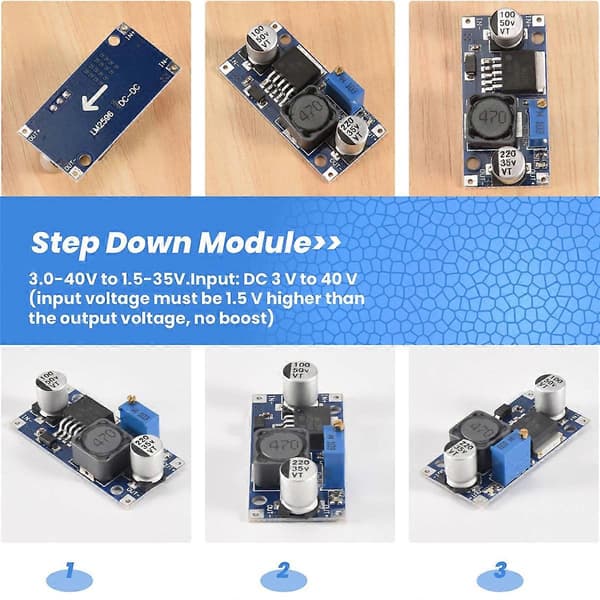

Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than output voltage, no boost)

Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A

Features: uses SANYO solid-state capacitors, 36 u thickening circuit board, high-Q inductance with LED indicator output



Quantity: 6 pieces

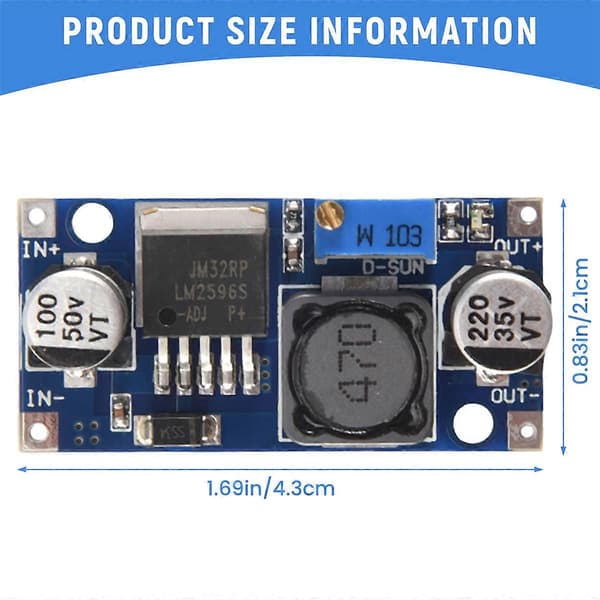

Size: 43x21x14mm

Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor the voltage with a multimeter to get the desired voltage (The factory has tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts to decrease)

Notes:

The input and output interface cannot be reversed.

Keep it below 2.5 A and use the heat sink when working for long hours.

color:blue

Material:ABS



Package contents:

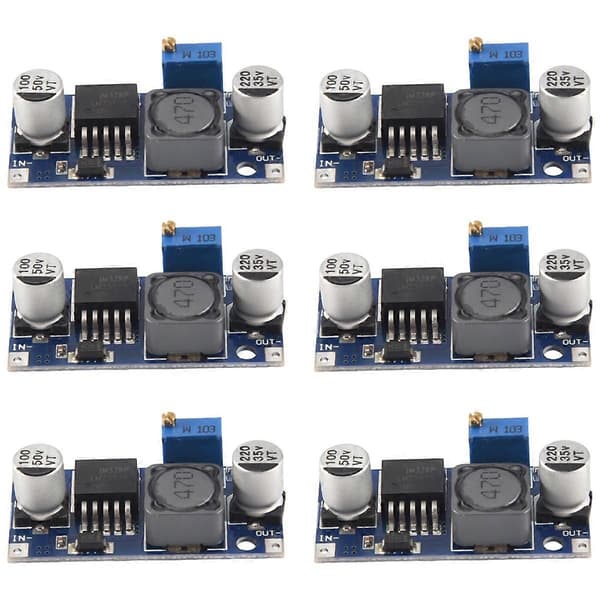

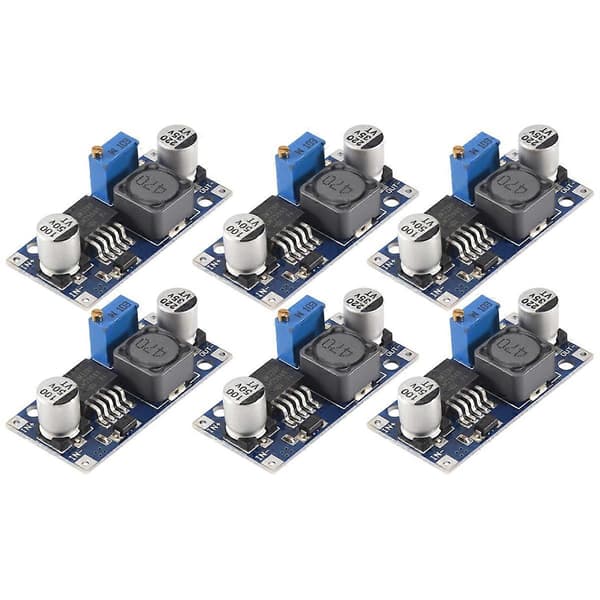

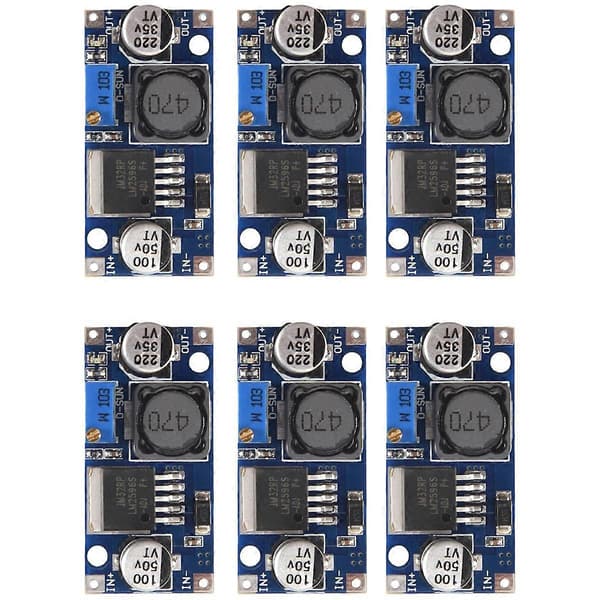

6 x LM2596 Power Supply Step Down Module



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
