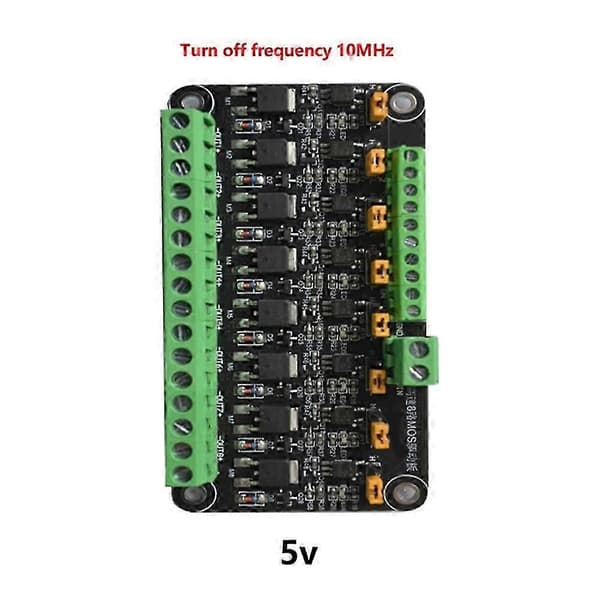

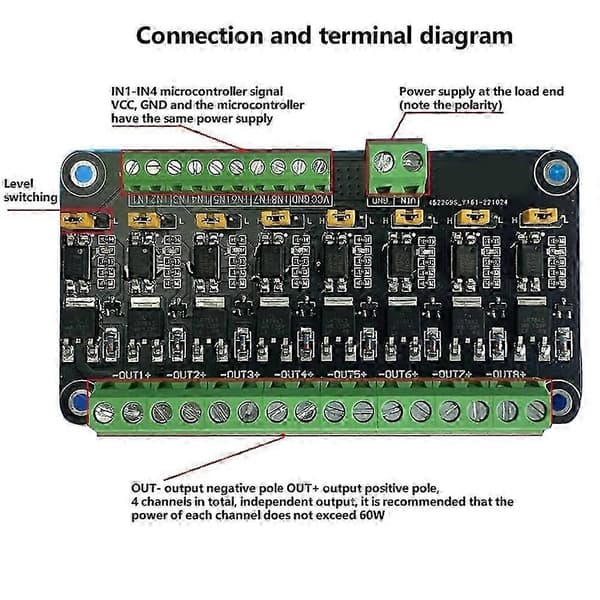

Power supply mode: DCContinuous output current: 2AInput voltage: 48VSuitable motor: DCMaximum applicable motor power: 60W. Maximum output current: 3AInterface1. VCC: Connect to the positive pole of DC 5V power supply2. GND: Connect the negative terminal of DC 5V power supply, which must be grounded together with the signal terminal3. IN1-IN8: Connect to the IO port of a microcontroller or PLC4. H/L jumper: H is high level, L is low level, and the middle is the common terminal5. VIN: Load side power supply DC positive level, GND: Load side power supply DC negative pole6. Connect the load terminals OUT1-OUT8 to the positive pole of the load deviceConnect the load terminal GND to the negative terminal of the load device1. Indicator light: The 5V version comes with an indicator light that illuminates when there is a signal2. Application scenario: The output end can control high-power DC devices such as motors, incandescent lamps, LED light strips, DC motors, micro water pump solenoid valves, etc; PWM can be input to control motor speed, brightness, etc;3. The voltage range of the control terminal is DC 5V-DC48V. Since the control board has not undergone high-power heat dissipation treatment, it is recommended that the single power does not exceed 60W;4. The control end and signal end are isolated by optocouplers, please feel free to useSpecifications: A:5V versionColor: As shownMaterial: plasticPackage Contents:1 x 8-channel MOS module
