1. The SSR-GJ series is suitable for small high-power solid-state relays, and the input control voltage is 3~5VDC. 2. Photoelectric isolation, capable of 4000V isolation voltage, zero-crossing or random conduction switch. 3. PCB type installation, SSR output, comes with extremely high surge current capability. 4. The product is very suitable for meeting the requirements of various customers in different places. 5. The 8-channel solid-state relay module has a stable structure, excellent performance, and long service life.

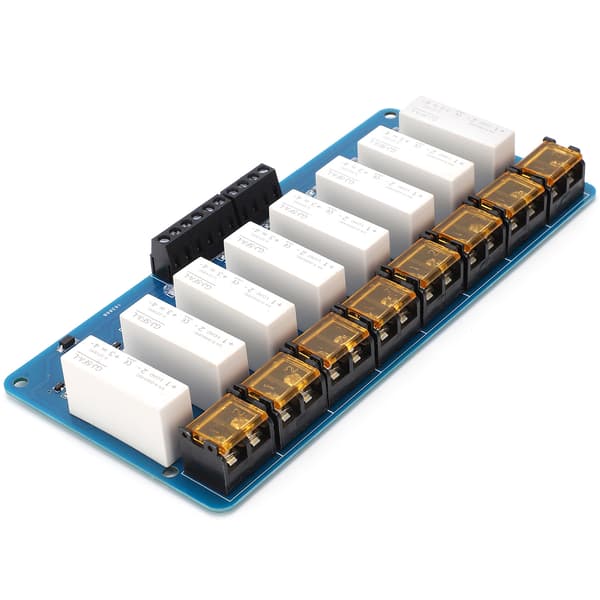

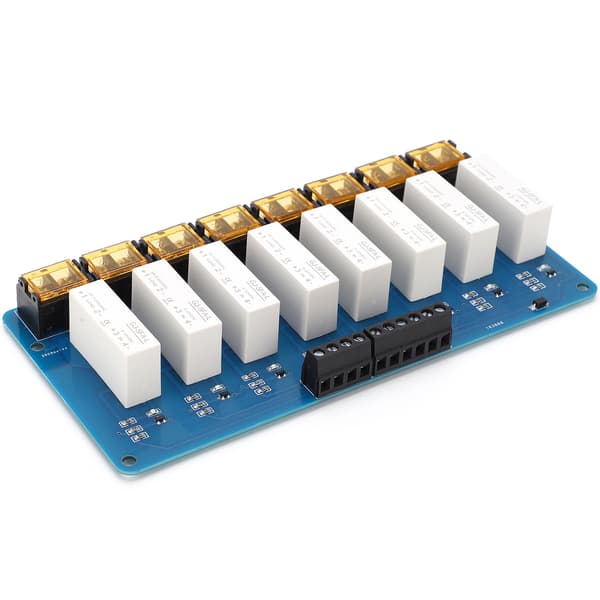

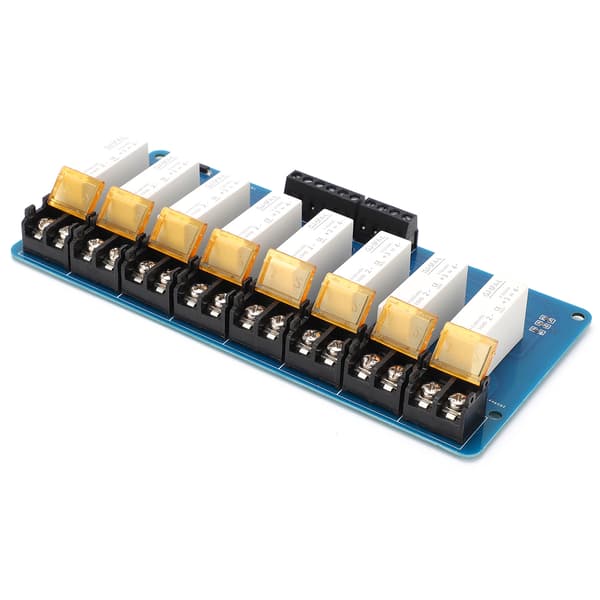

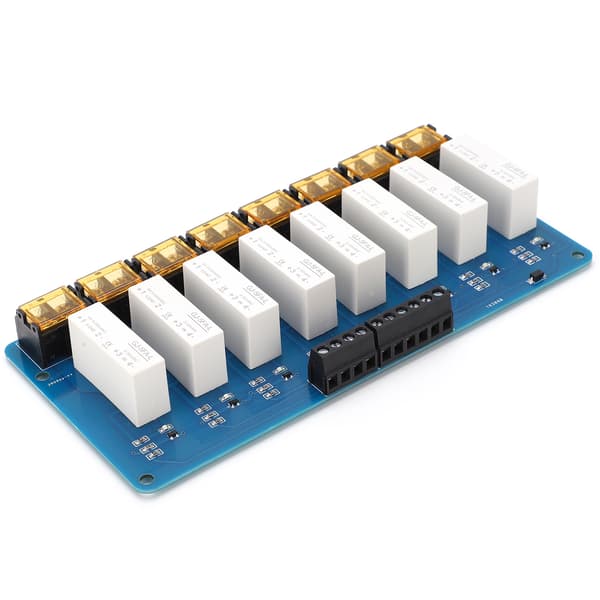

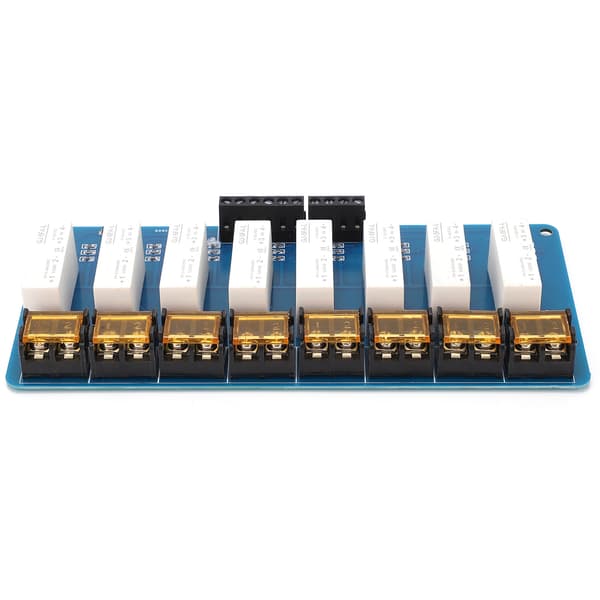

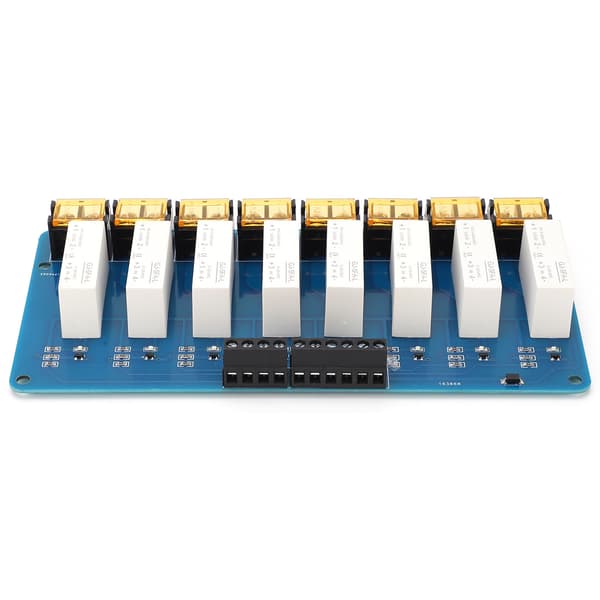

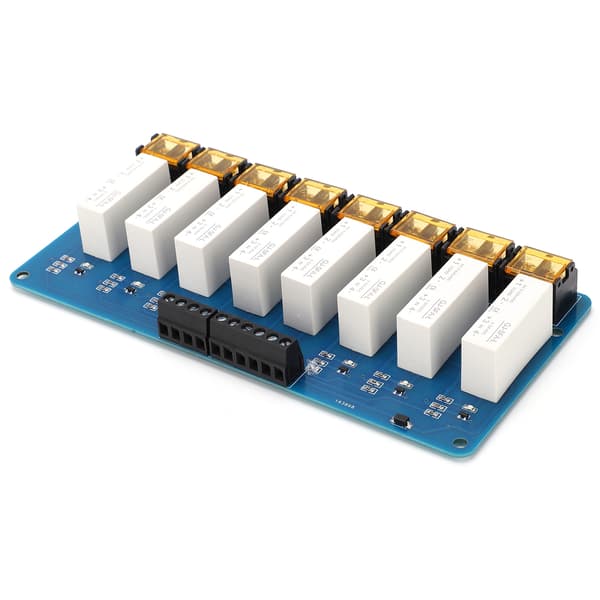

Item Type: 8-Channel Relay Module
Input Voltage Range: 3~5VDC
Ensure Turn-on Voltage: 3VDC
Ensure Turn-off Voltage: 1VDC
Input Current (typical value): 18mA
Input Current (maximum): 25mA
Reverse Polarity Voltage (DC): -5VDC
Output (load) Parameters: (TA = 2℃)
Output Voltage Range: 5~220VDC
Maximum Transient Voltage: 800Vpk
Maximum Output Current: 1mA
Maximum Output Voltage: 1.5Vrms
Maximum Load Current: 5A
Maximum Surge Current (10ms): 20 times the rated current
Minimum Power Factor: 0.5
Minimum Operating Current: 50mA
Control Panel Input: 3~5VDC
Power Input: 3~5VDC
1 x 8-Channel Relay Module
1 x User Manual
