Adapter Cable 12+8 for CHRYSLER Autel MaxiSys Pro MS908P MS906 MK908P
Description
The Chrysler 12+8 adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket diagnostic tool to only reading DTCs and viewing data. Replacement for Chrysler cable adapter programming cable 12+8 connector. 2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a Security Gateway Module or SGM. This SGM does not allow your diagnostic tool to perform bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new Chrysler 12+8 diagnostic cable allows communication with the latest models of Chrysler, Dodge, Jeep, Fiat, and Alfa vehicles.
Features
12+8 Autel cable, use with Autel MaxiSys scanner to diagnose on Chrysler Renegade Wrangler 300C after 2018 model year. The Autel 12+8 connector adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM).
High quality and durability
Plug & play, stable transmission, anti-interference. High-quality materials provide the cable with superior flexibility and durability.
How to use

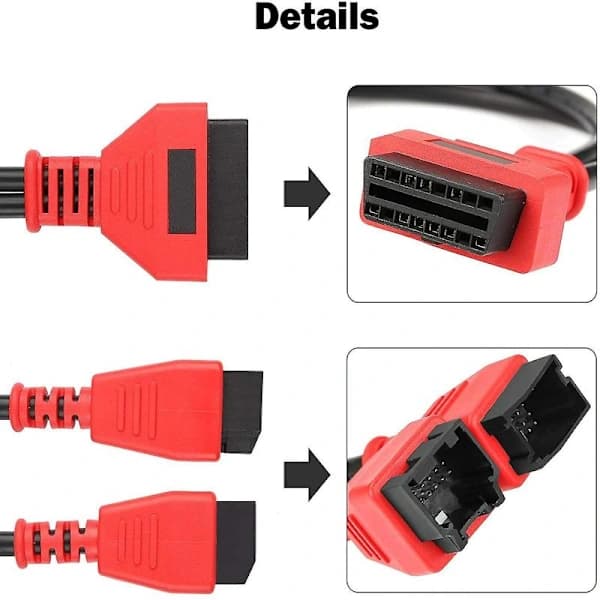

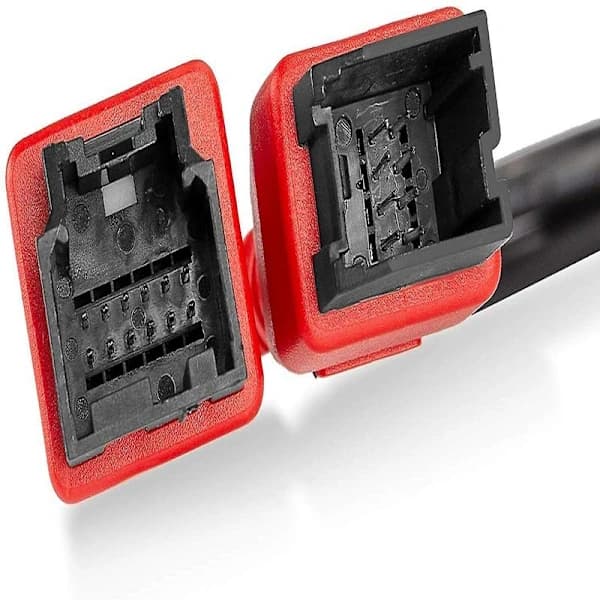

Just 3 steps to use it. First, locate and unplug the 12-pin and 8-pin connectors on the SGW module. Then connect the FCA 12+8 directly to the 12-pin and 8-pin connector (two connectors connected to the SGW) on the car. At this point, normal communication with the car can be achieved.
Suitable for

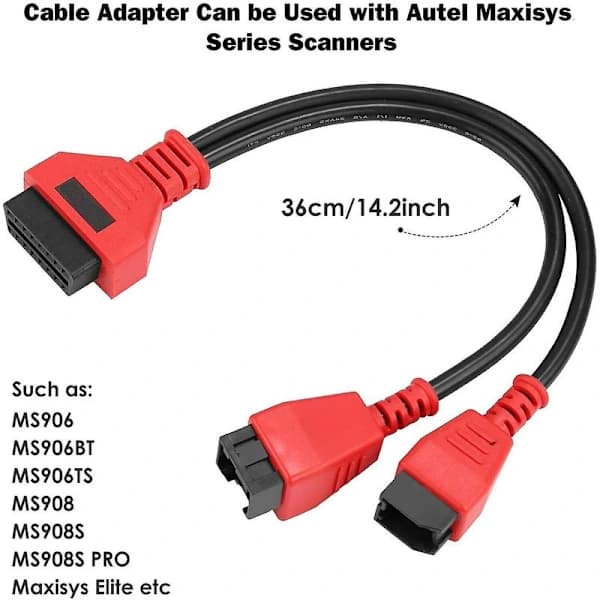

The cable adapter can be used with Autel Maxisys series scanners, e.g. MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite etc.
What is it used for
Use with Autel MaxiSys scanner to diagnose on Chrysler Jeep Renegade Wrangler 300C after 2018 model year
Most 2018 and newer FCA vehicles include a Security Gateway Module.
Perform active tests
Required to access 80% of 2018 Chrysler and Fiat vehicles
Required to access 100% of 2019 Chrysler and Fiat vehicles
Chrysler 12+8 adapter is needed on vehicles with Security Gateway
Module
2013+ RAM Promaster；2015+ Fiat 500x；2015+ RAM Promaster City；2016+ Jeep Renegade；2017+ Alfa Romeo Giulia；2017+ Jeep Compass；2017+ Jeep Cherokee；2018+ Jeep Wrangler；2018+ Ram Trucks；2018+ Dodge Durango；2018+ Jeep Wrangler (JL body only, not JK)；2018+ Dodge Journey；2018+ Jeep Grand Cherokee；2018+ Chrysler Pacifica；2018+ Chrysler 300；2018+ Dodge Charger；2018+ Dodge Challenger2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles；2020+ ALL FCA vehicles；
Package list
1 pc x Cable adapter
