1、Independent Contact Output: Independent contact output, suitable for direct control of various loads; wireless encoding technology (space to encode), non-directional, and switches do not interfere with each other. 2、Working Mode: Self-locking, interlocking, jogging, you can freely adjust, you can realize one control multiple or multiple control one. DC stabilized power supply over 500mA is recommended. 3、Withstand 10A Current: Each channel of the receiving board can withstand 10A current and can directly drive DC/AC loads. Each relay has a set of normally open (normally closed) contacts. 4、Suitable Power Load: To extend the service life, it is not recommended to control high-power loads. When controlling 220V, each control is less than 500W, and when controlling 12V, each control is less than 50W. 5、Wide Applications: Single channel remote control switch, suitable for electrical control circuits for anti-theft alarms, remote control of electric doors and windows, signal control, industrial control, lifting equipment, etc.

Item Type: Wireless Remote Control Switch
Material: ABS+PCB
Model: AK-RKO1SY
Working Voltage: DC12V
Maximum Load: ≤10A
Standby Power Consumption: <15mA
Signal Sensitivity: -105dBm
Wireless Frequency: 433Hz
Modulation Method: ASK
Remote Control Distance: According to the power of the remote control
Built-in Button Batteries in the Remote Control: 2 x CR2016(75mAh) (included)

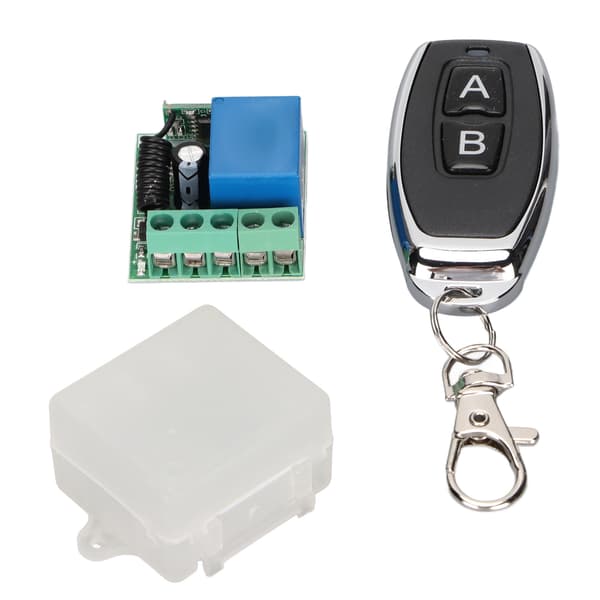

1 x Relay

1 x Plastic Box

1 x Remote Control
