1、Screw Crimping Method: The socket for solderless installation adopts the screw crimping method, and the installation can be completed with only a screwdriver, which is simple and fast. 2、Waterproof Silicone Cover: There is a waterproof silicone cover at the line of the shell, which is tight and waterproof. A variety of specifications and cores are available to meet the needs of use. 3、Solid Pins: The plug and socket have solid pins, which are resistant to insertion and removal; which are gold-plated with pure copper, and are resistant to oxidation and have a long service life. 4、PA66 PA6 Material: The waterproof aviation connector shell is made of PA66 and PA6 materials, which have good corrosion resistance and flexibility, and will not cause the safety hazard of cracking due to low temperature. 5、Application: The plug and socket are widely used for communication equipment, instruments, computers, program-controlled machines, alarms, etc., and electronic bridging equipment. 6、Basic Specifications: 250V 10A 3-core LP16 solderless flange type IP68, waterproof aviation connector.

Item Type: AviationPlugSocket
Material: PA66, PPS, Silicone, Copper
Uses: Widely used in communication equipment, instrumentation, computers, program-controlled machines, alarms, etc., and electronic bridging equipment
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (High temperature resistant 220℃)
Contact Material: Copper (Gold Plated)
Connection Method: Soldering (If solder paste is used, it must be cleaned with alcohol)
Connection Method: Threaded connection
Head Size: Approx. 16mm / 0.63in
Insulation Resistance: 2000MΩ
Number of Cores: 3 cores
Contact Diameter: Approx. 1.8mm / 0.07in
Copper Pin Applicable Cable: Approx. 0.2-2.5m㎡
Applicable Current: 10A
Applicable Voltage: 250V
Applicable Cables for Shell: Φ6-12m㎡
Applicable Panel Thickness: Approx. 0.1-4mm / 0.004-0.16in
Installation Hole Distance: Approx. 26mm / 1.02in
Mating Times: More than 500 times
Operating Temperature Range: -25℃-85℃
Tightness: Complies with IP68

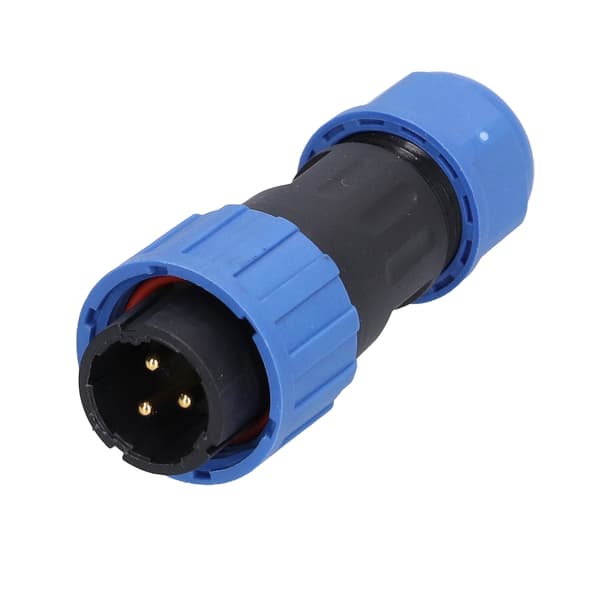

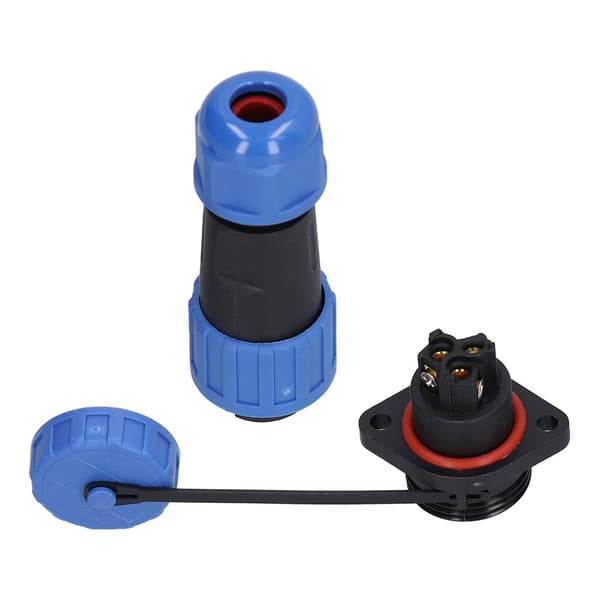

1 x Male Plug

1 x Female Socket
