1. When the battery voltage is as low as 10.5V to 11.5V, the power control board will automatically start charging
2. When the voltage is as high as 14.4V to 14.8V, the product will cut off the power
3. The red indicator light is on during charging. When the battery is fully charged, the relay closes and the 220V input terminal is disconnected, the indicator light goes out to save energy

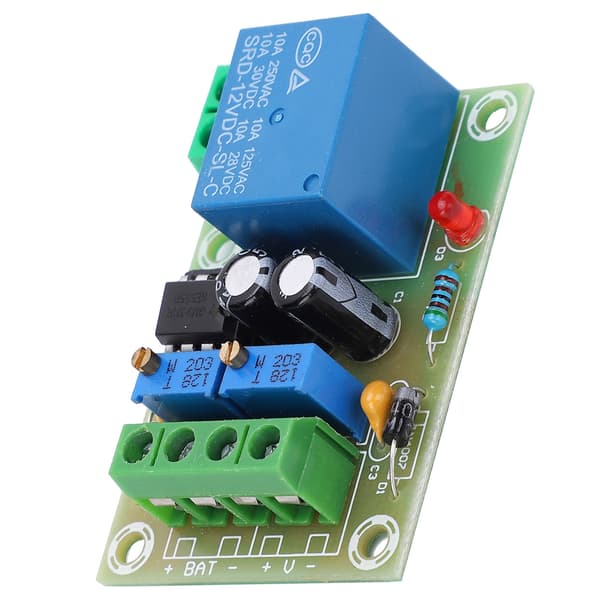

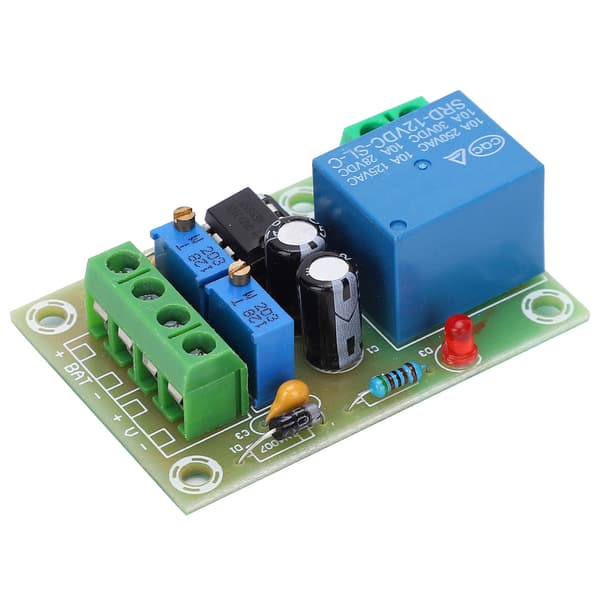

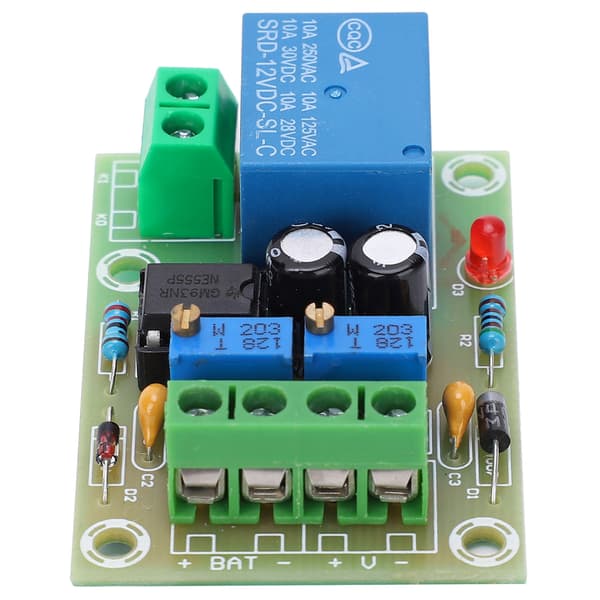

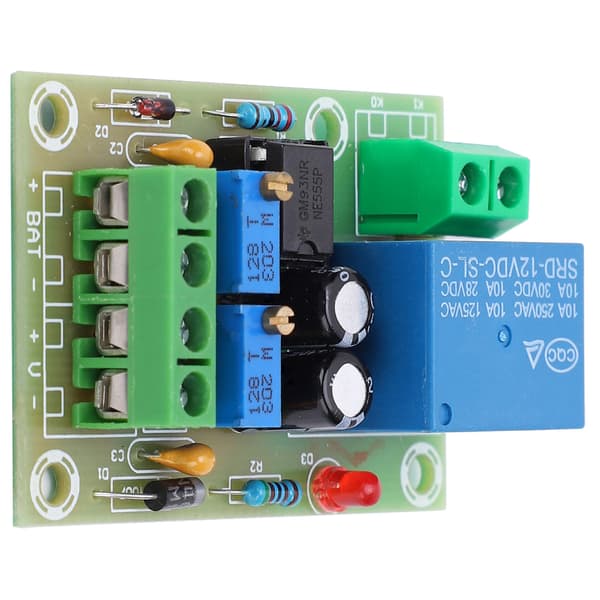

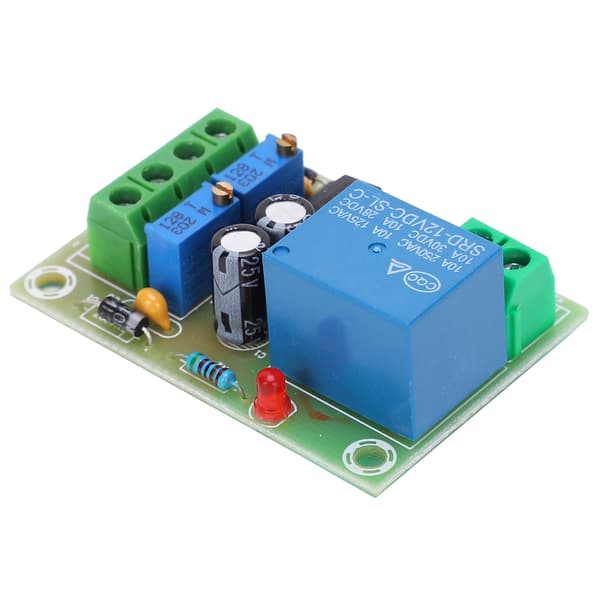

4. This is a battery charging control board, the 12V battery is fully charged and disconnected to prevent overcharging
5. The control module has stable structure, excellent performance and long service life
Item Type: Battery Charging Control ModuleModel: XH-M601Charging Method: 12V batteryAdjustment: VR1: When the battery voltage reaches 14.4V to 14.8V, the charger will stop charging and the relay closes. (shutdown voltage setting: CW adjustment is lower, CCW adjustment is higher.)VR2: When the battery voltage drops to 10.5V to 11.5V, the charger will start charging and the relay opens. (start voltage setting: turn down CW, turn up CCW.)Feature: Turn-on voltage: 10.5V-11.5VDisconnect voltage: 14.4V-14.8VWiring: You need to connect the 220V wire to the COM terminal of the relay and connect the OFF terminal (output) to the charger. The charger must use a full-bridge rectifier output.The DC output voltage is about 13.8V-14.4V
1 x Battery Charging Control Module
