Description:

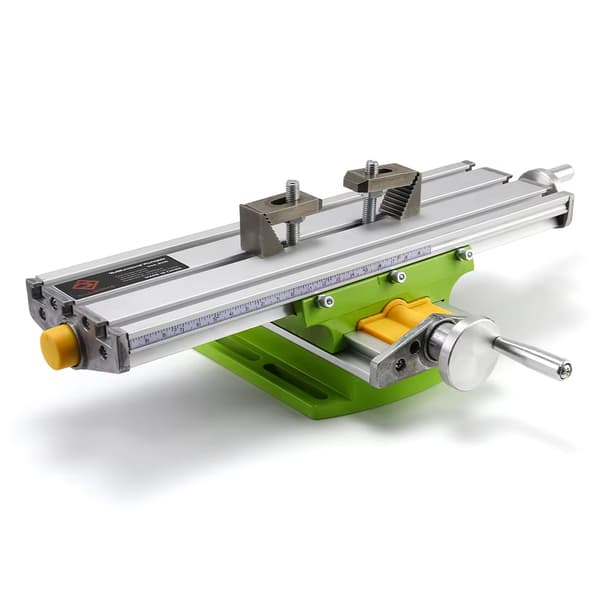

BG6330 Work Table Mini precision multifunctional milling machine bench drill vise work table
BG6330 is an improvement of BG6300, it uses a stronger aluminum alloy material to make the end cap, which can make the movement more flexible.
The base and the flexible table have a more reinforced rigid structure than the 6300, and the screw rod (M10x2) is stronger than before, so it can be used for higher usage standards.
Specification:
Model: BG6330
Table size: 330*95mm
Adjustable for X-direction: 190 mm
Adjustment for Y-direction: 67 mm
X Y-axis scale adjustment:
1 turn = 1.5 mm
Subdivision marks = 0.05 mm
The lead screws are M10x2

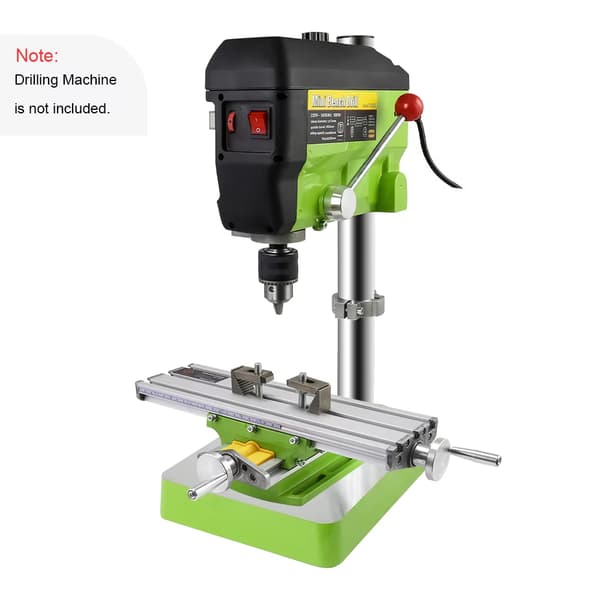

Applicable for: Mini drill series and drill stand and other suitable machines
Features:
The table is suitable for mini spindle and drill stand series.
It can also be applied to other suitable machines.

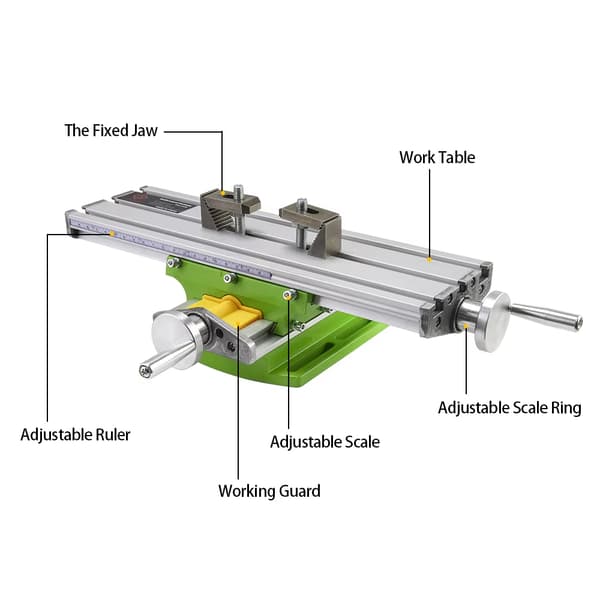

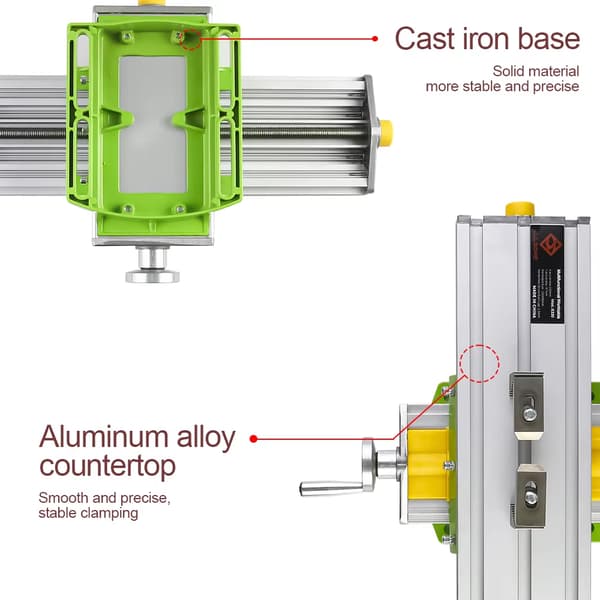

The work table consists of several adjustable aluminum alloy dovetail grooves, which can ensure minimal clearance and guarantee precision.
The work table has three T-shaped slots, standard size 15x8x6mm.
The scale is in front of the mobile positioning.
The zero adjustment handwheel rotates one turn = 1.5 mm. One grid = 0.05 mm.
The X Y-axis distance is 190 mm, the stroke is 67 mm.

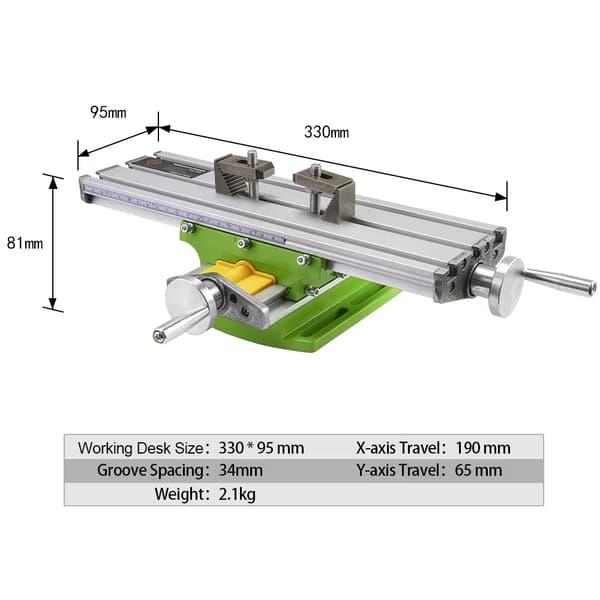

The work table size is 330 x 95 mm and the height is 80 mm, including two work clamps.

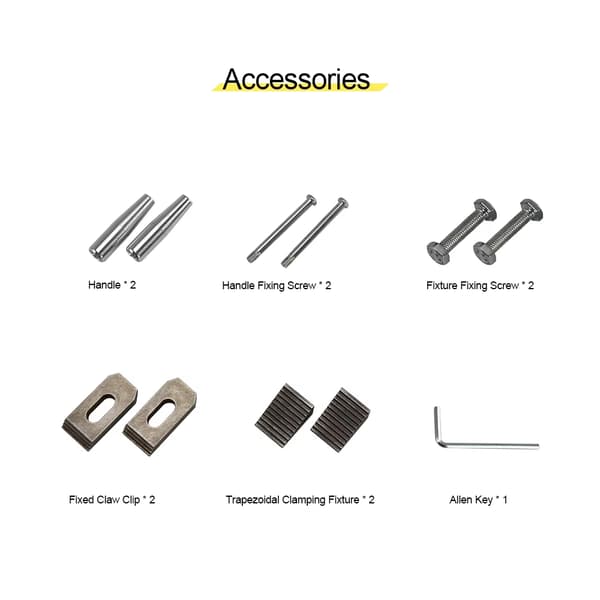

Package included:
1 x mini multifunctional work table BG6330
Note:
1. Please allow a small error due to manual measurement. Please make sure you do not mind before you bid.
2. The color may be different depending on screen differences, please understand.
