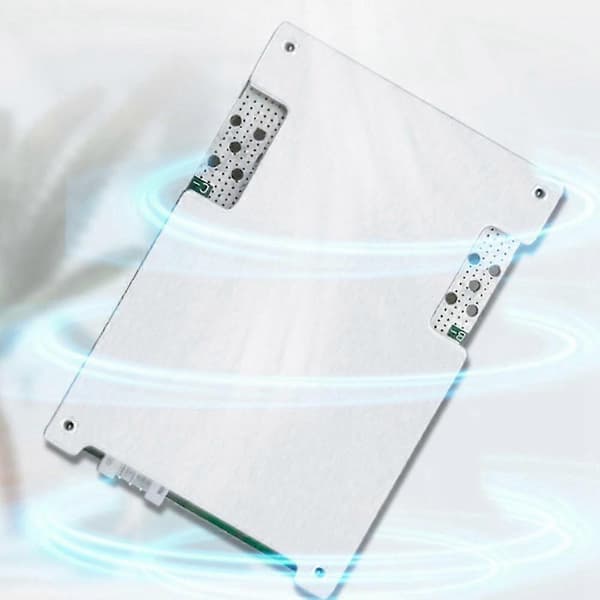

Bms 4s 100a 14.6v Lifepo4 Battery Pack Load Balancing Board Common Port Overload Protection For Car

-17 %

Bms 4s 100a 14.6v Lifepo4 Battery Pack Load Balancing Board Common Port Overload Protection For Car

Name: Bms 4s 100a 14.6v Lifepo4 Battery Pack Load Balancing Board Common Port Overload Protection For Car
SKU: ZS-JJ-0707008560
Price: 299 SEK
Availability: InStock

299 kr

Tidigare lägsta pris:

359 kr

I lager

Tis, 4 aug - mån, 10 aug

Säker betalning

Nöjd kund-löfte

30 dagars öppet köp

Produktbeskrivning

USES LITHIUM CELL MANAGEMENT FOR FAST AND SAFE CHARGING--Uses intelligent IC for lithium cell management for fast and safe charging. BALANCED CHARGING EXTENDS BATTERY LIFE--With balanced charging to balance the characteristics of each battery in the battery pack and extend battery life. MULTIPLE OVERLOAD PROTECTIONS ENSURE SAFE USE--Provides a variety of protection functions including overcharge, overdischarge, short circuit, and temperature protection. EQUIPPED WITH ALUMINUM FLANGE ENSURES FAST HEAT DISSIPATION--Equipped with thickened aluminum flange to achieve fast heat dissipation. MANY TESTS ENSURE HIGH QUALITY--This product has undergone load and aging tests for quality assurance. Discharge current: 100A. Charging current (same port): less than or equal to 30A. Main circuit conduction internal resistance: less than or equal to 20MQ. Discharge overcurrent protection: 200 +/- 50A. Overcharge protection: Detection voltage: 3.65+0.025V. Detection delay: 1000 +/- 500MS. Release voltage: 3.5+0.05V. Overdischarge voltage protection: Detection voltage: 2.35 +/- 0.1V. Detection delay: 1000 +/- 500MS. Release voltage: 2.5 +/- 0.1V. Balance voltage: Detection voltage: 3.6 +/- 0.025V. Detection delay: 100 +/- 50Ms. Balance current: 36 +/- 5A. Discharge overcurrent protection: Detection voltage: 100MV. Detection delay: 1000 +/- 500Ms. Current protection: 200 +/- 50A. Short circuit protection: Trigger condition: external short circuit. Detection delay: 300Us. Release condition: disconnect the load. Temperature control protection: Charging working temperature: none. Discharge working temperature: none. Release condition: recovery within operating temperature. Self-consumption: Working current consumption: less than or equal to 35. Power consumption during sleep and overdischarge: 10UA. Operating temperature range: -30~+80. Color: silver. Material: ABS+metal. Size: 80x55x1.6mm. Package contents: 1 x bms battery charging protection board kit. Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
