Type: ternary/7 strings/24V
Wiring method: same port
Working current consumption: less than or equal to 40uA
Main circuit conduction internal resistance: less than or equal to 10mohm
Temperature range: -40 to +80℃

Wiring disconnection protection: yes
Product appearance size: 125X38X4MM
Discharge
Single battery over-discharge voltage: 2.7V±0.08V
Single battery over-discharge recovery voltage: 3.0V±0.08V
Over-discharge delay: 0.5 S-1.0 S
Instantaneous protection current 30A version: 65A
Continuous protection current 30A version: 30A
Overcurrent recovery conditions: load recovery or disconnect load
Short circuit recovery conditions: load recovery or disconnect load
Charging
Single battery overcharge voltage: 4.25V ± 0.025V
Single battery overcharge recovery voltage: 4.15V ± 0.025V
Overcharge delay: 0.5 S-1.0 S
Instantaneous protection current 30A version: 30A
Continuous charging current 30A version: 25A
Charger voltage: 30V (recommended)
Balanced
Balancing voltage: 4.125 V ± 0.025 V
Balancing current: 40MA (maximum)
Activation method
Load activation
B and P wires can be short-circuited once
Color: as shown
Material: PC+Metal

Package Contents:

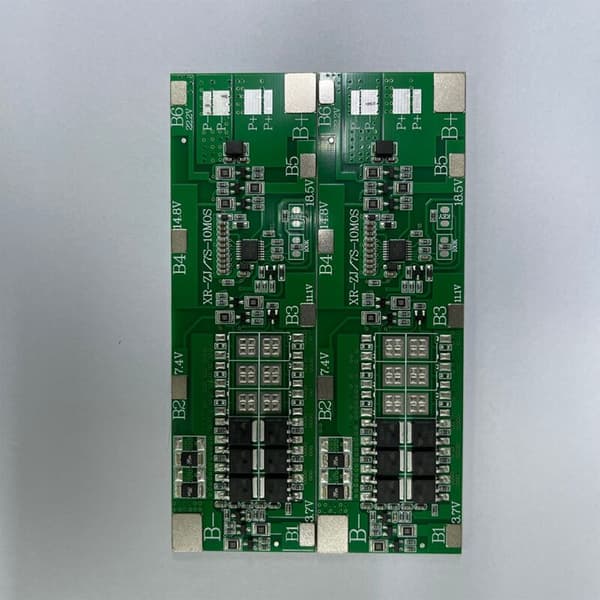

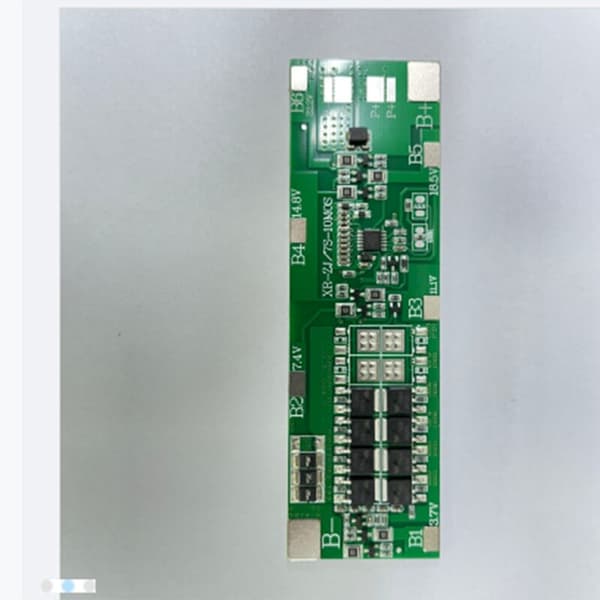

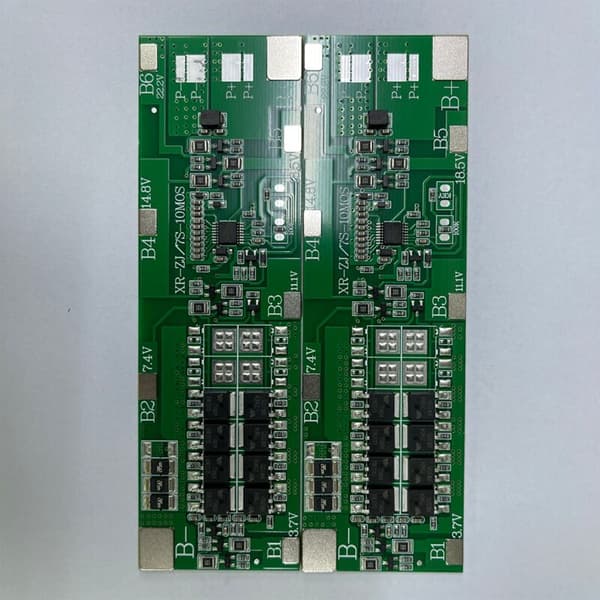

1 x Protection Board

Only the above package content, other products are not included.
