1. Motor Design: This product uses 4-pole high-torque rotor designs, with strong torque and stable output power; It uses CNC machining of front and rear aluminum covers and comes with copper wire coils that can withstand high temperatures. 2. Product Quality: The motor is made of aluminum alloy and plastic materials, which is durable and not easy to wear out; It also comes with a stainless steel output shaft and bearings, which improves product durability. 3. Multiple Functions: This product has multiple protection functions, such as low-pressure cut-off protection, overheating protection, and throttle signal loss protection. 4. Suitable for: This motor can easily change the internal timing, making the electrical adjustment suitable for various motors; It is suitable for various RC tires and tracks. 5. Product Features: The product components are waterproof and dustproof; Its resistive current capacity is strong and its heat dissipation is excellent; The electrically adjustable programming card inside the package can be DIY programmed for electrical adjustment

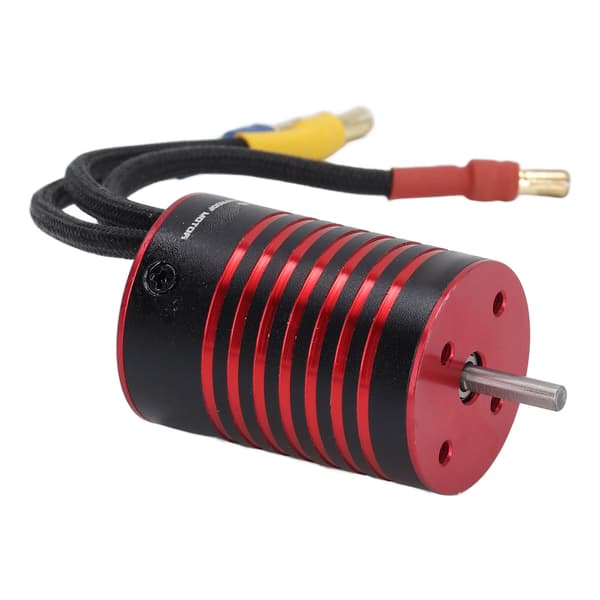

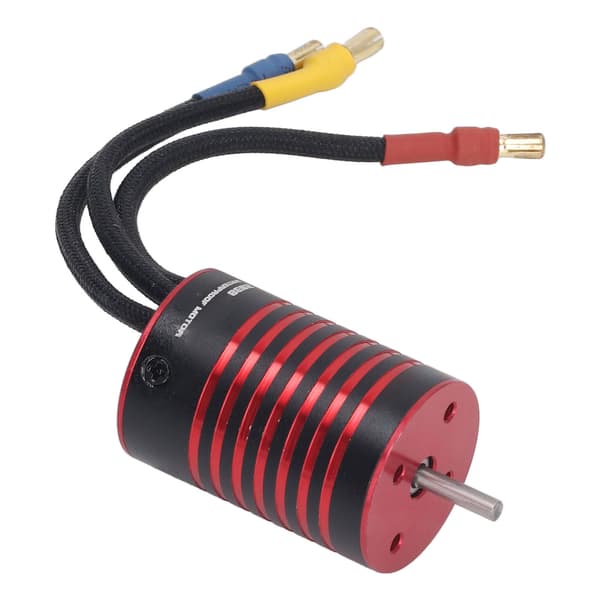

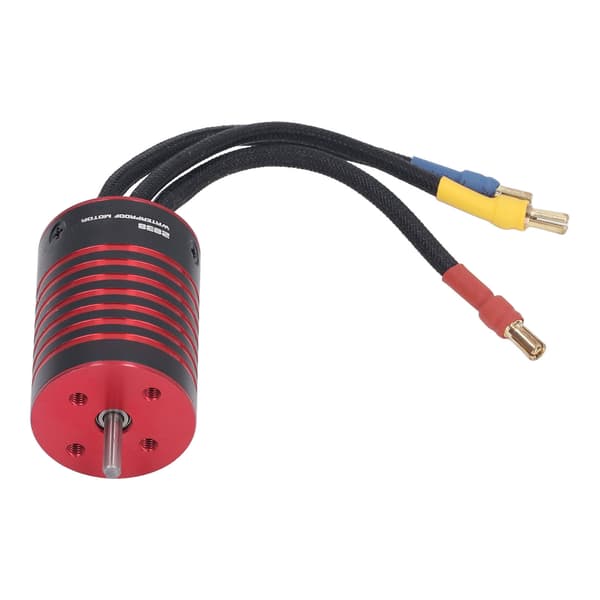

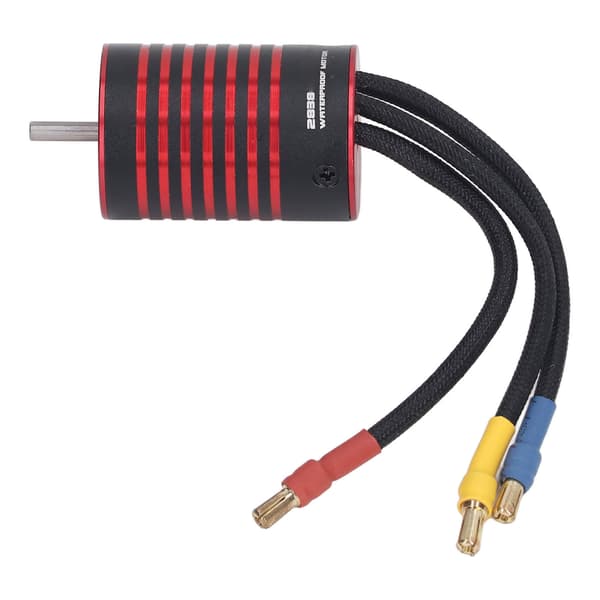

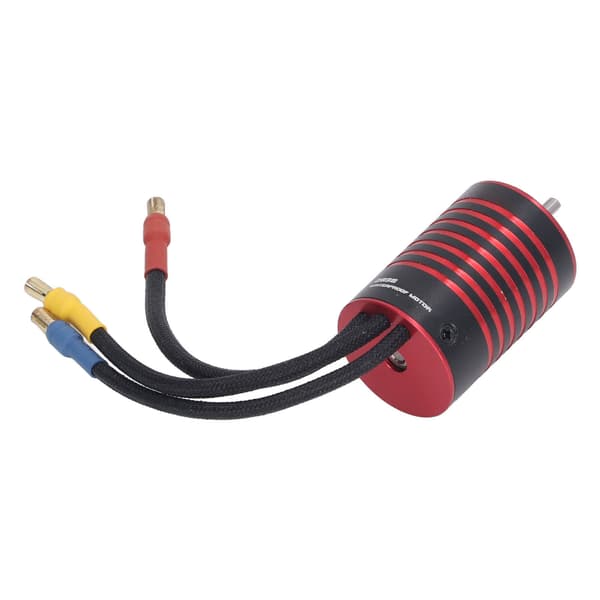

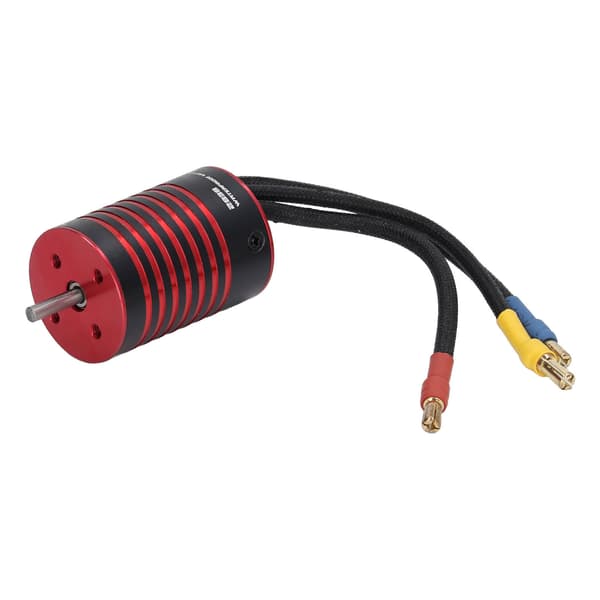

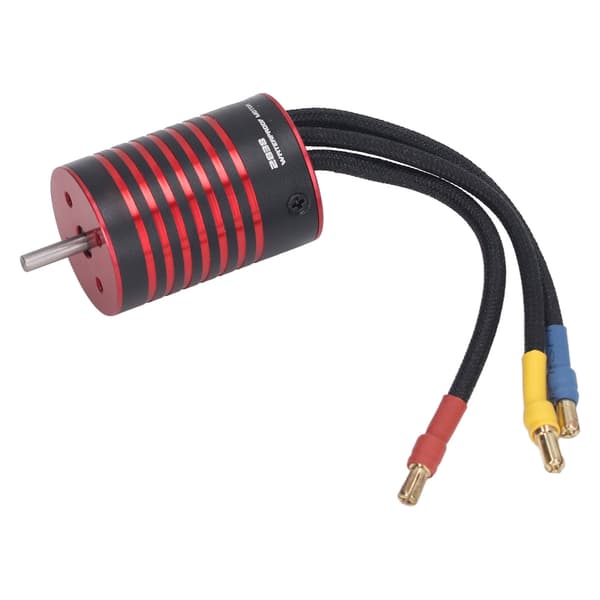

Item Type: 2838 Brushless Motor Kit
Weight: 185.00g/6.53oz
Motor Parameters
Material: Aluminum alloy, plastic
Color: Red
Product Size: Approx. 28x40mm / 1.1x1.6in (excluding cables and shafts)
Watts: 600
Maximum Speed: 50000
Maximum Voltage:<9V
Maximum Current: 68A
Shaft Diameter: 3.175mm/0.13in
Shaft Length: 13mm/0.51in
Connector: 3.5mm/0.14in gold banana head
ESC Parameters
Continuous Current: 35A
Peak Current: 120A (10 seconds)
Suitable Batteries (excluding): 2 to 3 cells Lipo, 4 to 9 cells NiMH
Electrical Adjustment Size: Approx. 40x35x20.5mm / 1.6x1.4x0.8in (excluding cables)
Motor Connector: 3.5mm
.wang-edit-text{
font-family:'Arial' !important;
}
.wang-edit-text table {
border-top: 1px solid #000;
border-left: 1px solid #000;
}
.wang-edit-text table td,
.wang-edit-text table th {
border-bottom: 1px solid #000;
border-right: 1px solid #000;
padding: 3px 5px;
}
.wang-edit-text table th {
text-align: center;
}

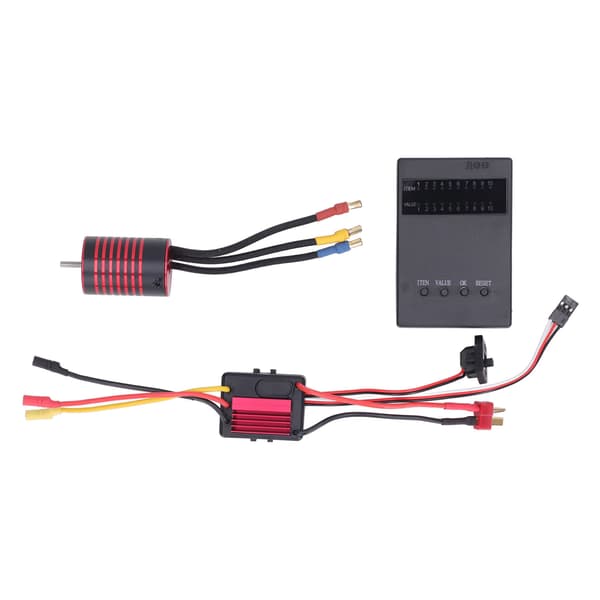

1 x Motor

1 x ESC

1 x Programming Card
