Description

Material: Copper

Photo color

for Raspberry Pi Zero W/Zero/ Raspberry Pi 3 Model B /4B with the cable for it.

5MP Omnivision 5647 Camera Module Why choose Aokin Camera Module for Raspberry Pi

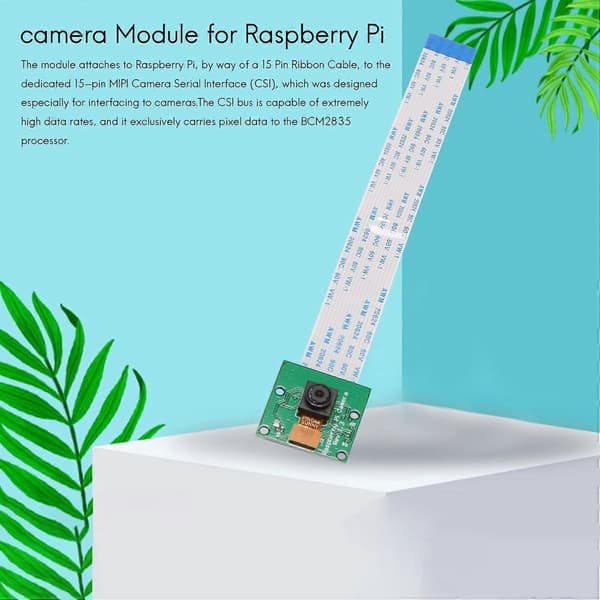

The module connects to the Raspberry Pi via a 15-pin ribbon cable to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed specifically for interfacing with cameras. The CSI bus has extremely high data rates and exclusively transports pixel data to the BCM2835 processor.

The board itself is small, approximately 25mm x 20mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.

The sensor itself has a native resolution of 5 megapixels and features a fixed focus lens onboard.

In terms of still images, the camera can capture static images of 2592 x 1944 pixels and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording.

Specification and application:

Specification:

Viewing angle: 72 degrees

Sensor type: Omni Vision OV5647 5MP

Still image resolution: 2592 x 1944

Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 recording

5-pin MIPI Camera Serial Interface - Connects directly to the Raspberry Pi board

Application:

Mobile phones, PDAs, toys

Other battery-powered products

Can be used in all Raspberry Pi platforms

Package contents:

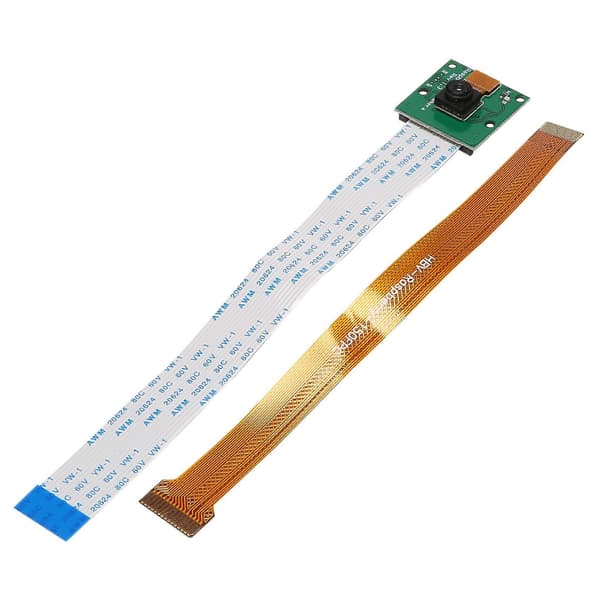

1 x Camera Module

1 x 15 cm cable

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
