Effective pixels: 628 x 586 pixels. Electronic shutter: 1/60-1/10000 seconds

Power consumption: less than 150 mA. Power consumption: 90 mA max

Storage temperature: -40 °C to +60 °C, RH95 % max

Minimum illumination: 0.3 Lux/F1.2

Operating temperature: -30 °C to +50 °C, RH95 %

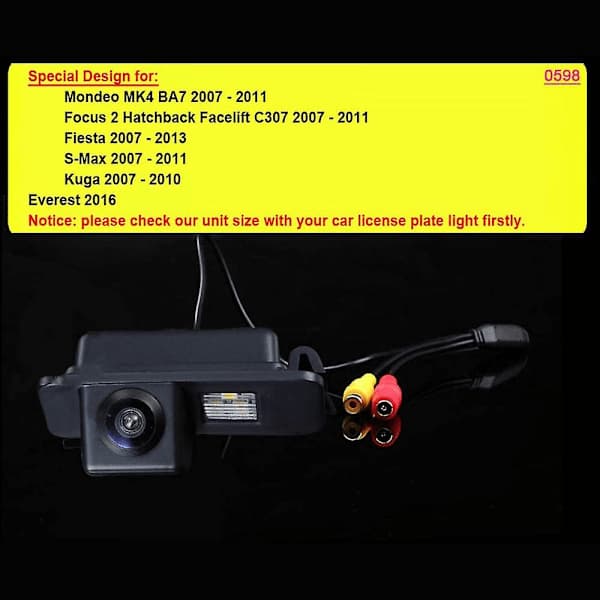

For Mondeo BA7 from 2007

For Focus II Facelift C

For Kuga from 2008

For from 2006

Technical parameters:

1. TV system: NTSC

2. Resolution: 480/520 TV lines

3. Lens angle: 170

4. S-ratio: more than 48 (-OFF)

5. Video color: Colorful

6. Video output: 1.0 Vp-p, 75

7. Image sensor: 1/4 inch color

8. Sensor area: 5.78 x 4.19 mm

9. Sync system: internal

10. Power supply: DC 12 V

11. White balance: Auto

12. Waterproof rating: IP66

Material: plastic

Color: Black



Package contents:

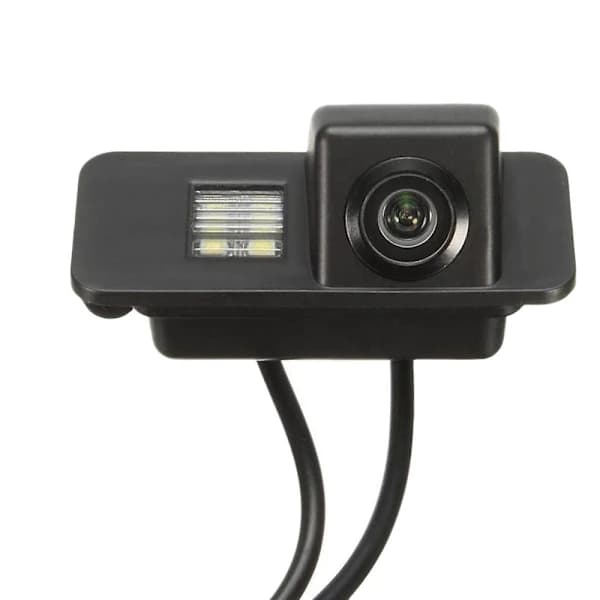

1 x Rear view camera

1 x Video cable

1 x Cable



Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.[CO]
