Double up, double up: With 2x RJ45 connections, the data socket is particularly practical for connecting two devices to the network via cable – stable cable power instead of interference-prone WLAN! In a neutral design in signal white (RAL 9003), the socket fits perfectly into any room concept and with many different switch series.

Shielded data socket with integrated dust protection flaps for connecting 2x LAN cables with RJ45 connectors

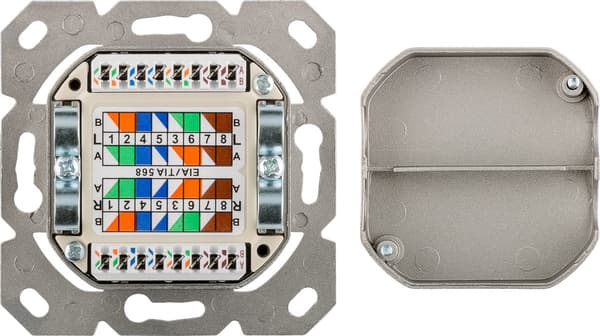

The IDC strips and RJ45 sockets are fully shielded by the fully enclosed metal housing (360° shield contact)

The flush-mounted box is mounted directly in a wall box in the masonry and sealed with the 8 mm flat cover plate (wall box not included)

With a maximum bandwidth of 500 MHz (CAT 6A class EA), the LAN box is ideal for network connection of PC, laptop, game console, printer and receiver

Suitable as a CAT-6A surface-mounted socket for 10-Gigabit-Ethernet and PoE+ applications (IEEE 802.3 at)

The viewing window allows the individual connections to be labeled for optimal cable organization.

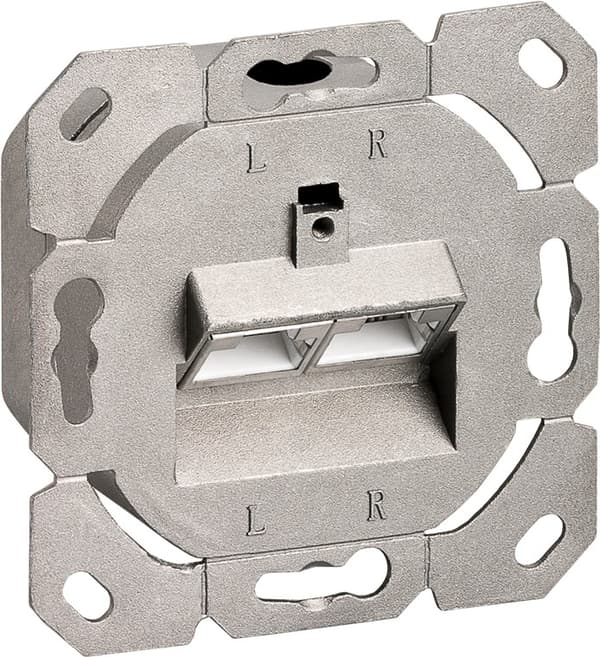

The network socket's metal plate is compatible with all common switch programs (designable).

Specification: CAT 6a
Markings: CE
max. bandwidth: 500 MHz
Connection, cable management: horizontal
Connection, contact material: Gold-plated 3µm
Connection, shielding: yes
Connection, type: terminal strip for IDC mounting (tool-free)
Color: Signal White RAL 9003
Consumption unit: 1 pc. in carton
Instruction manual: de, en, fr, it, es, nl, da, se, cz, pl
