1. Multiple battery types are supported, such as lithium-ion batteries, lithium iron phosphate batteries, and lead-acid batteries. 2. This solar charge controller has an LCD backlight, easy to read in dark places, simple button operation. 3. Displays battery power, voltage, current, and charge and discharge status, daily power statistics, adjustable charge and discharge control parameters. 4. The charge controller provides load, overcurrent, short circuit protection, battery over-discharge, overvoltage, undervoltage protection, battery reverse connection protection, and battery reverse discharge protection. 5. The product is made of aluminum alloy, which can improve battery life, and its small size makes it easy to install almost anywhere.

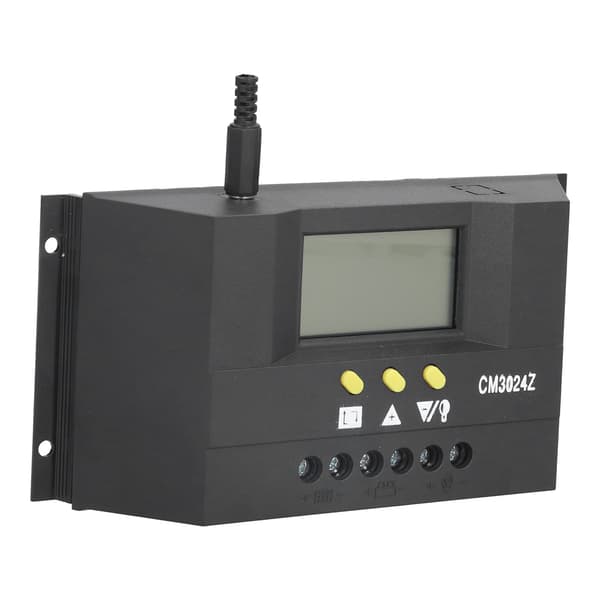

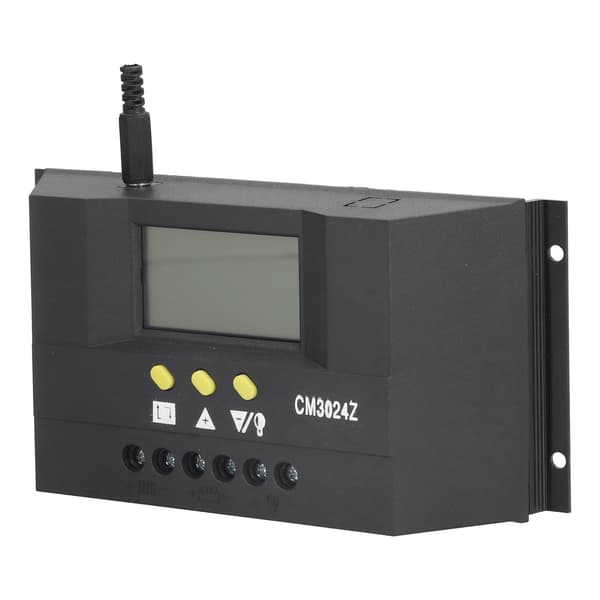

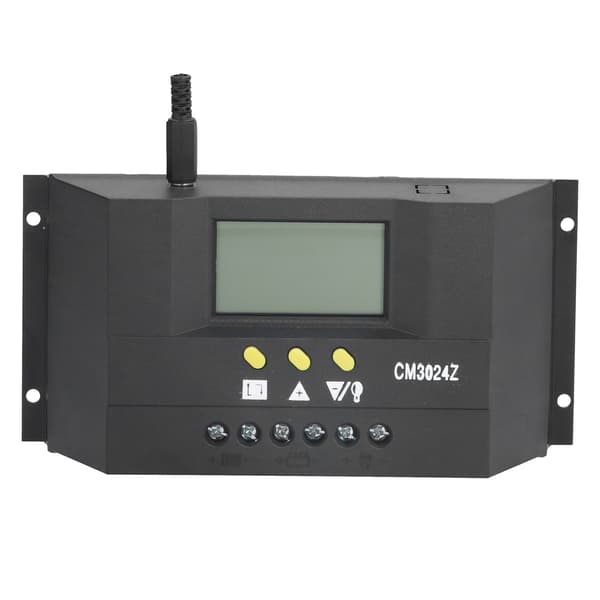

Item Type: Solar Charge Controller
Material: Aluminum Alloy
Model: CM3024

Rated voltage for lead-acid battery: 12V/24V

Maximum charge and discharge current: 30A
Product size: Approx. 18.5 x 9 x 5 cm / 7.3 x 3.5 x 2 inches
Solar panel input voltage range: Max 18V-450W/36V-900W
Load working time setting: 1-24 hours adjustable
Charging mode: PWM
Overvoltage protection: 17V/34V
Fully disconnected: 13.7V/27.4V
Undervoltage disconnection: 10.5V /21V
Over-discharge recovery voltage: 12.2V/24.4V
No-load loss: ≤10mA
Circuit depressurization: ≤170mV
Temperature compensation: -4mv/cell/°C
Cable specification: ≤7# AWG (16mm²)
Working environment temperature: -25℃-55℃
Weight: Approx. 327g / 11.5oz

1 x Controller

1 x Manual

1 x Connector
