Features:

New and high quality

USB 2.0 full speed compatible, Standard HID class devices - No custom driver required, 8 GPIO with configurable option. All customization and configuration options can be selected via a simple GUI-based configurator.

Since there is no need to develop complex firmware, CP2112 devices can achieve USB connectivity with minimal development effort.

Integrated USB transceiver; No external resistor required, Integrated clock; No need for external crystals.

No firmware development required, Simple GUI-based configurator.

Suitable for USB dongle, instrument, controller, point-of-sale product.



Specifications:

Material|:PCB

USB bus power supply: 4.0-5.25V

Self-powered: 3.0-3.6V

Input/output voltage: 1.8V-VDD

Working environment temperature: -40C-85C

Size: Approx 29.5x21.3mm/1.16x0.83inch



Note:

1. Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.

2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.



Package includes:

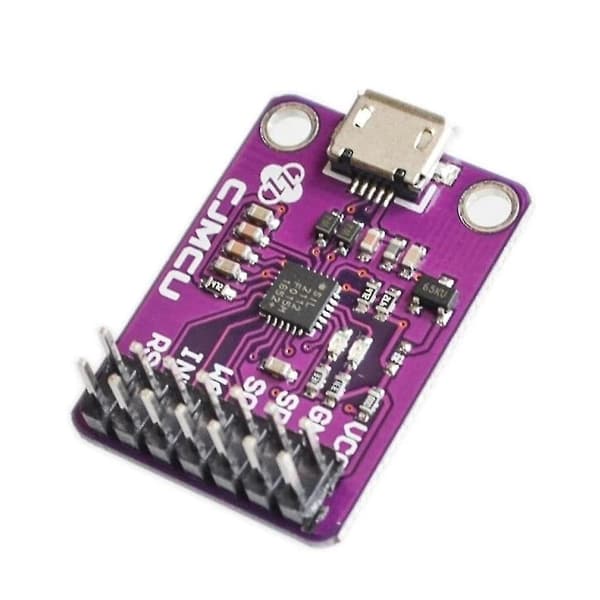

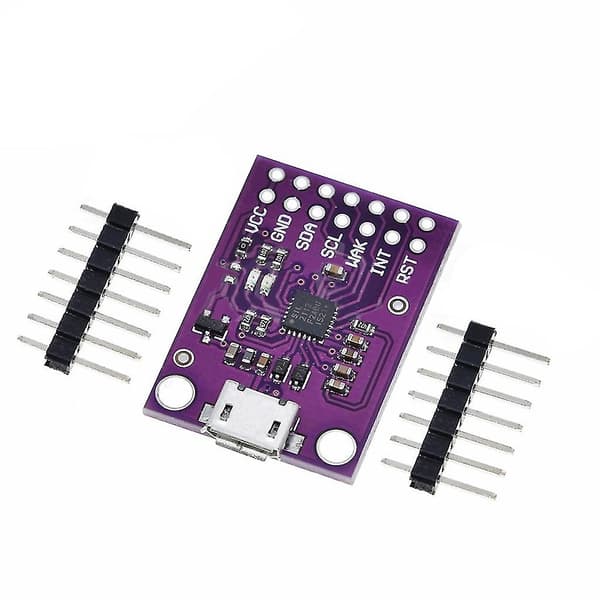

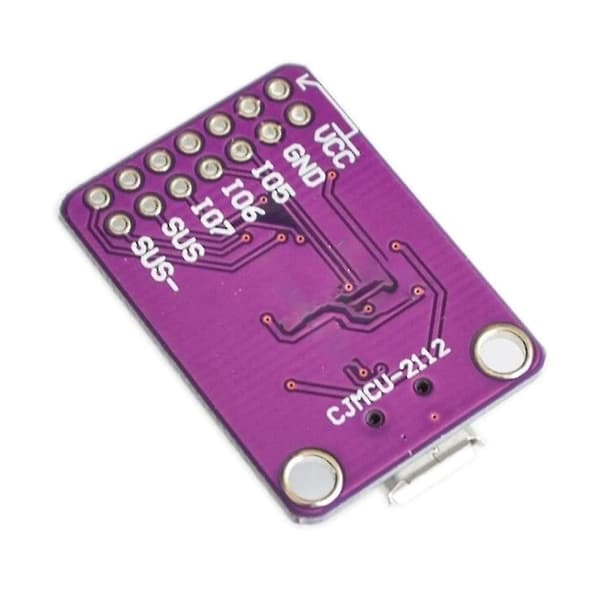

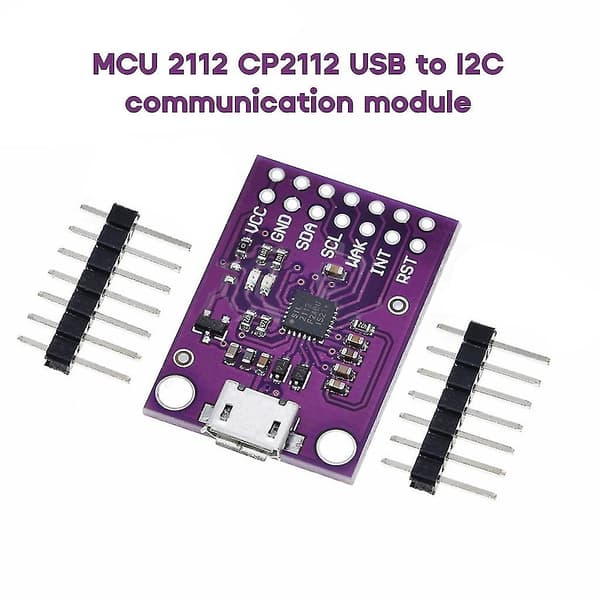

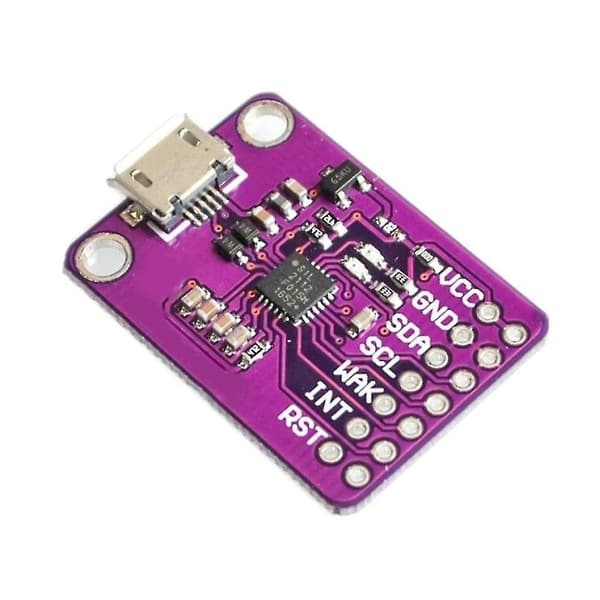

1x Communication Module
