1、Replace the rectifier diode with a dedicated power MOSFET with very low on-state resistance to reduce rectification losses
2、Synchronous rectification technology is adopted to improve conversion efficiency and reduce heat generation from the power supply itself
3、Adopts high quality electronic components and precise process, ensure for the durability
4、High conversion efficiency, with input anti-reverse connection function
5、Suitable for applications where the input voltage is higher than the output voltage

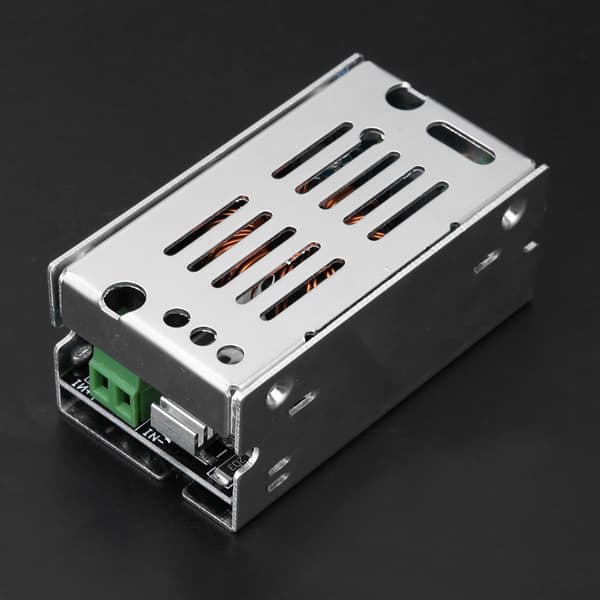

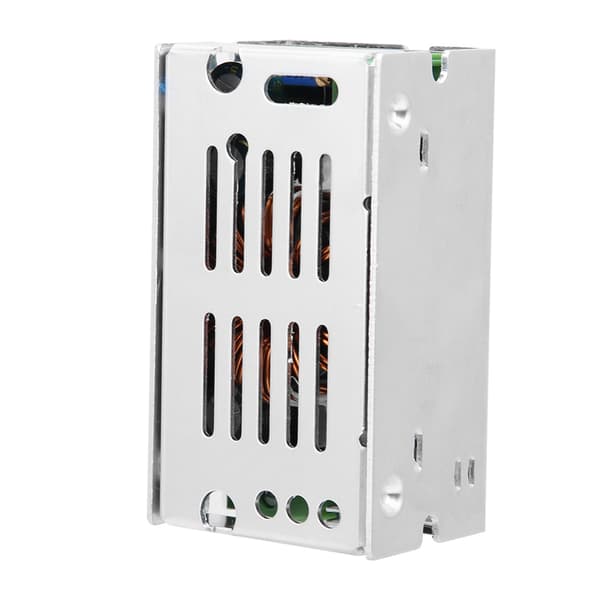

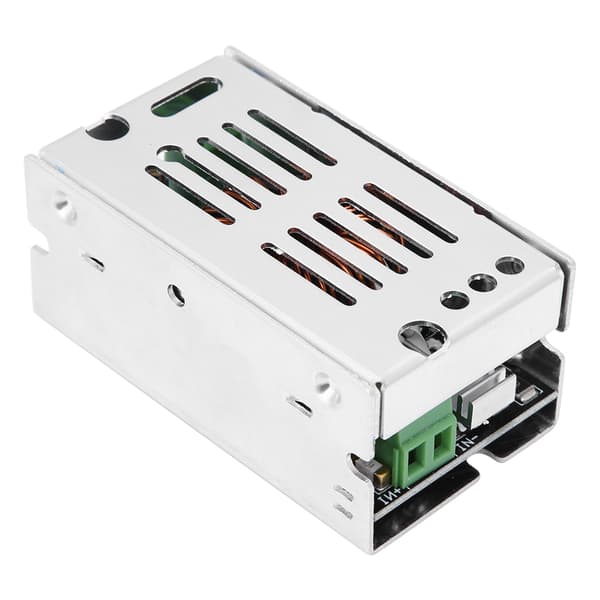

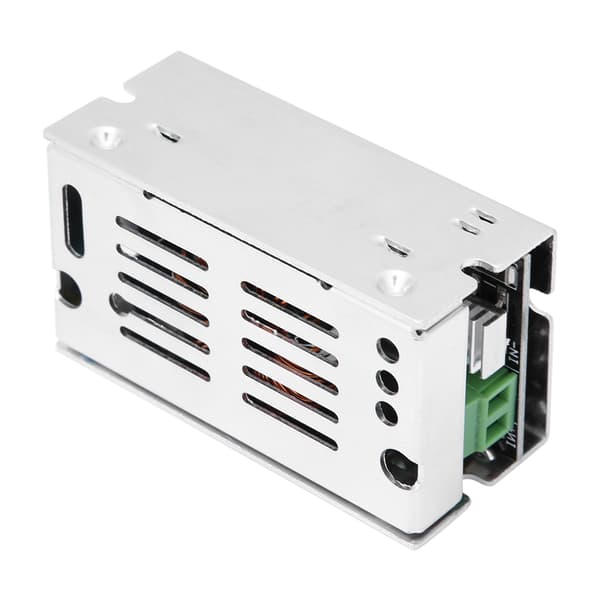

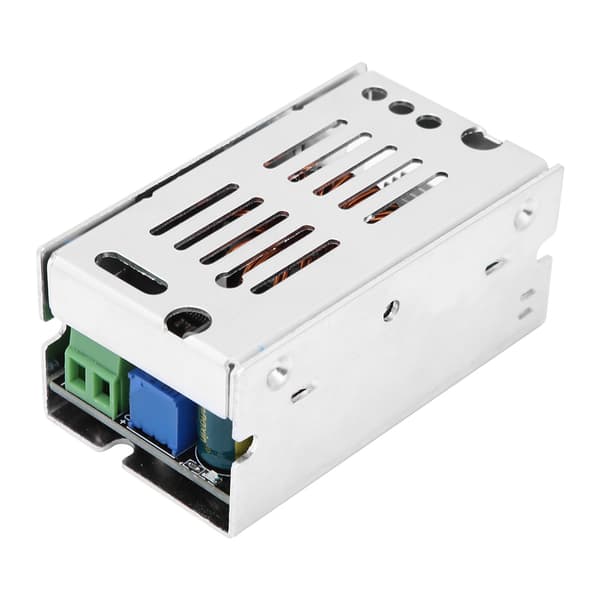

Item Type: Step-Down Module Input Voltage: 10-90VDC Output Voltage: 2-60VDC Adjustable (for applications where the input voltage is higher than the output voltage) Output Current: Max 6A (please use derating when high voltage output, external heat dissipation is required for module temperature above 65 degrees) Maximum Power: 100W (maximum current 6A at low voltage output) Working Frequency: 180KHZ Conversion Efficiency: 97.5% (typical) Input Anti-Reverse Connection: Yes Aluminum Case Size: Approx. 70 x 38 x 31mm / 2.8 x 1.5 x 1.2in .
1 x Step-Down Module
