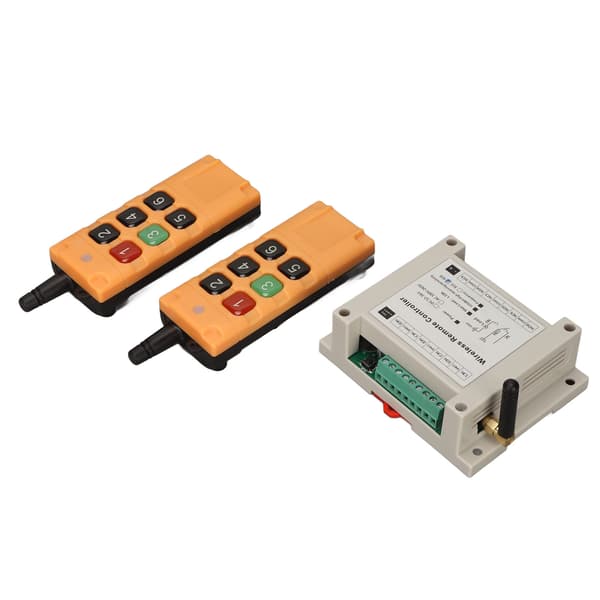

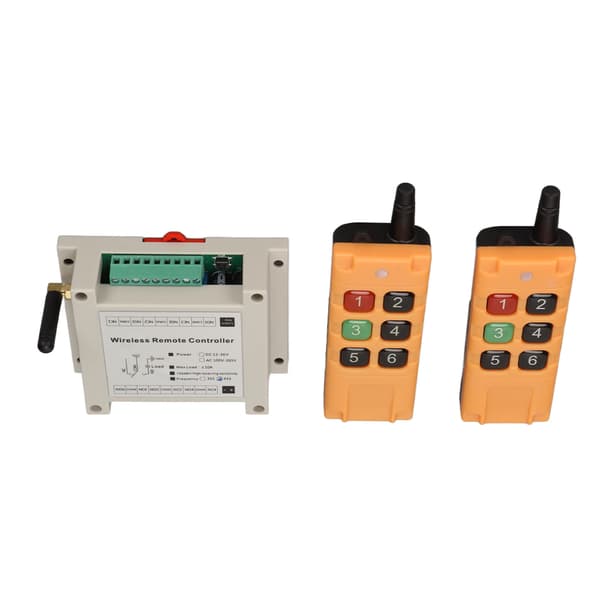

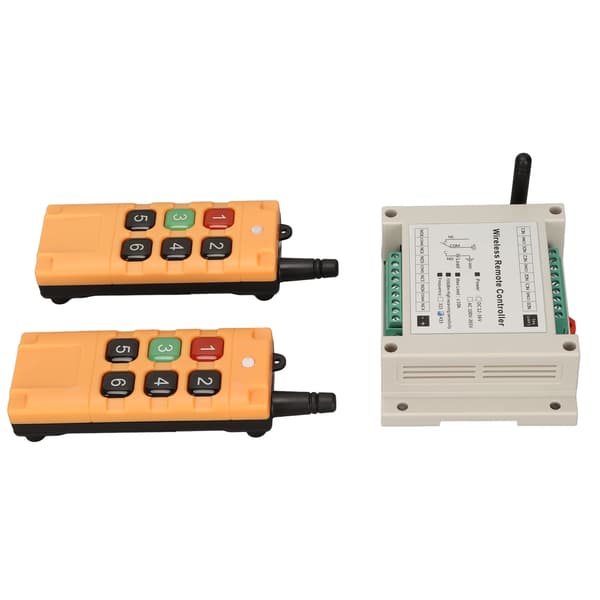

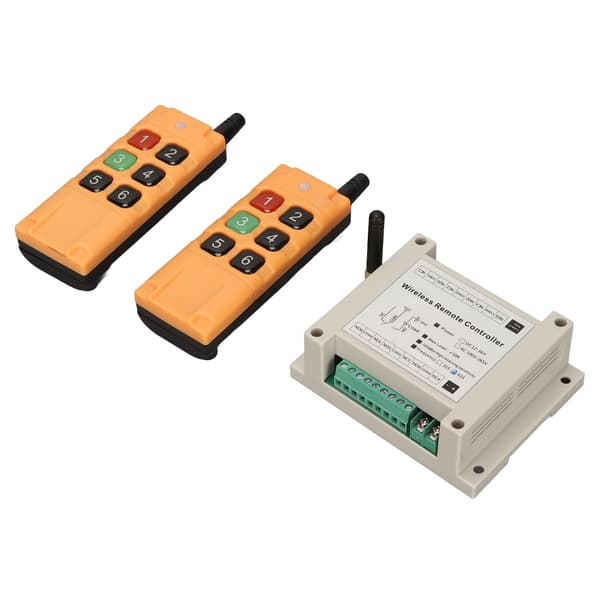

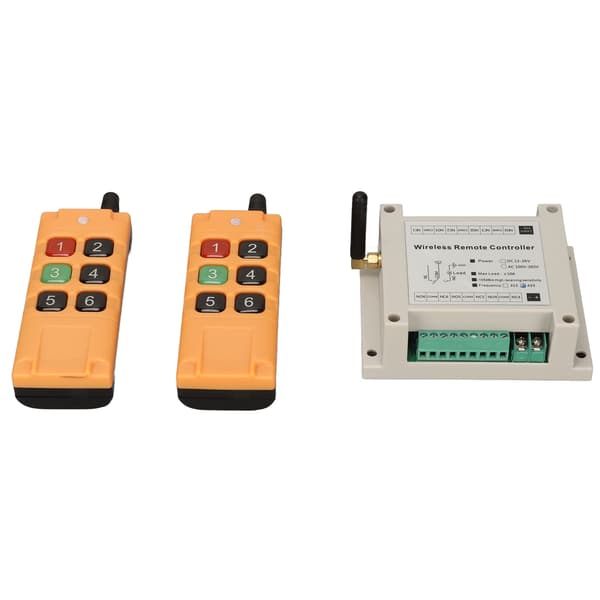

1, MULTIPLE CONTROLS: The controller adopts independent single-chip microcomputer programming to achieve functional diversity and various control methods. 2, WIDE VOLTAGE RANGE: Adopts a wide voltage control chip, which has a wide operating range and can be used for light control, smart home control, etc. 3, STABLE PERFORMANCE: The controller is designed with 6 keys, with GFSK signal transmission, easy to operate, stable signal transmission, free from other signal interference. 4, INCLUDES ACCESSORIES: Including LED light switch relay, radio transmitter and receiver, the working frequency is 433MHz, which has high reception sensitivity and large load. 5, APPLICABLE SCENES: The control kit is mainly used in lighting, electric doors and windows, lifting equipment, elevator control and security industries and other fields.

Item Type: Wireless Remote Control
Material: ABS, Silicone
Voltage: DC12V
Operating Frequency: 433MHz
Receiving Sensitivity: >110dbm
Working Temperature: -40-80 ℃
Maximum Load Current: 10A
Remote Control Specification: 4 x AA battery (not included)

A, 1-6CH Momentary: Press the start button \"1\" to learn
B, 1-6CH Latched: Press the transmitter button \"2\" to learn
C, 1-6CH Toggle: Press the transmitter button \"3\" to learn
D, 1-3CH Momentary, 4-6CH Momentary: Press the transmitter button \"4\" to learn
E, 1-3CH Momentary, 4-6CH Latched: Press the transmitter button \"5\" to learn
F, 1-3CH Latched, 4-6CH Toggle: Press the transmitter button \"6\" to learn
Momentary: Press transmitter button 1, receiver relay 1 is connected, release button 1; receiver relay 1 is disconnected, which is the same as independent of 2, 3, 4, 5 and 6.
Toggle: Press transmitter button 1 once, receiver relay is connected at 1, press button 1 again, receiver relay 1 is disconnected, same 2, 3, 4, 5, 6 independent.
Latching:
Press transmitter button 1, receiver relay 1 is connected and relays 2, 3, 4, 5, 6 are disconnected.
Press transmitter button 2, receiver relay 2 is connected and relays 1, 3, 4, 5, 6 are disconnected.
Press transmitter button 3, receiver is connected 3rd, relay 1, 2, 4, 5, 6 disconnect
Press transmitter button 4, receiver relay 4 is connected, and relays 1, 2, 3, 5, 6 are disconnected.
This also means that latches can only be kept open by 1 channel and usually open 1 channel.
Learning methods and steps:
1. Press the learning button on the receiver, the bee tweee continues to cry, indicating entering the learning mode
2. Press the transmitter's relative button to learn the relative output method. When the bee tweet is called \"be be\" 3 sounds, the learning is successful, and then press the transmitter button to hear the sound of the relay. If you do nothing within 32 seconds, the receiver will automatically exit the learning mode.
Delete memory information (The code must be deleted before learning different buttons):
Continue to press the learning button on the receiver, the bee tweee bee tweets and \"be be be be be\" (please don't wait for 6 sounds), and then release the button to indicate successful deletion of memory information.

1 x Relay

2 x Remote Controls

1 x User Manual
