Features:
New tachometer and hour meter for motorcycle, ATV, snowmobile, boat, and gasoline engine
New and high-quality tachometer/hour meter, with large LCD display
Excellent for kart engines operating in the 25,000+ RPM range
Works on all 2- or 4-stroke gasoline-powered engines.
With the Reset to Zero Hours function, the hour meter reads up to 10,000 hours and then resets to zero & the tachometer can read up to 99,999 RPM
Programmable maintenance hour setting with service icon, a reminder of when oil or other service should be changed
With black wire wrapped around the spark plug wire, can work on all spark ignition engines by selecting engine type with S1 and S2 buttons
Splash-proof and easy installation
Speed Mode Setting:

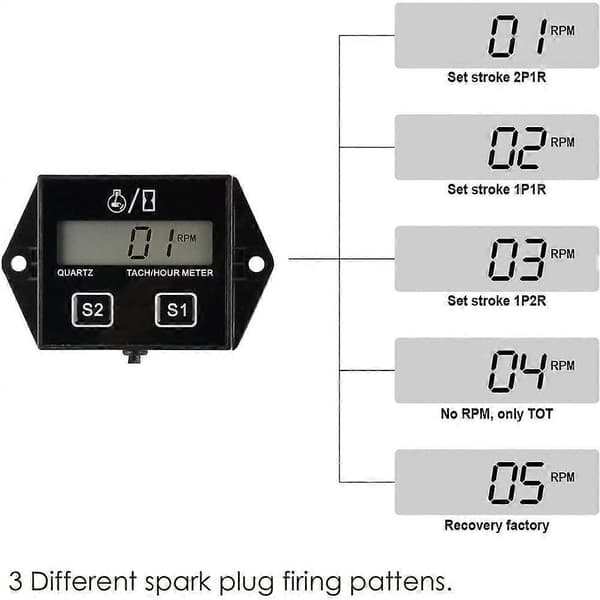

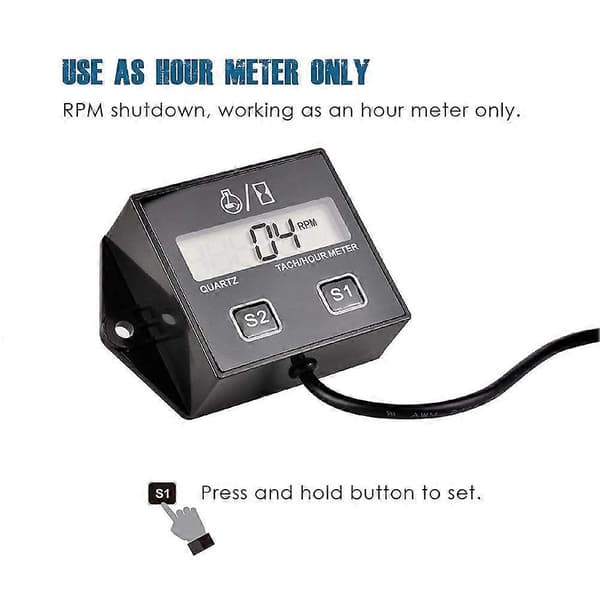

Hold the S1 button for 4 seconds, the RPM icon will appear and the LCD display will show 01 (ignites the spark plug 2 times per revolution); 02 (ignites one ignition per revolution); 03 (other revolutions); 04 (only shows time, does not show RPM).
Once you have found your ideal spark plug ignition method, release the S1 button, the LCD screen will flash for 8-10 seconds and return to the total time mode. The factory default is 02.
Maintenance Interval Time Setting:
Hold the S2 button for 4 seconds, the number on the right half of the display will flash. And the SERVICE icon will appear. Hold the S1 button to automatically increase the number of flashing digits. Once the desired number is reached, release the S1 button. Hold the S2 button for 1 second to add the next digit and repeat the above steps until the input of the interval time is complete, unit: hour. Release all buttons, after 14-16 seconds the LCD display will return to the total time mode.
Confirmation of Maintenance Interval
Press the S1 and S2 buttons simultaneously for 4 seconds, the two digits will increase to 09 and then return to the total time mode. Enter the maintenance interval and confirm the start of work. When the service time for the engine start interval reaches 0, the SERVICE icon will appear, indicating that the service time has expired. For the set interval time to work, this step must be confirmed.
Querying Set Interval Time:
Hold the S2 button for 4 seconds, you can check your maintenance interval time without any settings. If you want to set a new maintenance interval, repeat steps five and six. That is, if you want to check the maintenance interval time, just hold the S2 button.
Processing After Service Time Expires:
After the engine has run, if the maintenance interval has expired, the SERVICE icon will appear to remind you of service. Press S1 and S2 simultaneously to get data from 01-09, the SERVICE icon will turn off, the maintenance interval will automatically reset to the original set time and continue to run.
Package included:

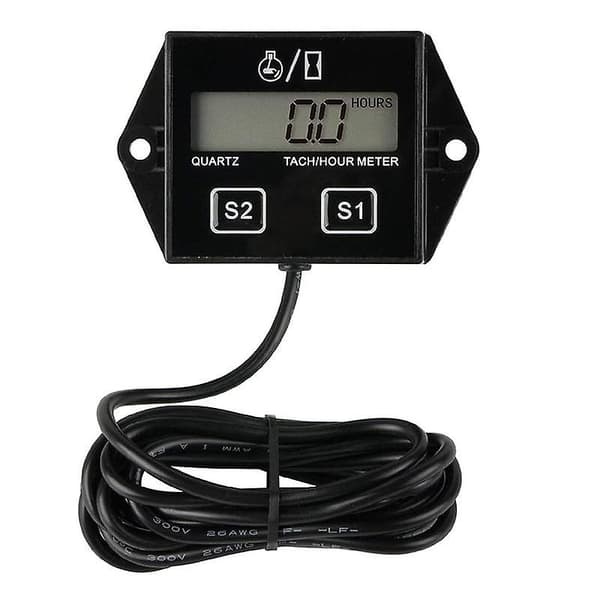

1 x Tachometer
