This product uses remote control (infrared models), it can be adjusted by the remote control's brightness and dynamic change mode, and can set delayed shutdown, with memory function, no frequent installation required.

Suitable for all types of single color LED strip lights.

Product name: IR remote control dimmer

Led type: High Power Led

Input/Output voltage: DC12-24V

Working temperature: -20 ~ +60

Power: 360W

Output current: 30-36A

Remote battery: 2 AAA batteries (not included)

Control distance: 10m

Instructions:

1. Insert the strip plug into the controller's output socket, the controller and the strip of positive and negative correspondence, be sure to check the position of the strip pin if there is a short circuit, if there is a short circuit phenomenon, handle again, otherwise it will damage the controller and the led strip.

2. Turn on the power, use the remote control can be performed according to the controller's needs to operate.

3. When the infrared remote control model installs the controller, the remote control receiver should be installed in the position of the obstacle, to avoid remote control failure.

4. Radio frequency models can be remotely controlled through obstacles.

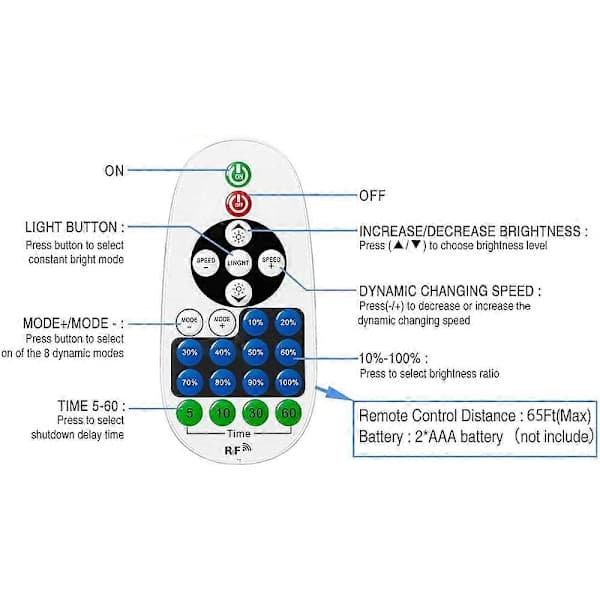

Function mode list:

1. ON/OFF: turn on and off

2. SPEED/SPEED+: dynamic speed adjustment

3. LINGHT: Maximum brightness

4.Up/down: brightness adjustment

5.MODE+/MODE-: 8 dynamic modes selection. (Gradient, breath, flash, slow flash, fast flash, jump, blink, candlelight)

6.10%-100%: brightness ratio selection

7.Time 5- 60 delayed shutdown time selection

Color: white + silver

Material: plastic + metal

Package contents:

1 x Controller

1 x Remote control

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
