Output current: less than or equal to 8A/CH (Note: Total current over 20A will reduce product life.)

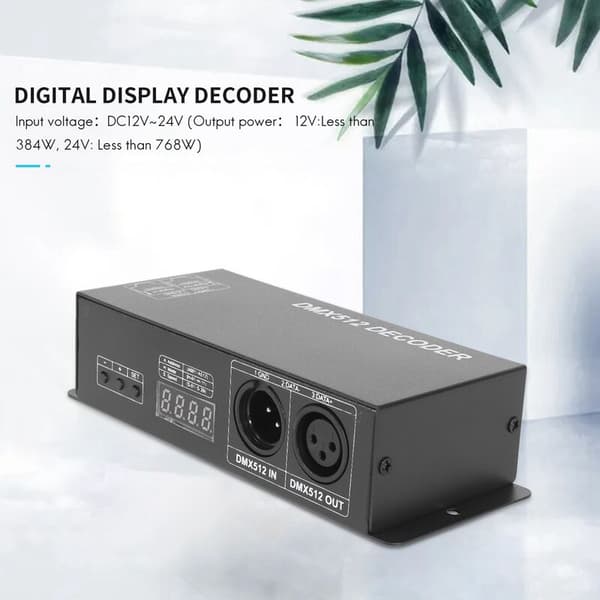

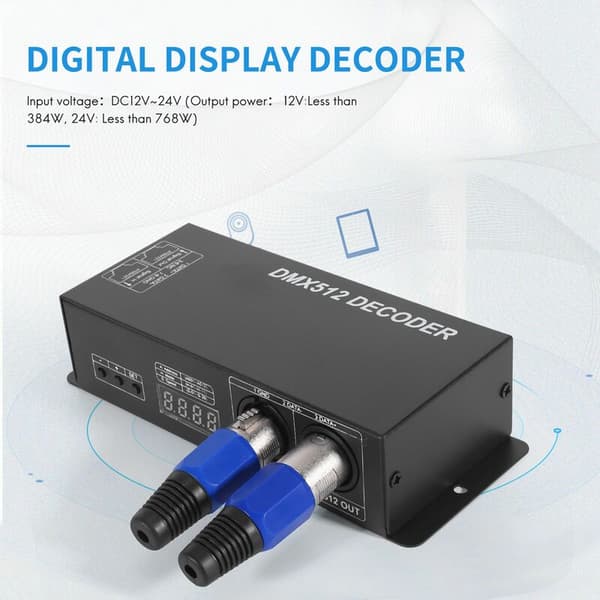

Input voltage: DC12V~24V (Output power: 12V: less than 384W, 24V: less than 768W)

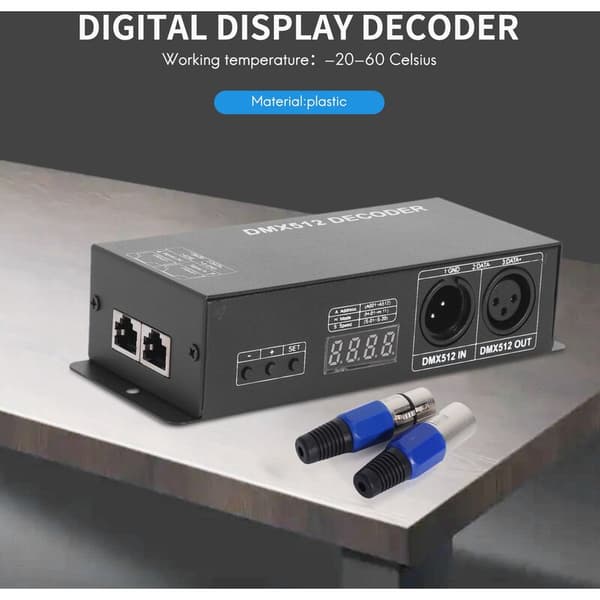

Working temperature: -20-60 Celsius
DMX512 standard: DMX512 / 1990

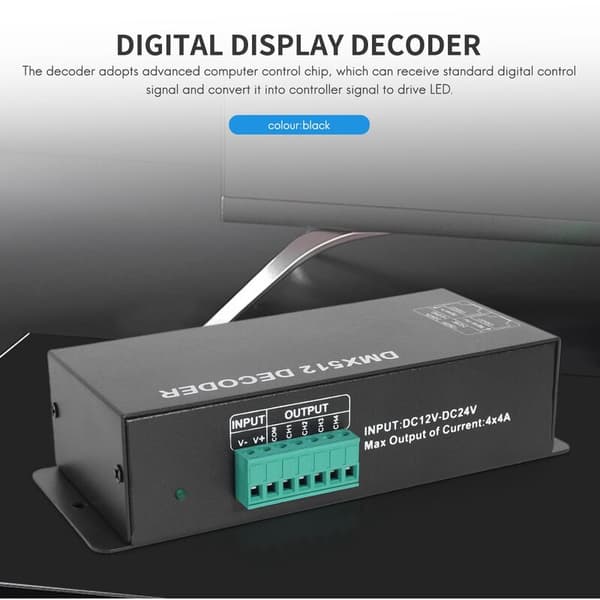

This DMX decoder adopts advanced computer control circuit, it can receive international standard DMX - 512 digital control signals and converted into PWM control circuit signal to drive LED. It can be controlled by DMX console and can be connected to a number of DMX decoders to increase the output power to realize all kinds of changing modes. In addition, this DMX decoder can be used as a synchronous controller to control LED alone, it can realize the synchronous effects. This decoder adopts digital tube to show address code and with 3 buttons for setting, make it easier to operate.
Colour: black
Material: plastic
Size: 166 * 67 * 41mm
Package Contents:
1 * decoder
2 * Card slot
Precautions
1, This product only applies to the power supply voltage DC12-24V, do not input other voltage.
2, The connecting wire must be consistent with the wiring diagram of color and label, connect correctly.
3, This product cannot be overloaded.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
