Specifications:

Battery type: 1x 9V battery (Not included)

Item weight: 0.3kg

Hardware version: OEC-T5

Software version: EL-50448

Material type: ABS

Color: Black + Orange

How to use EL 50448 TPMS Activation Tool:

Step 1:

Enter learning mode

Put the gear lever in P

Turn the ignition to ON

Enter the tire pressure display interface via DIC

DIC shows Press Set / Ctrl to relearn

Press Set / Ctrl
The turn signal light will illuminate for 3 seconds and the horn will beep twice to enter the learning mode

Step 2:

Read tire pressure sensor information

from the front left,

Place the EL-50448 Tool antenna against the valve stem, against the rim and tire sidewall

Press the button

The tire pressure sensor information is successfully read when the horn sounds once

Step 3:

to read other tire pressure information

follow the instructions above to read the tire pressure on the front right, rear right, rear left wheels.

The turn signal lights will illuminate for 3 seconds and the horn will sound twice when learning is complete.

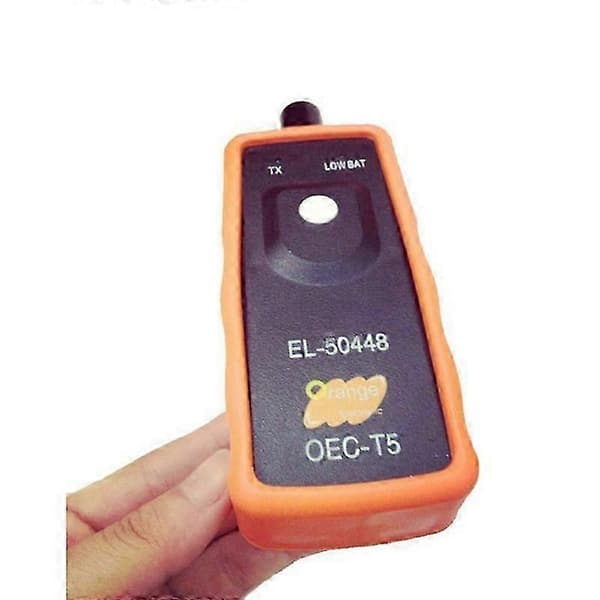

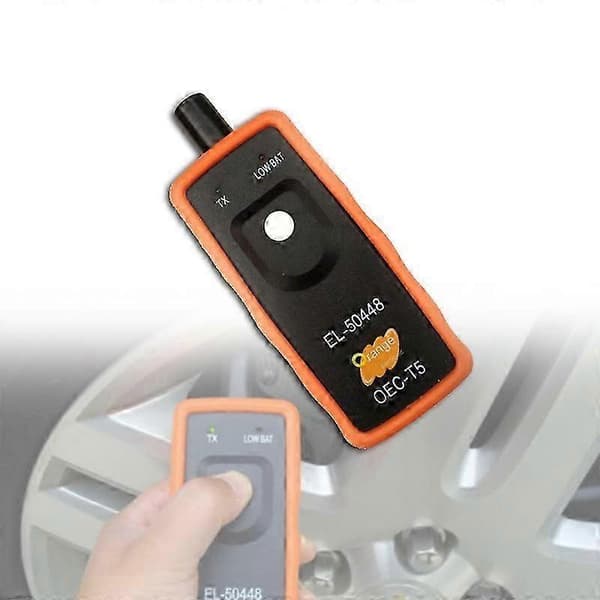

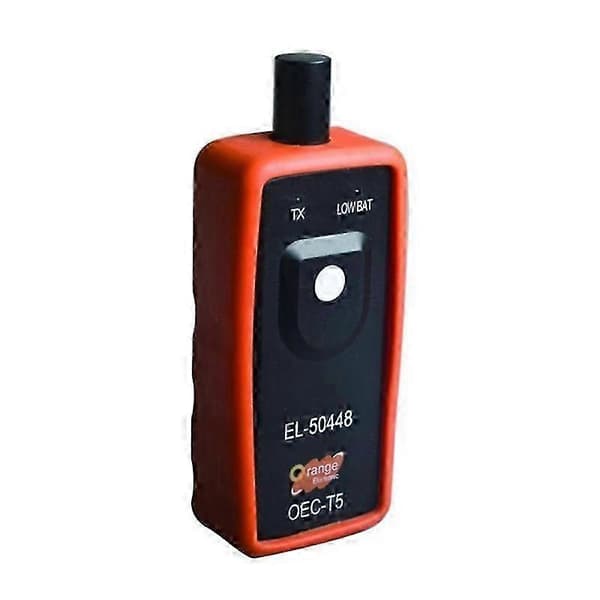

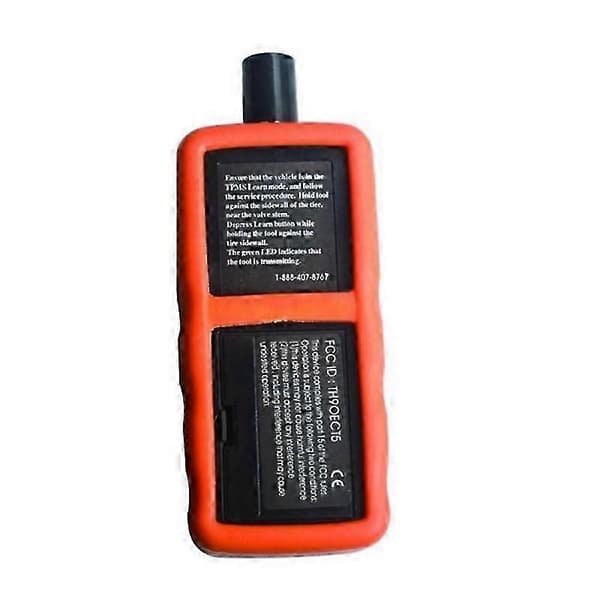

Tire Pressure Monitoring Sensor TPMS Activation Tool EL-50448 OEC-T5

For vehicles equipped with a 315 or 433 MHz tire pressure monitoring system (TPM), a sensor reprogramming procedure must be performed after tire rotations, replacement of the remote control door lock receiver module, or replacement of the tire pressure sensor. This reprogramming procedure can be performed using the special tool EL-50448.

Package includes

1x EL-50448 Tire Pressure Reset Instrument

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The allowed measurement error is +/- 1-3cm.
