【Strong and Safe to Use】The electric magnetic lock is mainly made of carbon steel, the latch can withstand 150kg of pulling force.

【Excellent Function】It is energy-saving and has a long service life. Shockproof, anti-lever, and anti-theft. Built-in unlocking status detection.

【Compact and Easy Installation】The product is small in size, easy to install, no left, right, front, or back restrictions, and allows mechanical unlocking.

【Self-elastic Design】Elasticity adjustable, suitable for door weight 0.5~4kg.

【Wide Range of Applications】The electronic lock is suitable for centralized control centers such as cabinets, mailboxes, lockers, logistics cabinets, filing cabinets, meters, cabinets, vending machines, mobile cabinets, shoe cabinets, etc. Widely used
in schools, community logistics, hotels, factories, bathhouses, banks, supermarkets, and other places.

Electromagnetic lock is a mechanical lock controlled by the relay. The lock works when the circuits are disconnected and it unlocks when power is applied.

Specifications:

Main Material: Carbon Steel

Surface Treatment: Electrophoretic paint painting (neutral frog test over 500 hours)

Working Mode: Independent type (Turn off power and close door - Locked; Turn on power - Unlocked)

Electrical Parameters: DC 12V 2A

Mechanical Life: At design load, about 500,000 times

Electromagnetic Life: At rated operation, more than 1,000,000 times

Lock Hook Strength: 150kg force (no permanent deformation)

Ambient Temperature: -40℃~60℃

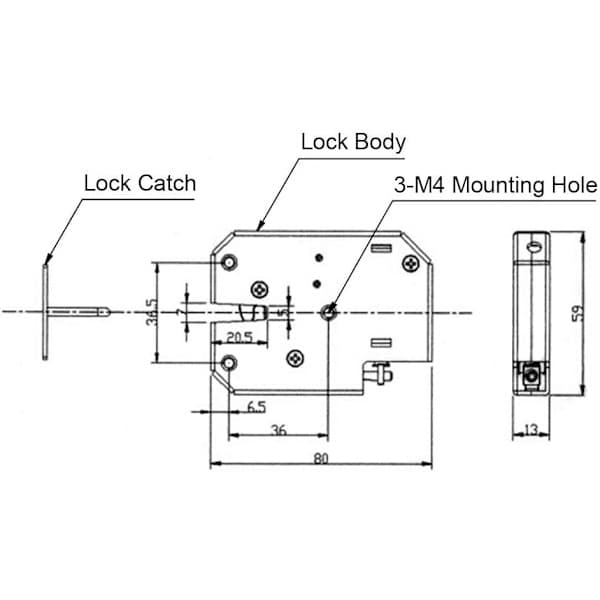

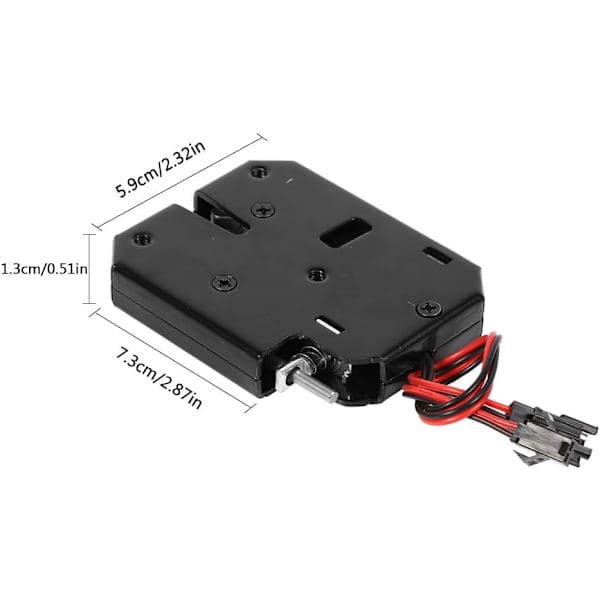

Size: Approx. 5.9 x 7.3 x 1.3 cm / 2.32 x 2.87 x 0.51 inches

Package Weight: 170g

Package Includes:

1 x Electric Lock (with detection switch)
