1. The product has professional lubrication and cooling, suitable for grinding machines, milling machines, drilling machines, lathes and other small processing machines. 2. According to the working principle of electromagnetic induction, the power loss is low. 3. This pump is a piston pump uniquely designed for precision forming grinding machines, with piston movement. 4. The outlet volume is 400-500cc/min and the outlet pressure is 1kgf/cm² with stable performance. 5. High-quality stainless steel material can ensure the durability and stability of the product.

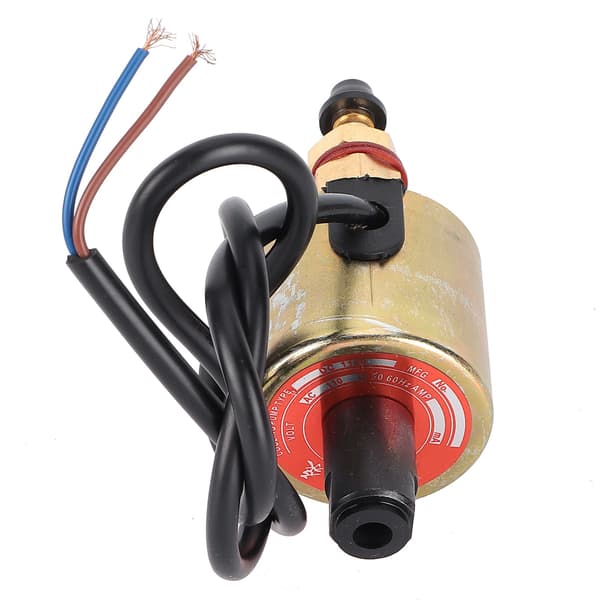

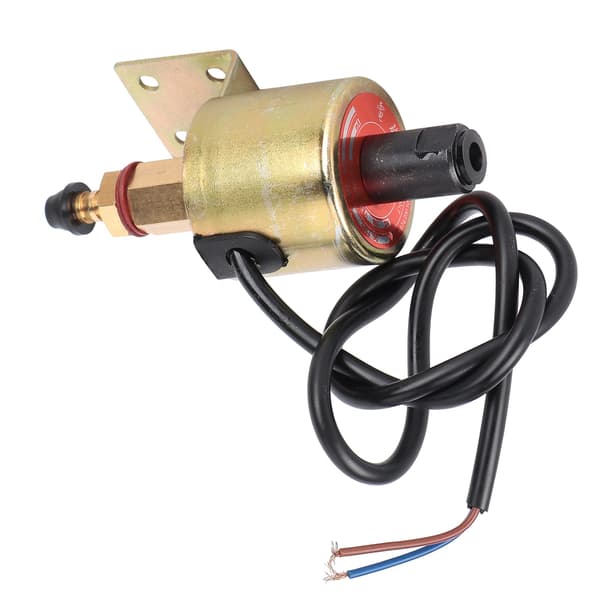

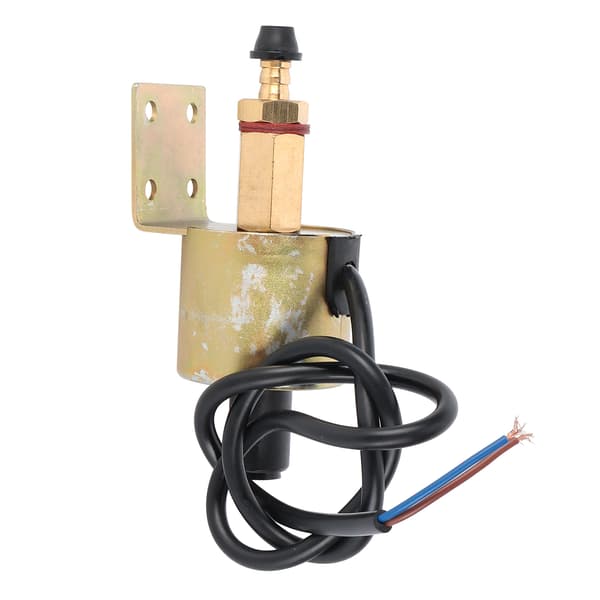

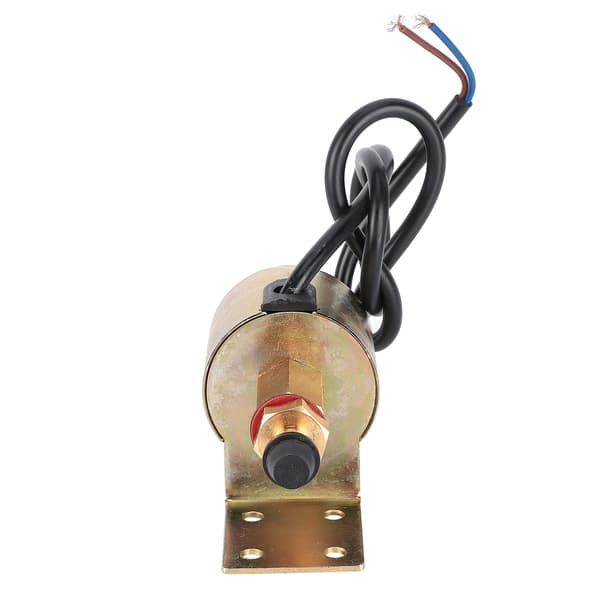

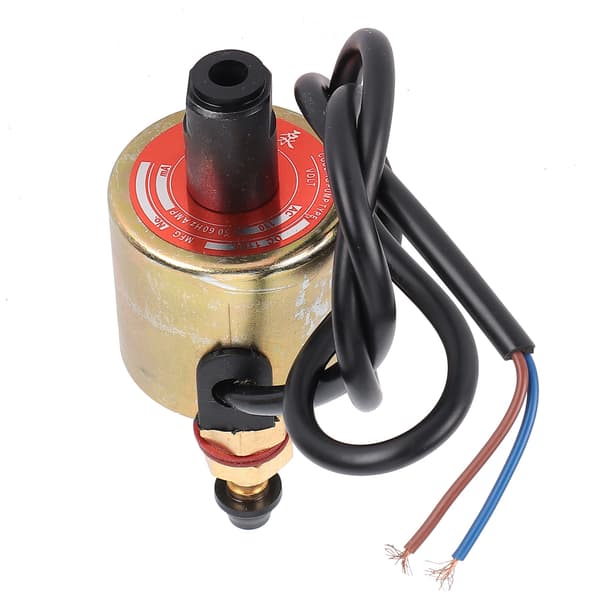

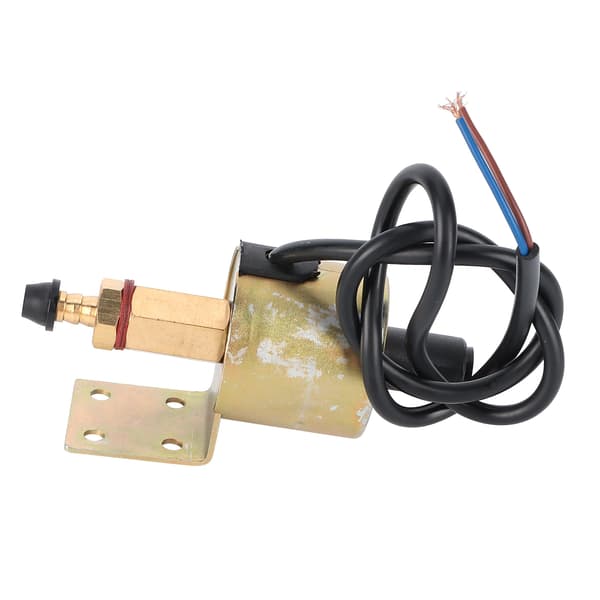

Item Type: Electromagnetic Oil Pump for Grinding Machine
Material: Stainless Steel
Applications: Suitable for small processing machines (such as lathes, milling machines, grinding machines)
Specification: High-quality domestic AC110V
Power: 13W
Voltage: AC110V
Inlet Suction: 40KPa
Outlet Pressure: 1kgf/cm²
Outlet Volume: 400-500cc/min
Product
This pump is a piston pump uniquely designed for precision forming grinding machines. The pump core performs piston movement during operation. The pump core is equipped with a one-way valve. This design is mainly designed to block the pump core when sand and dust in the lubricating oil penetrate. Sand and dust enter the guide rail, causing greater damage to the guide rail; if the operator notices that there is no oil supply from the oil window, he must immediately disassemble the pump core to clean the one-way valve and cylinder and replenish the guide rail oil. If it is blocked, the oil pump will burn out, causing damage to the guide rail.

1 x Electromagnetic Oil Pump for Grinding Machine

1 x Filter

2 x Connector

2 x Clamp

1 x High-Pressure Pipe
