1. Latest ELM327 version for greater Ford compatibility

2. Manufactured modification to include a switch to connect to different CAN buses

3. Designed for FORScan software

4. Compatible with software vendors: FORScan, Elmconfig (Only supports Baud rate:34800, please check before ordering), FF2 and FoCCCus, plus more

Basic features: Reset fault / trouble codes / parameter IDs (PIDs), Change car configuration data, Run tests, Service procedures

MS CAN bus and HS CAN bus support

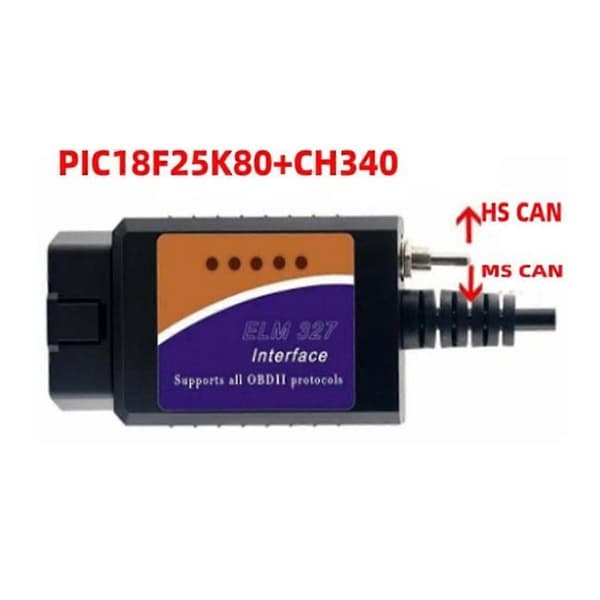

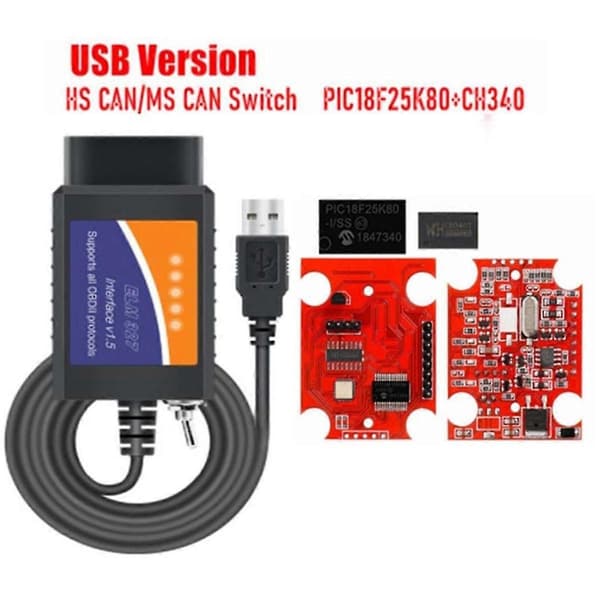

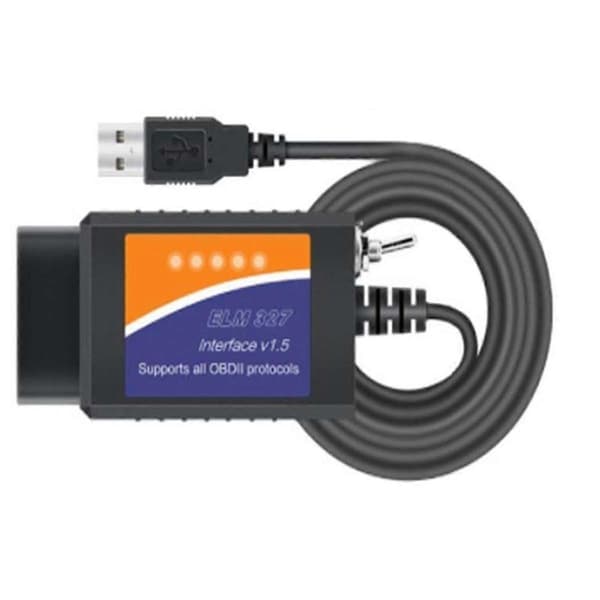

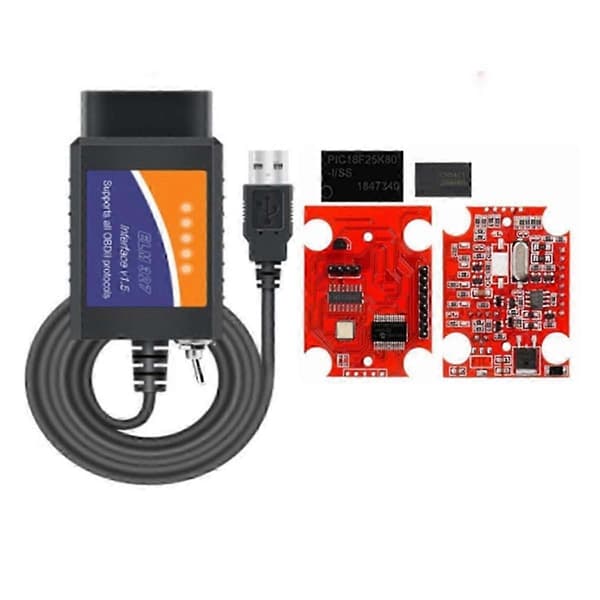

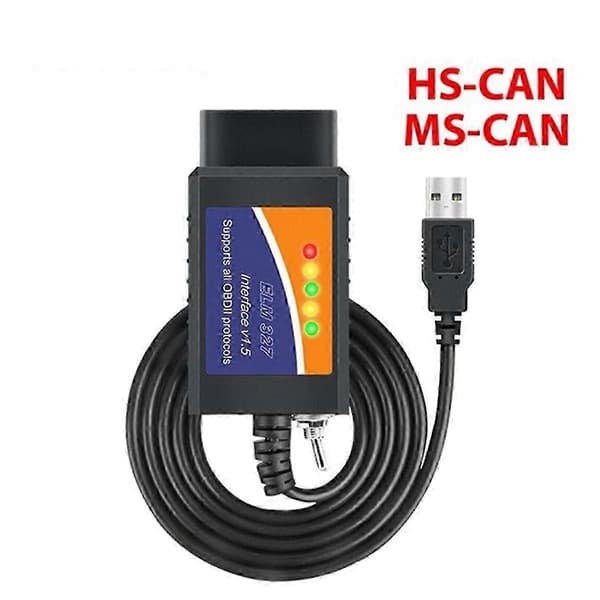

ELM327 USB 25k80 with switch for Ford Diagnostic Cable

Product introduction:

An ELM327 OBDII OBD2 USB with switch. Designed to communicate with Ford, Mazda vehicles. With this cable and one of the supported software vendors, you can detect modules that are not visible to regular OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and service procedures never shown by other OBD2 scanners and a standard ELM327.

Pin configurations:

Switch off: HS CAN - Occupied pins 6 and 14

Switch on: MS CAN - Occupied pins 3 and 11

Supported software:

FORScan

Elmconfig (Only supports Baud rate:34800, please check before ordering)

FoCCCus

Modified EML:

Please note that many Ford and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. Unlike the HS CAN bus, the MS CAN bus is not supported by standard ELM327, as MS CAN is a manufacturer-specific solution and is located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus. The ELM327 supports HS CAN from standard, as Ford HS CAN fully matches OBD2 standards. It occupies pins 6 and 14. The MS CAN bus occupies pins 3 and 11.

Color: As shown

Material: ABS

Package contents:

1 Diagnostic scan tool

Only the above package content, other products are not included.
