Specifications:
Read/erase fault codes from all modules, including OBD2/EOBD.
Access modules in both HSCAN and MSCAN mode.
Read vehicle configuration, actuator tests, live data, injector coding.
Software updates, service procedures, force DPF regeneration, programming, coding, adaptations.
Supported for Windows OS: For Win 7/XP/Vista/Windows 2000 (both 32 & 64 bit OS).
Type: OBD2 Diagnostic Scanner
Material: Plastic
Features: Portable, Durable, Easy to Use
Cable Length: 137cm/53.94 \" (Approx.)
Supports the following protocols:
ISO157654 (CAN)
ISO142304
ISO91412
J1850 VPW (for GM vehicles)
J1850 PWM (for Ford vehicles)
For Ford HS CAN, MS CAN 9141
Plus
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO91412 (5 Baud Init, 10.4 Kbaud)
ISO142304 KWP (5 Baud Init, 10.4 Kbaud)
ISO142304 KWP (Fast Init, 10.4 Kbaud)
ISO157654 CAN (11bit ID, 500 Kbaud)
ISO157654 CAN (29bit ID, 500 Kbaud)
ISO157654 CAN (11bit ID, 250 Kbaud)
ISO157654 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250 Kbaud)
USER1 CAN (11bit ID, 125 Kbaud)
USER2 CAN (11bit ID, 50 kbaud)
Default Settings (User Adjustable)
Supported Software:
ELMconfig
FoCCCus
Forscan
And most types of OBD2/EOBD software
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:

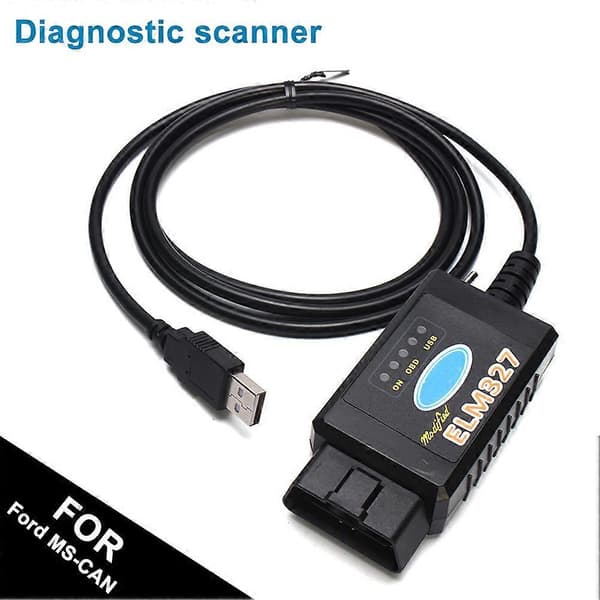

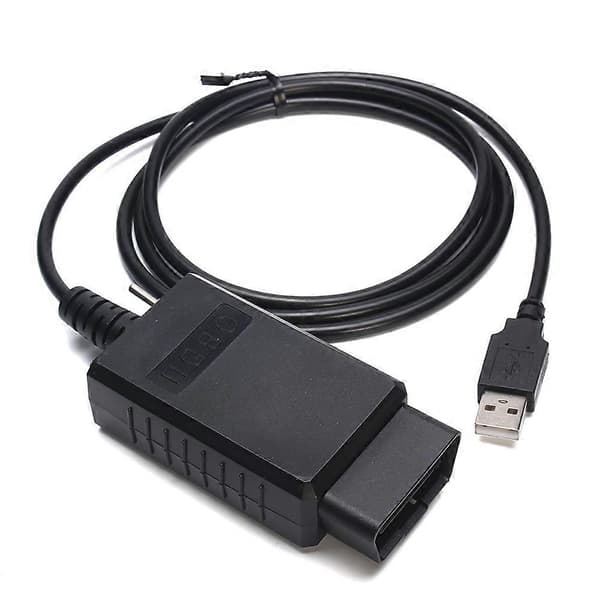

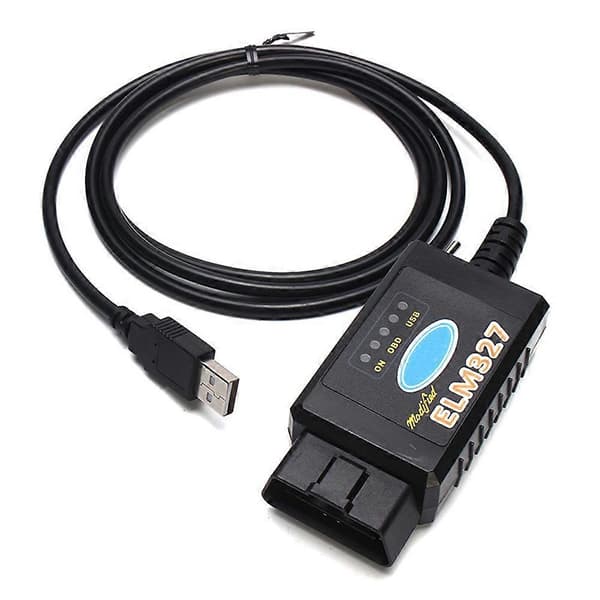

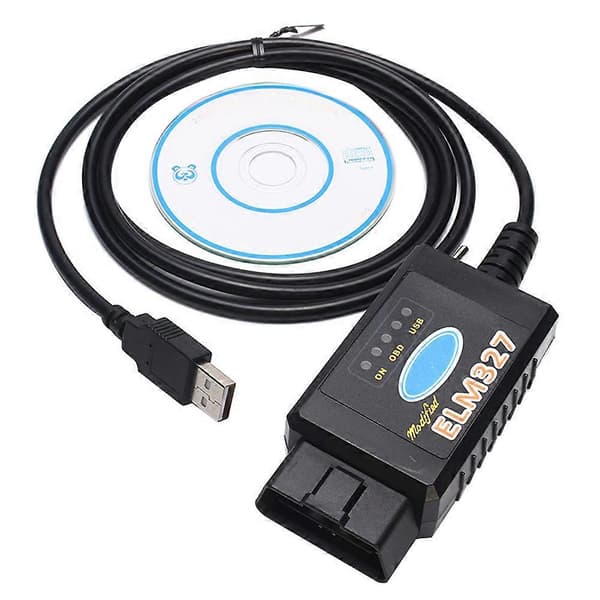

1 x ELM327 USB OBD2 Diagnostic Scanner
1 x CD
