Double-shielded satellite cable for interference-free transmission

Molded plug on both sides to protect against dust, dirt and mechanical stress

Conductivity is maintained for a particularly long time, as gold-plated contacts do not corrode.

For the transmission of digital SD/HDTV signals, e.g. from SAT systems to TVs or receivers

Quick connection of the cable using F-connectors (Quick), which only need to be plugged in instead of screwed on.

Cable sheath Diameter : 5.3 mm
Inner conductor, cable diameter : 0.5 mm
Number of shields : 2 x
Markings : WEEE, CE
CAS no. : 7439-92-1
chemical substance : Pb
SCIP no. : 46f5c3b6-7103-4882-a95b-c0de010408cb
Impedance : 75 Ω
Shielding effectiveness : 80 dB
Cable type : Coaxial cables
Inner conductor material : CCS
Type 1, shielding : Foil (alu)
Type 2, shielding : Braided shield (alu) 112pcs.
Connection, contact material : Gold-plated
Connection, shielding : yes

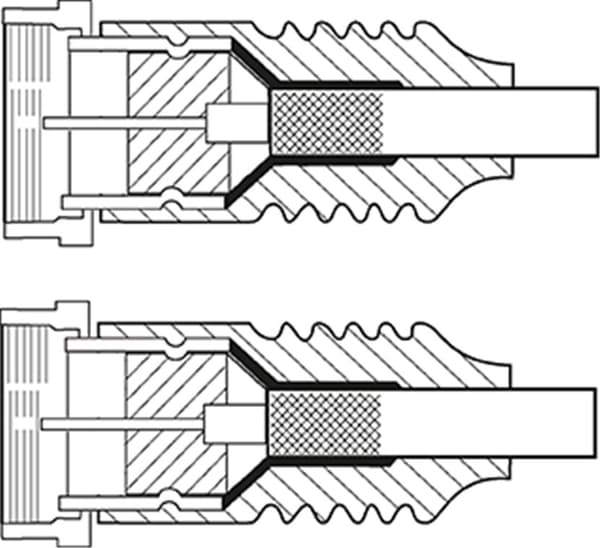

Connection, type : F-plug (Quickfix)
Connection 2, type : F-plug (Quickfix)
Color : white
Consumption unit : 1 pc. in plastic bag
Jacket material : PVC
Cable length : 5 m
Material cable jacket : PVC
Color version : white
