The patch cable is suitable for private and industrial applications, including fiber to the home (FTTH), and is compatible with many providers' FTTH offerings. The bend-optimized fiber optic cable enables space-saving installation without increasing attenuation and risking interference.

singlemode fiber optic cable designed for connection types such as FTTH, FTTB, FTTx and use in the home, office, data center, etc.

as a patch cable, it forms the connection between the house's transmission point and the indoor fiber optic modem (ONT)

fiber optic cable for up to 100 Gbit/s that is bend-optimized and space-saving with a minimum bending radius of 30 mm (static)

LSZH compliant: the cable jacket is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034

strain relief reinforced with aramid yarn provides extra stability

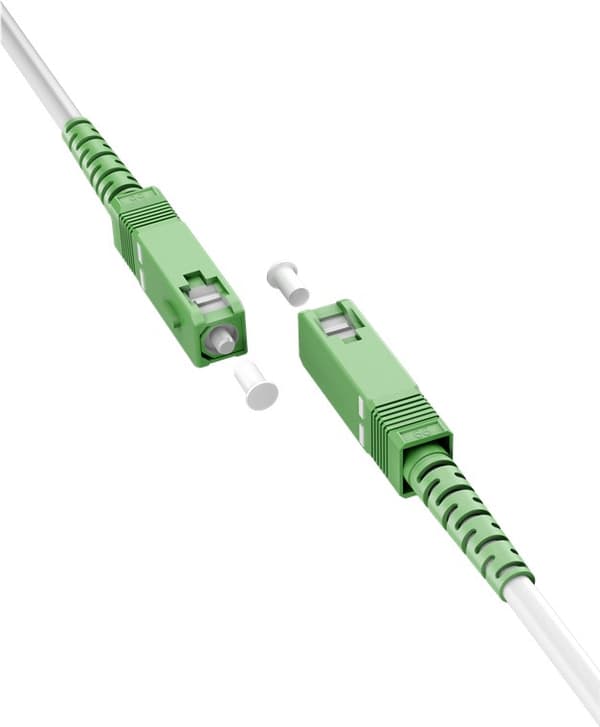

equipped with dust protection caps, connector: simplex, fiber type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2

individual test protocol with measurement of return loss and insertion loss

Bending radius > : 30 mm
Specification : Singlemode (OS2) White
Cable jacket Diameter : 3 mm
Optical fiber core diameter : 9 µ
Optical fiber cladding diameter : 125 µ
Wavelength : 1310 nm
Connector : Ceramic Ferrule
Operating temperature up to : 85 °C
Operating temperature from : -40 °C
CAS no. : 7439-92-1
chemical substance : Pb
Bend protection : yes
Cable type : Simplex cable
Cable fiber type : Glass Fibre G.657.A2
LSZH compliant : yes
Connection, type : plug SC-APC (8°)
Connection 2, type : plug SC-APC (8°)
Color : white
Consumption unit : 1 pc. in plastic bag

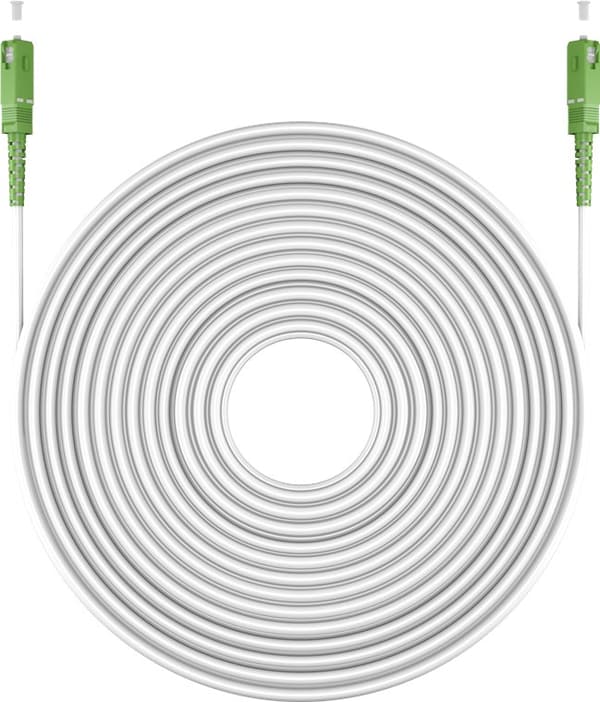

Cable length : 2 m
SCIP no. : 9f48ace1-75ff-44dc-81ef-8fc17871c4b9
Material cable jacket : LSZH
Color version : white
