Description

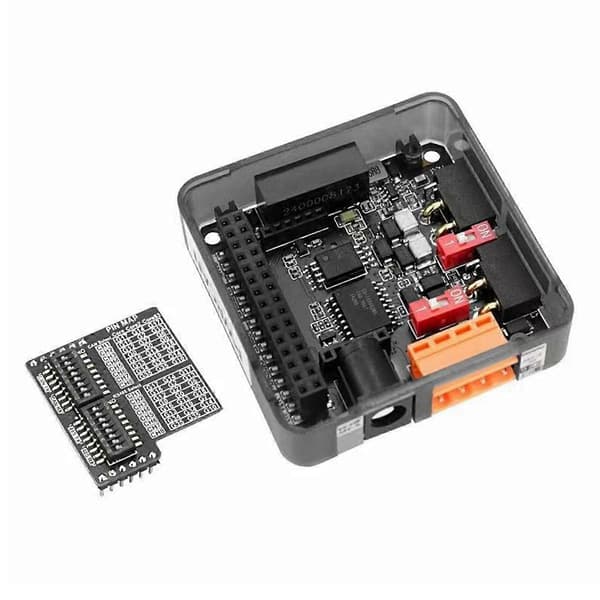

1.Module13.2 PwrCAN is a versatile module designed for PwrCAN bus, integrating isolated CAN communication and a DC 9 - 24V power supply bus

2.The module also includes Pwr485 (isolated) bus functionality and provides isolated 5V power supply to the M5 host

3.The CAN communication part uses the CA-IS3050G isolated transceiver, and the RS485 part uses the CA-IS3082W isolated transceiver

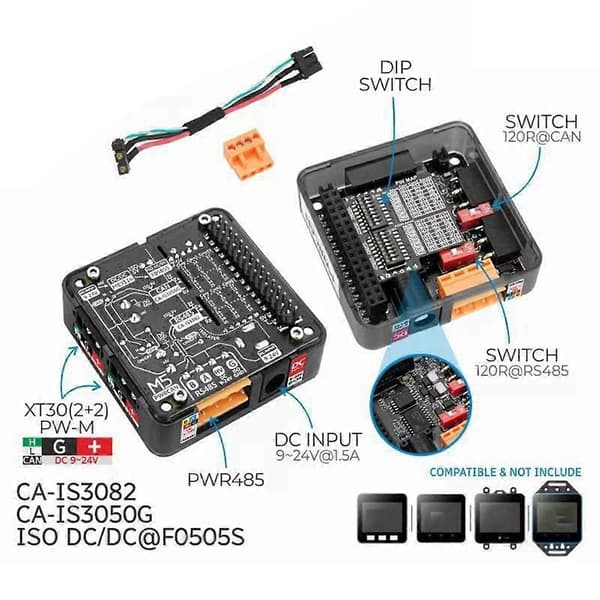

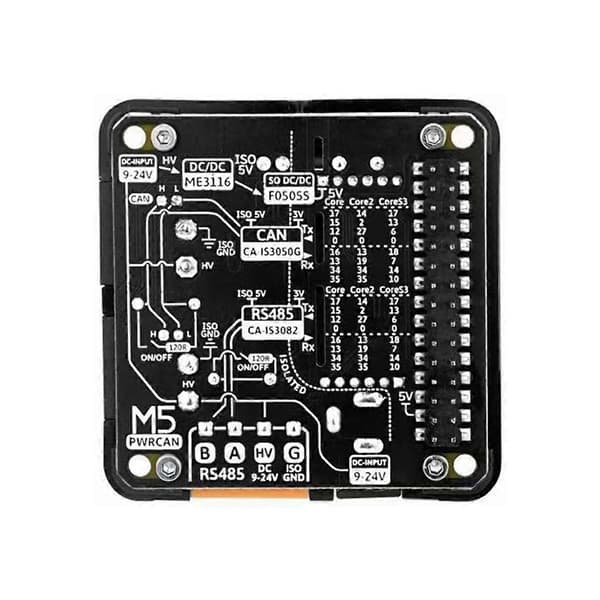

4.The GPIOs associated with CAN and RS485 communication can be selected via DIP switches, and 120-ohm terminal resistors can be connected in parallel at the CAN and RS485 sockets via DIP switches

5.The module's power bus supports a wide input voltage range of DC 9 - 24V, with the DC jack directly connected to the HT3.96 and XT30 power parts



The module provides power to the M5 host through the built-in isolated power module F0505S-2WR3

This module is suitable for applications such as robot control, protocol conversion, industrial automation, vehicle communication systems, intelligent transportation, and building automation

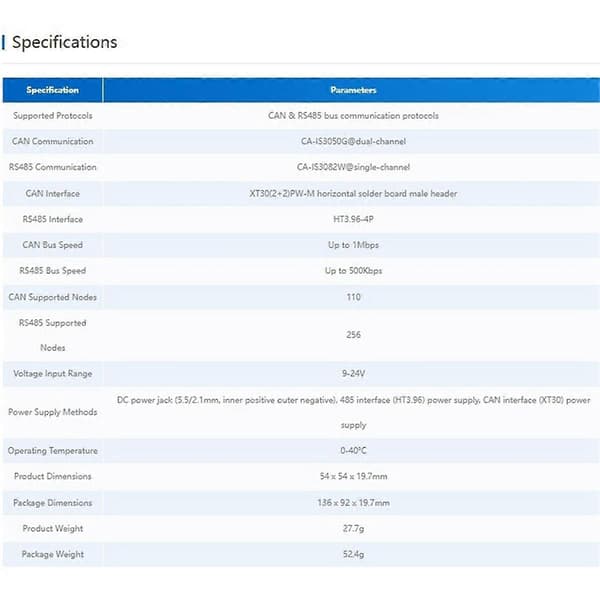

Isolated CAN bus (dual-channel)

Isolated RS485 bus

Signal isolation

Isolated power supply

Multiple power interfaces

Wide input voltage range (9-24V)

CAN/RS485 communication pin switch DIP switch

Applications:

Robot control

Protocol conversion

Industrial automation

Vehicle communication systems

Intelligent transportation

Building automation
