Simple and quick installation

Fast heat dissipation, simple and easy to use

CPU model: Allwinner H3

Number of cores: Quad-core

Frequency: 4*-A7 Up to 1.2GHz



Memory RAM: 512MB

Storage Micro-SD card slot: Micro-SD*1 for external storage up to 128GB

Connectivity Ethernet: 10/100M Ethernet

Audio input/output Port: 5Pin, 2.0mm pin header

USB Micro-USB*1: Micro-USB 2.0, OTG & Power input, Type A

USB host: 2.0 Type A*1, 2.54 mm pin*2

Pin header GPIO: 2.54mm pin pitch 36pin. It includes UART, SPI, I2C, IO etc

Serial debug port: 2.54mm pin pitch 4-pin-header

Audio input/output Port: 2.0mm pin pitch 5-pin-header

LED Power LED(Red)*1 System LED(Green)*1

Other Operating temperature: -20 to 70

Power Micro-USB DC 5V/2A

OS support FriendlyCore(based on UbuntuCore-16.04)

OpenWrt 18.06

Armbian

DietPi

Lakka



version Linux-4.4-

U-boot-2017.11

(The development board bracket is transparent and the color of the protective film on the outside is random, do not accept the specified)

Due to different batches, there may be differences in product appearance and printed text, which does not affect use

Color: As Shown

Material: PCB

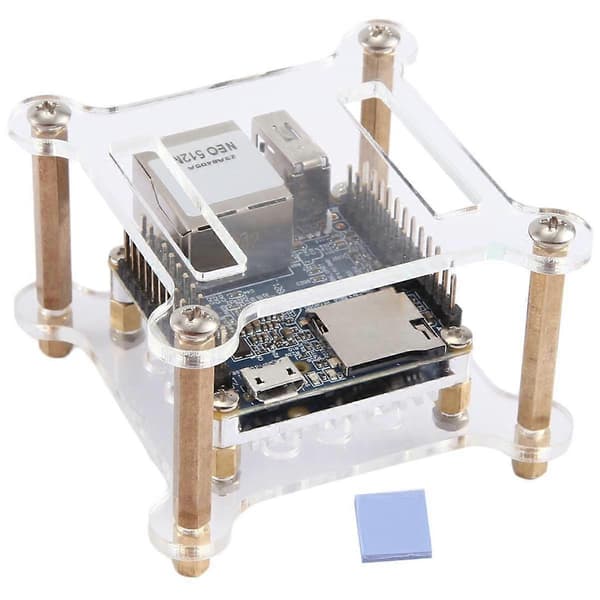

Package contents:

1 x Motherboard

1 x Heat sink

4 x Screws and nuts

1 x Silicone patch

1 x Acrylic top panel

1 x Acrylic base

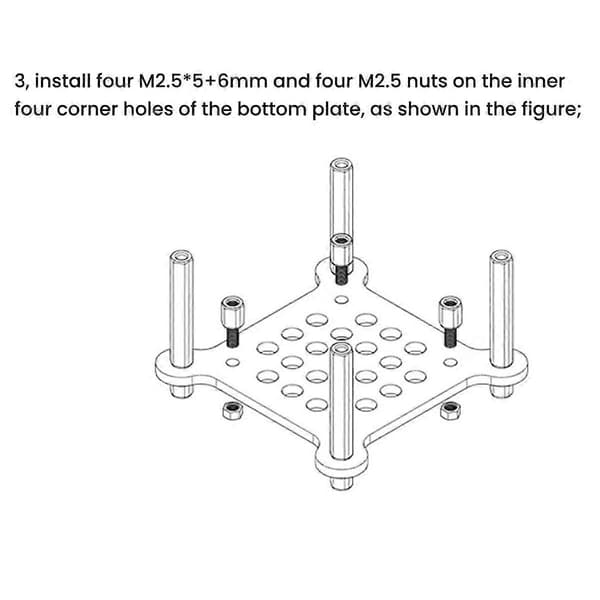

4 x M25 X 5+6mm unidirectional copper post

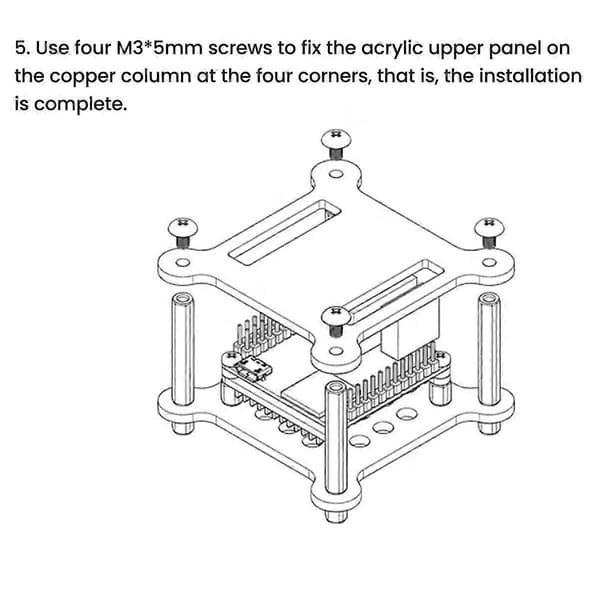

4 x M3 X 5mm screws

4 x M3 X 6+6mm unidirectional copper post

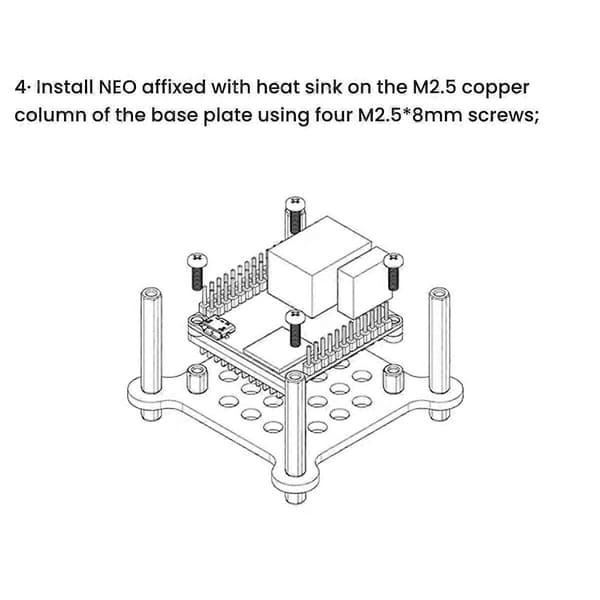

4 x M2.5 X 8mm screws

4 x M2.5 screws

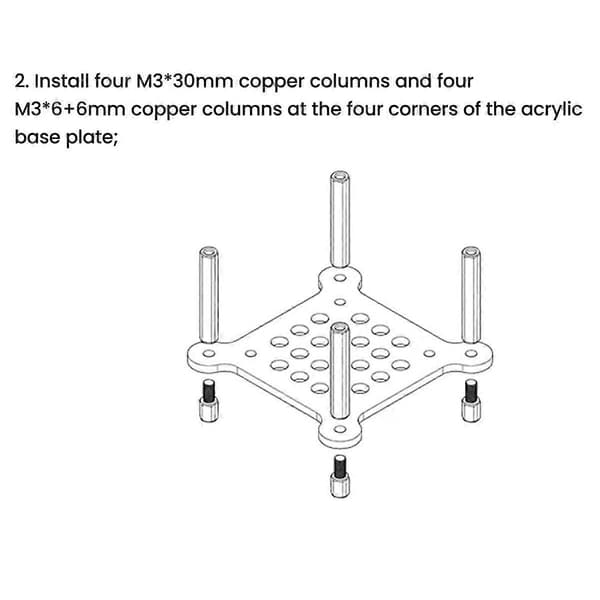

4 x M3 X 30mm bidirectional copper post



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
