Features:

1. Application: This resistor is placed at the end of the network's backbone cable and is waterproof enough to continue functioning even when submerged in the bilge.
2. Fitment: Replacement for Lowrance Network, for Simrad Network, for B G Network, for Navico Network, for Garmin Network.
3. Wide Compatibility: The resistor is NMEA 2000 certified and it is universal and compatible with other manufacturers' products.
4. Premium Material: This resistor is made of premium ABS and metal materials, which is oil resistant, corrosion resistant and durable to use.
5. Easy to Use: Simple installation, no complicated operations, direct replacement and use, convenient to use.

Specification:

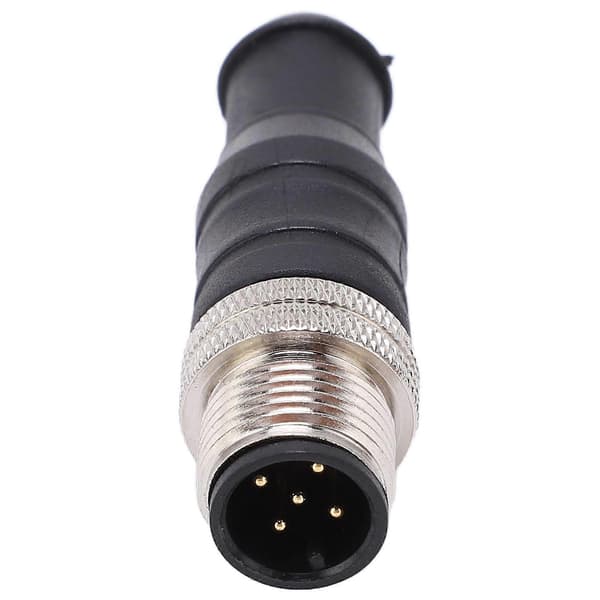

Item Type: For NMEA 2000 Male Termination Resistor r
Material: ABS and Metal r
Number of Connector Cores: 5 r
Waterproof Rating: IP67 r
Connector Size: M12 r
Adaptable Wire Thickness: 22AWG/0.34mm2 r
Applicable Current: 4A contact r
Conductor: copper gold plated for use r
Voltage: 60V r
Applicable Temperature: -40 C ~ + 90 C r
Insulation Resistance: 100 M r
Sealing Method: O-type sealing ring r
Conductor Resistance: 5m r
Fitment: r
for NMEA 2000 certified r
r
for Lowrance Network r
for Simrad Network r
for B G Network r
for Navico Network r
for Garmin Network

Package List:
1 x Termination Resistor
