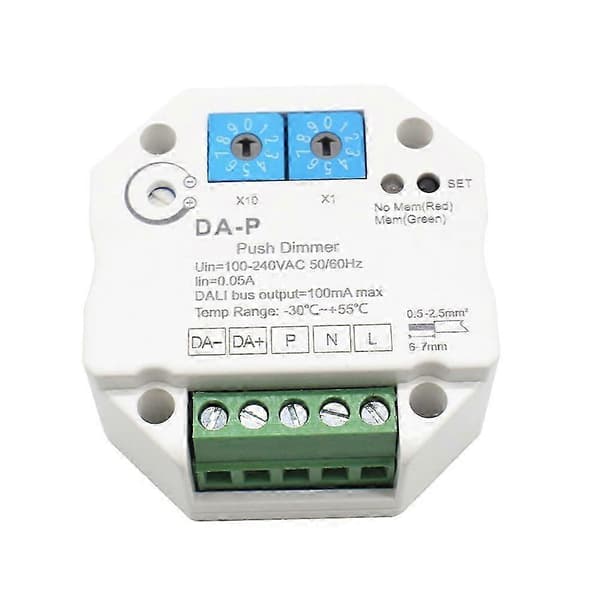

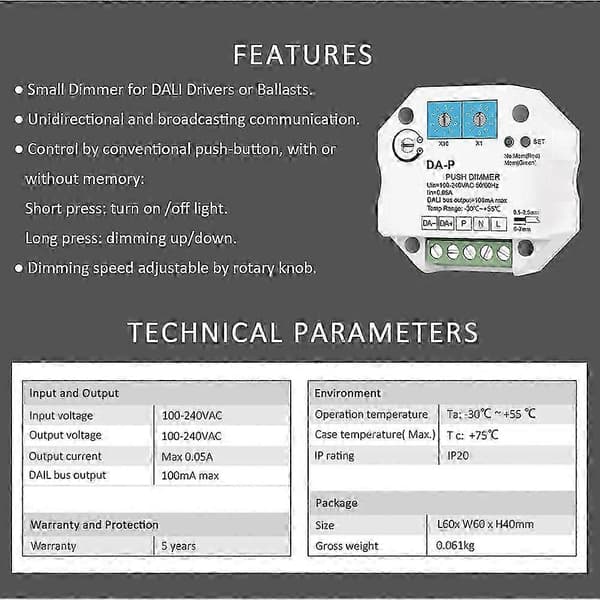

Small dimmer for drivers or ballasts.

Unidirectional and transmitting communication.

Control with conventional push button, with or without memory: Short press: turn on/off the light. Long press: dim up/down.

Dimming speed adjustable with rotary knob.

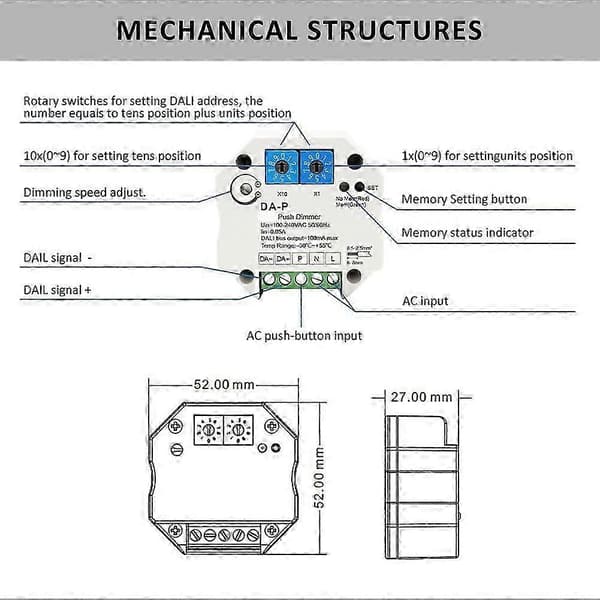

For address setting

1. Address value = Value of left rotary switch x 10 + value of right rotary switch.

Example: The value of the left rotary switch is 5, the value of the right rotary switch is 4, address value = 5 x 10 + 4 = 54.

2. Unicast mode: Address values 0-63 correspond to addresses 00-63.

Group mode: Address values 70-85 correspond to groupings 0-15.

Broadcast mode: The value of the left rotary switch is 9.

PUSH dimming speed setting

1. The closer to \"+ \" the faster the PUSH dimming speed.

2. The closer to \"- \" the slower the PUSH dimming speed.

Memory function setting

Short press the \"SET \" button to toggle the memory function.

1. Without memory: The LED indicator is red, PUSH dimming and then power on again, the light returns to maximum brightness.

2. With memory: The LED indicator is green, PUSH dimming and then power on again, the light restores the last brightness.

Factory setting: Without memory

Push button function

Short press: Turn on/off the light.

Long press: Dim up/down

& Warnings

DO NOT install with power to the unit.

DO NOT expose the unit to moisture.

Color: White

Material: plastic

Package contents:

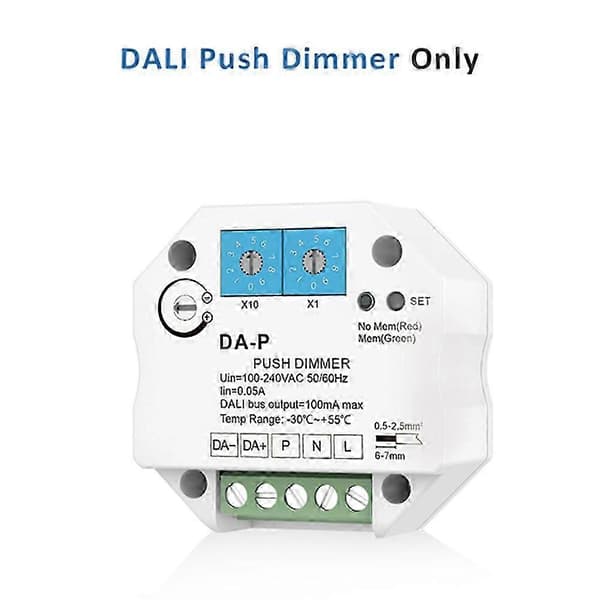

1 x LED dimmer (Due to different product batches, the appearance may vary, which does not affect use)

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The allowed measurement error is +/- 1-3 cm.
