Description

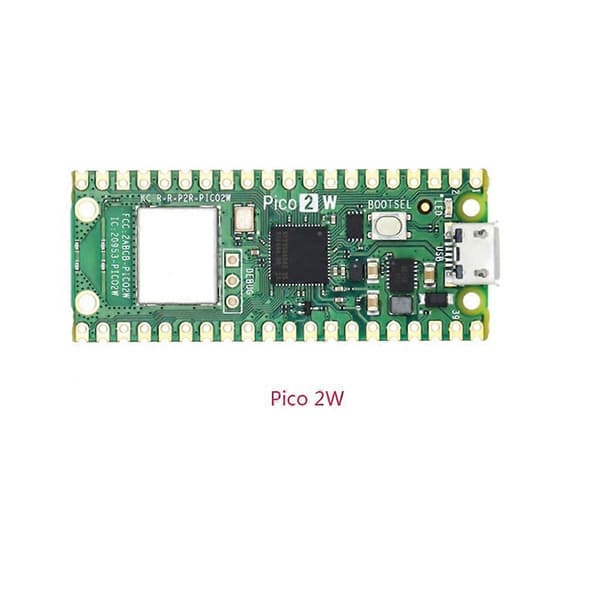

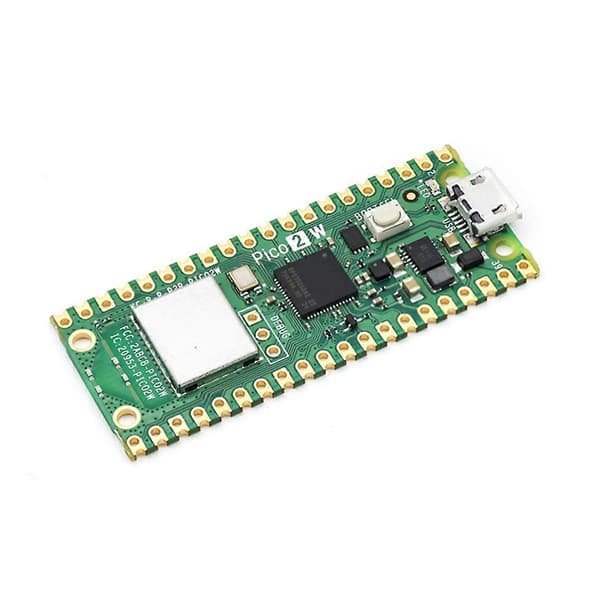

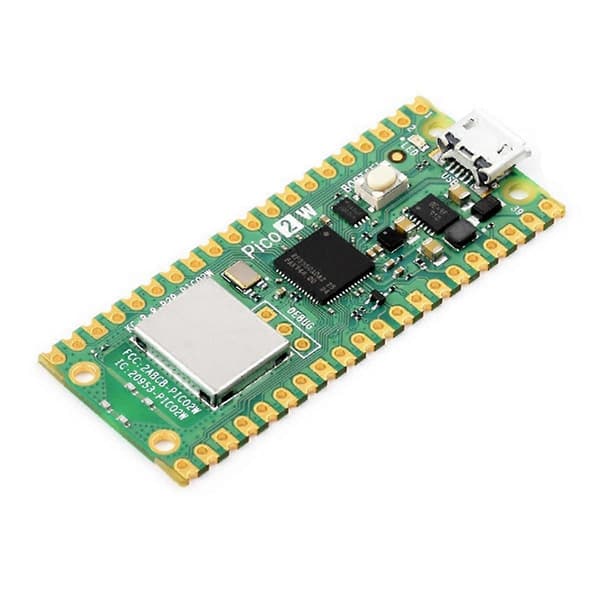

For Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces.

Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.

The development board uses the RP2350 microcontroller chip designed by Raspberry Pi.

Uses a unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz

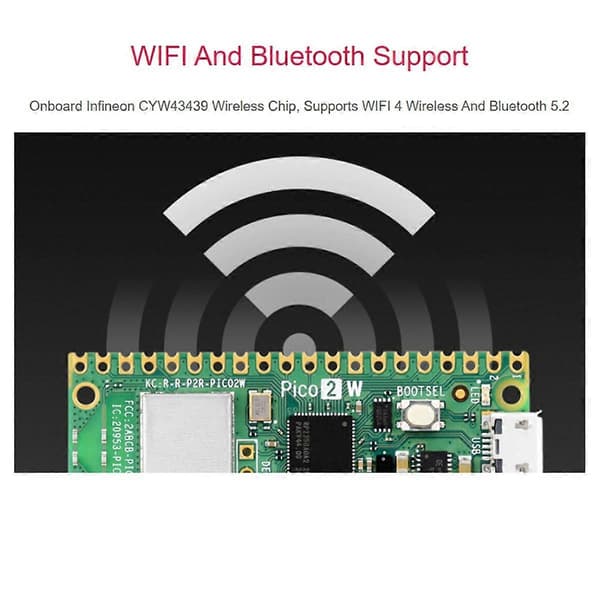

Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2



520KB SRAM, and 4MB onboard Flash memory

Castellated module allows direct soldering to carrier boards

USB 1.1 with device and host support

Low-power sleep and dormant modes

Drag-and-drop programming using mass storage over USB

26 x multi-function GPIO pins

2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels

Temperature sensor

12 x Programmable I/O (PIO) state machines for custom peripheral support

Different batches may cause differences in printing/appearance, which does not affect use; the actual product may have color differences due to different lighting or display

Color: Green

Material: PCB



Package Contents:

1 x Microcontroller Development Board



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
