With a reputation for quality and reliability, UUUSTORE has been tested and developed by FPV pilots for FPV pilots.

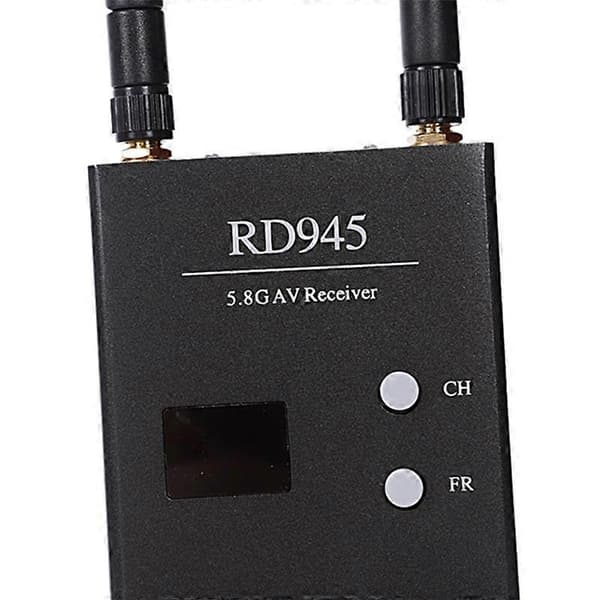

The RD945 Diversity receiver is nice and small in size for easy integration into your ground station, but big in quality and features. There are two AV outputs for both audio and video. So you can use a monitor and a pair of goggles or maybe a DVR to record your flight, perfect for when your partner asks where you were for the past 4 hours!

Powering the receiver is as simple as connecting a 3-cell lipoly to the included pre-wired cable with mini JST. It doesn't get any easier than this.

Color: Black

Material: plastic



Features: 48 channels: Covers A, B, C, D, H, and L bands

Diversity receiver

Two toggle buttons for band and channel

Two-digit display for band and channel

Power-off memory for last channel and band

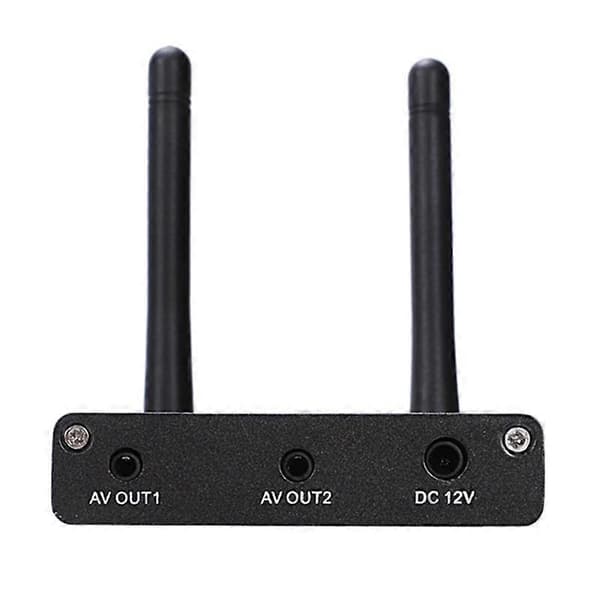

Dual video and audio signal outputs

Specifications:

Supported video format: NTSC/PAL/CECAM

Antenna connectors: RP-SMA jack

Power input: 7~24V

Working current: 280mA max

Rx sensitivity -90dBm

Video impedance: 75

Dimensions: 80x 65 x15mm

Frequency range:

FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M

FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M

FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M

FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M



Package contents:

1 x RD945 Diversity receiver

1 x A/V cables

1 x 2 dipole antennas



Only the above package content, others are not included.

Note: Light reflection and different displays may cause the color of the item in the picture to be a little different from the real thing. The allowed measurement error is +/- 1-3 cm.
