Specifications:
1) Distance: 50-150 meters.
2) Very small size: 5.5 cm x 4.5 cm x 1.0 cm.
3) One receiver can work with 400 codes.
4) It does not interfere with other remote controls and receivers.
5) Brand selector: With 8 dip switches, the user can create different combinations for different remote controls. Power supply selector: This receiver can work at AC/DC 9V~30V. However, it is better to change the PIS according to the power supply. If the input is greater than 24V, shorten pins 2&3; shorten 1&2 if the input is less than 24V.

Color: white + black
Material: ABS

Program a new remote control
1) Select the correct brand for the remote control to be programmed by moving the dip switches UP or DOWN. For example, 433.92Mhz remote controls, just move Dip switch 7 UP.
2) Press the learning button. The LED light will turn on.
3) Press the button on the remote control, the LED light will flash 4 times. This means the remote control was programmed correctly.
4) Repeat for another button.
5) The second channel programming procedure is the same.

Delete all data from the memory card: Press and hold any of the learning buttons. The LED light will start flashing. Keep the button pressed until the LED light turns off. All saved data on the memory card will be permanently deleted and cannot be recovered.

Compatible:
All 433.92mhz fixed code remote controls.

Package contents:

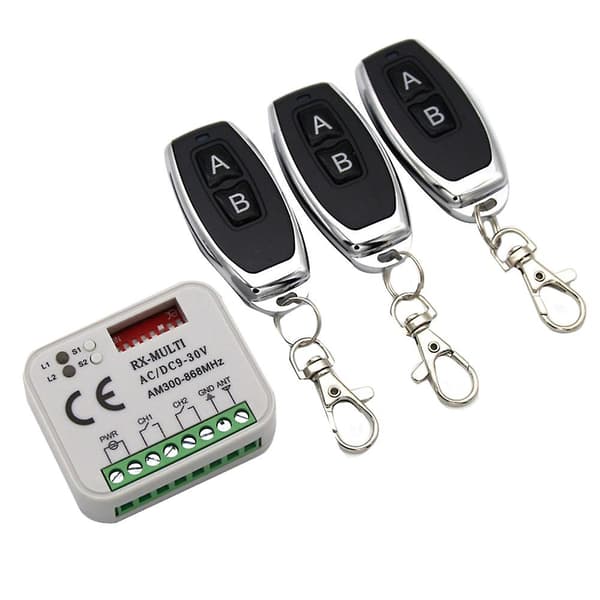

1 x Receiver
3 x Remote control

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture to be a little different from the real thing. The allowed measurement error is +/- 1-3cm.
