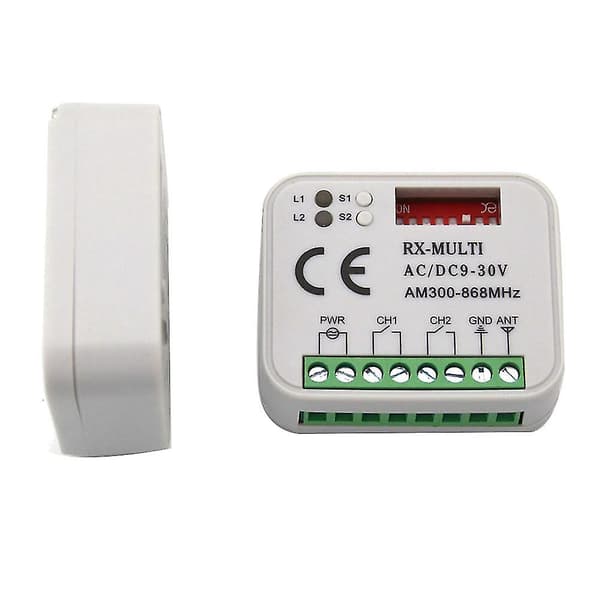

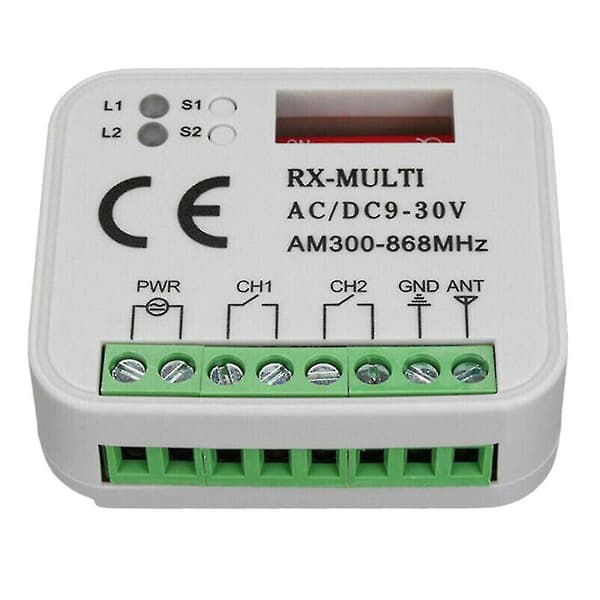

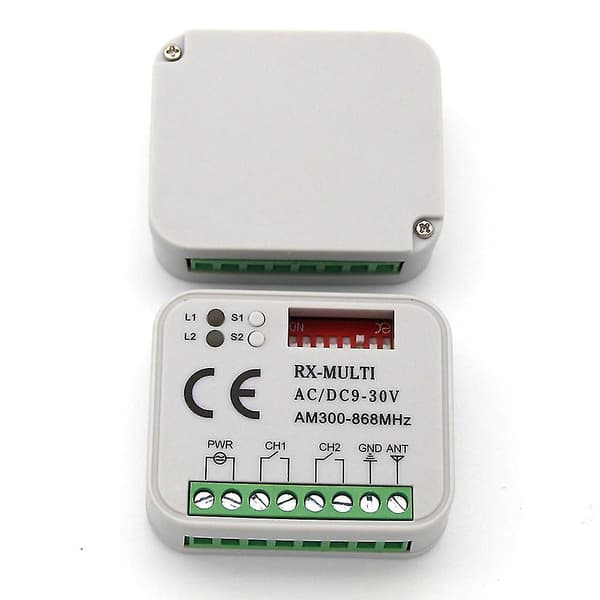

Specifications:
1) Distance: 50-150 meters.
2) Very mini size: 5.5cm x 4.5cm x 1.0cm.
3) One receiver can work with 400 codes.
4) It doesn't interfere with other remotes and receivers.
5) Brand selector: With 8 dip switches, the user can make different combinations for different remote brands. Input selector: This receiver can work at AC/DC 9V~30V. However, it's better to change the PIS according to the input. If the input is greater than 24V, shorten pin 2&3; shorten 1&2 if the input is less than 24V.
Color: white + black
Material: ABS
Programming a new remote
1) Select the correct brand for the remote to be programmed by moving the dip switches UP or DOWN. For example, 433.92Mhz Marantec remotes, just move Dip switch 7 UP.
2) Press the learning button. The LED light will turn on.
3) Press the button on the remote, the LED light flashes 4 times. This means the remote was programmed successfully.
4) Repeat step 2 for another button.
5) The second channel programming procedure is the same.
Erase all data from the memory card: Hold down any of the learning buttons. The LED light starts flashing. Keep holding the button until the LED light turns off. All saved data on the memory card is permanently deleted and cannot be recovered.
Compatible:
All 433.92mhz fixed code remotes.

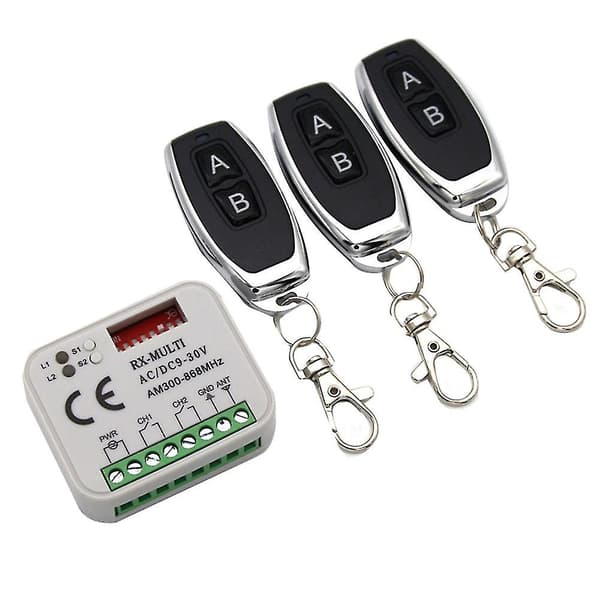

Package Contents:
1 x Receiver
3 x Remote Control
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
