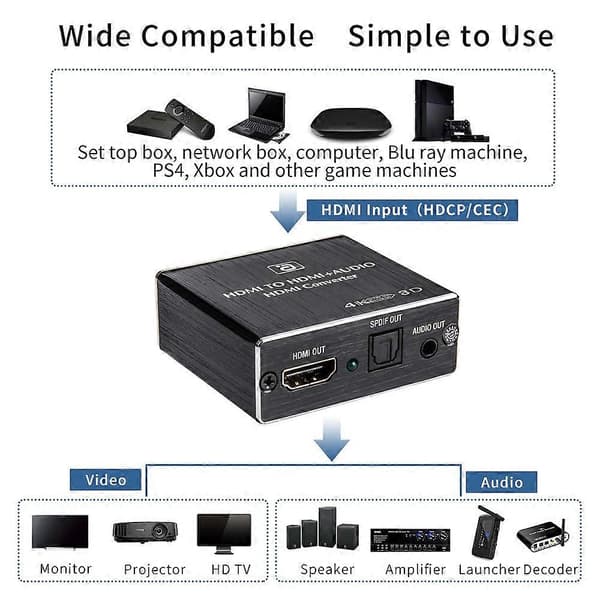

This HDMI audio converter can extract the audio signal embedded in HDMI sources and convert it to 3.5mm analog audio output and SPDIF output simultaneously.
The SPDIF output supports both 2 CH audio and 5.1 CH audio including Dolby Digital 5.1 CH and DTS 5.1 CH.
The HDMI output supports 7.1 CH audio including Dolby Digital 7.1 CH and DTS 7.1 CH.
Ultra-long distance transmission up to 40 meters (input + output), no signal loss.
99% do not need external power supply, plug and play, more convenient, more environmentally friendly.
Input ports: 1 x HDMI, 1 x Micro-USB power port, 3 x EDID Audio (pass, 2 CH, 5.1 CH)

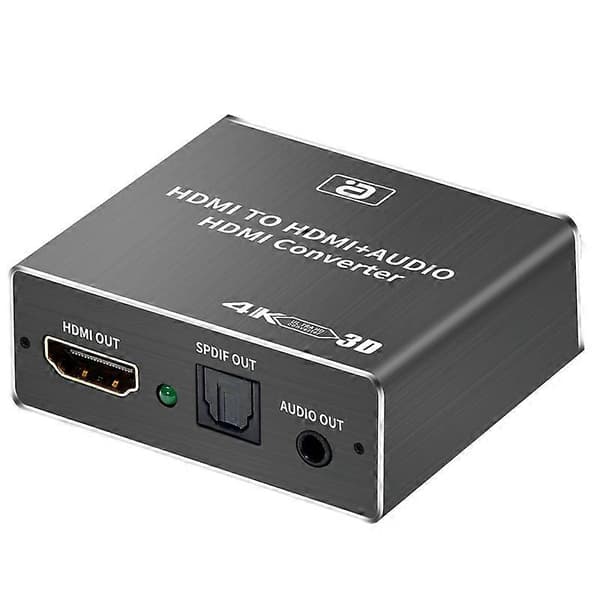

Output ports: 1 x HDMI, 1 x SPDIF (optical), 1 x 3.5mm jack.
HDMI resolutions: 4K x 2K, 24/50/60/1080P/1080i/720p/576p/576i/480p/480i
Supported color format: 24 bit/deep color 30 bit, 36 bit
Max bandwidth: 225 MHz
Max baud rate: 6.75 Gbps
Max working current: 190 mA
Audio and video can be converted from the HDMI output
Pass: supports 7.1 channel output, the device reads the HDMI OUT audio signal directly
2CH: 2.1 stereo channel output
5.1CH: optical fiber 5.1 digital surround sound (DTS, Dolby, AC3) and other outputs; Supports 24bit / 192Khz audio sampling rate
Name: audio extractor
Outputs: RCA
Outputs: 3.5mm
PCM word length: 16-bit
Inputs: HDMI
Inputs: USB Type-B
PCM word length: 24-bit
Model number: HD360
Input format: DTS/AC3/5./7.1
D/A converter: EP
Color: Black
Material: metal
Size: 51 x 56 x 22 mm

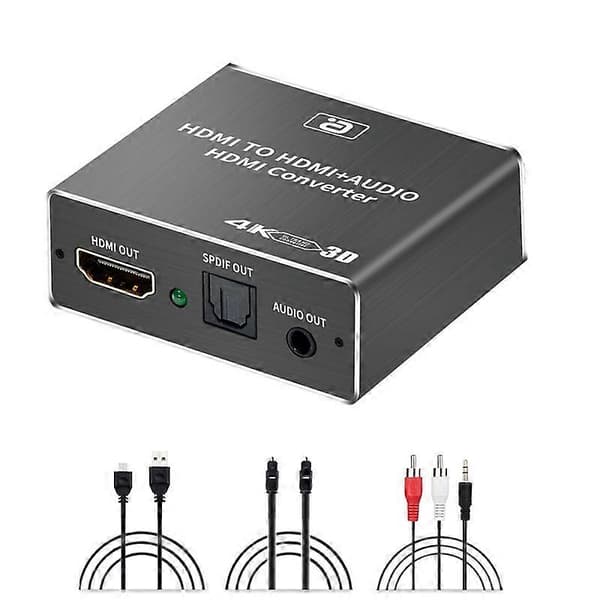

Package contents:
1 x audio converter
1 x Optical audio cable
1 x 3.5mm to RAC audio cable
1 x micro-USB cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
