Product Specifications:
Single gross weight: 16.4g
Interface: RJ45 nickel-plated interface, HDMI gold-plated interface
Shell: PVC material
Parameters: Supports 1080P, supports 165MHz/165Gbps, single channel (4.95Gbps all channels), broadband support 8bit single channel (24bit all channels), supports uncompressed
Features:
This HDMI extender has many features that make it perform superiorly. Among these features you will find.
1. A pair as a fully functional module, no need for setup
2. CAT-5E/6 cable can replace HDMI cable to achieve long-distance transmission
3. Comply with the standard IEEE-568B
4. The transmission distance can be up to 30 meters for 1080P using CAT-6 cable
5. Compact size
6. Signaling rate up to 2.5Gbps with support for 1080P display
7. No need for additional power supply
8. HDMI audio and video synchronization technology, audio and video synchronization more shocking, instantly feel the cinema-like audiovisual feast

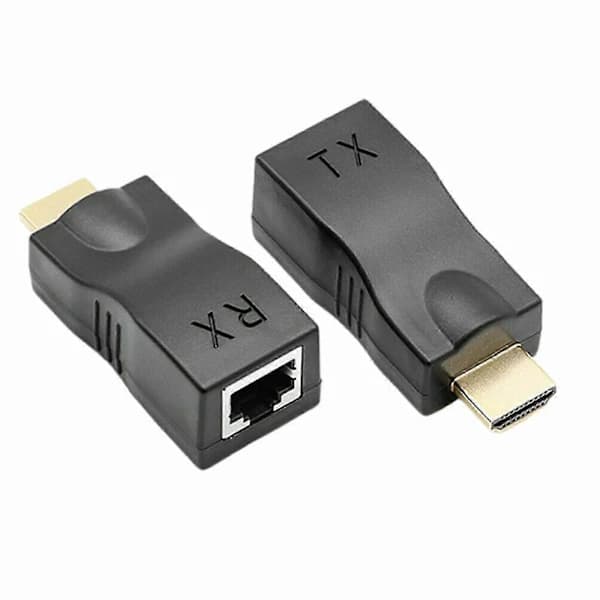

9. HDMI extender consists of transmitter (TX) and receiver (RX), through a CAT-5/6 or more pure copper twisted pair cable, HDMI signal transmission can occur to a distance of 1-30 meters, high-fidelity real-time transmission, built-in anti-lightning anti-interference circuit
10. Widely used in: high-definition TV, set-top box, DVD, projection and factory, data monitoring center, large conference and exhibition centers with HDMI interface equipment
Connection and operation:
1. Connect the fixed HDMI connector of the transmitter to the HDMI input source such as: HD-DVD, PS3, STB etc.
2. Connect a single CAT-5E/6 cable to both the transmitter's output and the receiver's input
3. Connect the receiver's fixed HDMI connector to the HDMI display (such as: HD-LCD, HD-DLP)
Packaging:
1x HDMI signal TX adapter
1x HDMI signal RX adapter
