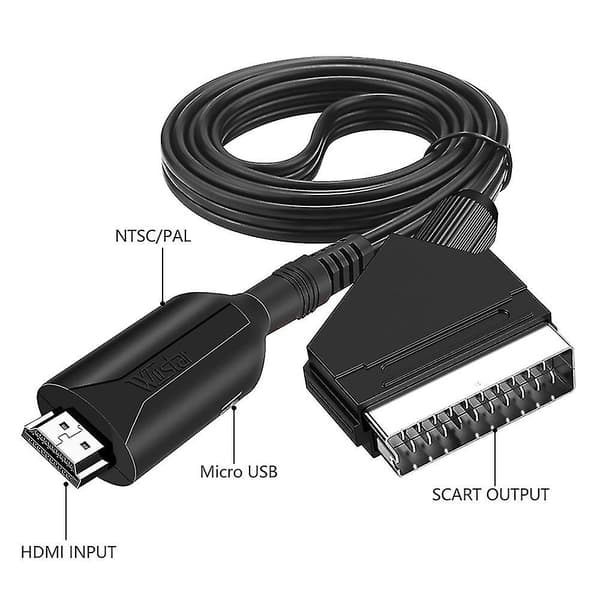

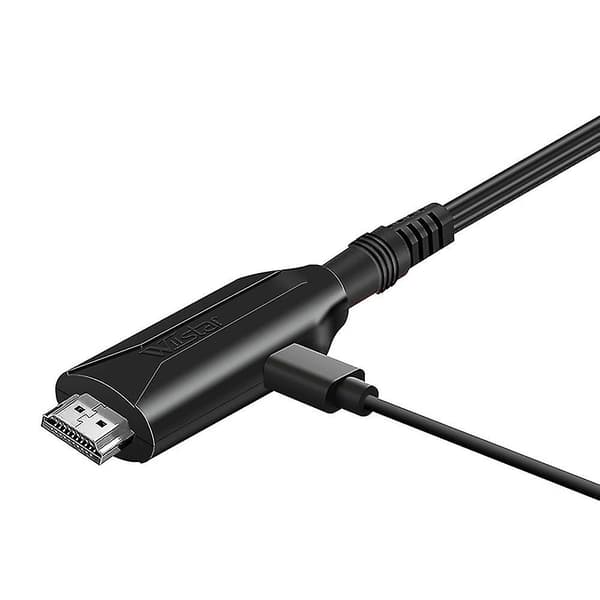

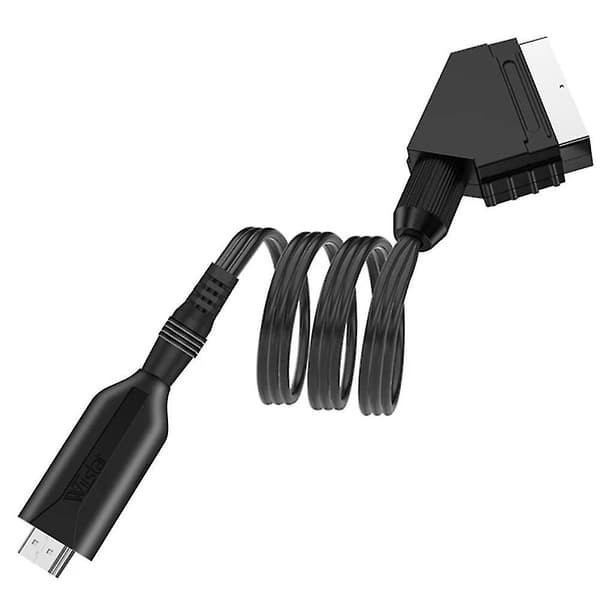

The HDMI to SCART converter converts HDMI video signals or audio signals to SCART composite video signals, while also supporting DVI system sideline signals.
It helps the user convert the high quality of the HDMI video signal to regular SCART (standard resolution 480i, 576i).
This allows playback on TV, VHS VCRs, DVD recorders, etc., and supports six video modes: PAL_B/N/M and NTSC_M/J/Nc, and also supports SCART
1.1 Features
1. No need to install drivers, portable and flexible, just plug and play.
2. Low power consumption and no power adapter required.
Please note: When the converter is connected to certain devices (such as Sony Blu-ray DVD, XBOX360, PS4 and so on)
that cannot provide enough power via the HDMI port, the converter needs additional power supply via the USB cable.
3. Compatible with HDMI 1.3.
1. Inputs: 1 HDMI.
2. Outputs: 1 SCART
HDMI input resolution:
600×480@60Hz, 800×600@60Hz,
1024×768@60Hz, 1280×720@60Hz,
1280×1024@60Hz, 1360×768@Hz,
1920×1080@60Hz,
480i/60Hz,480i/60Hz,
576i/50Hz,576P/50Hz,
720p50/60Hz,1080i50/60Hz,1080p50/60Hz.
6. SCART output: PAL NTSC
MODE button: Pressing the button changes the video mode of the output video.
