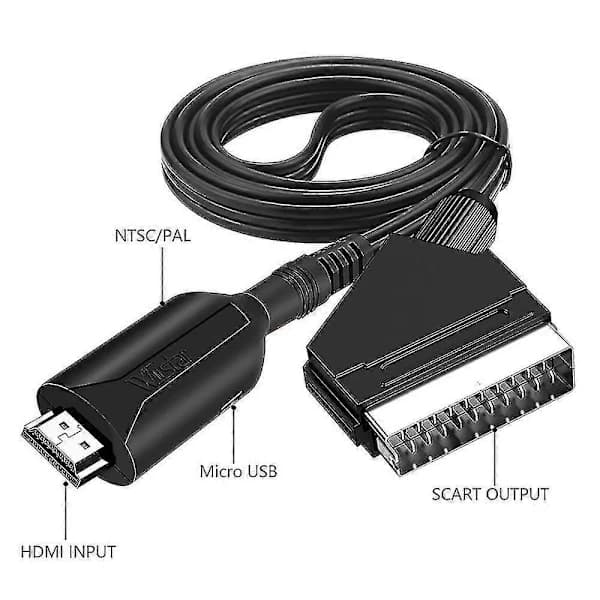

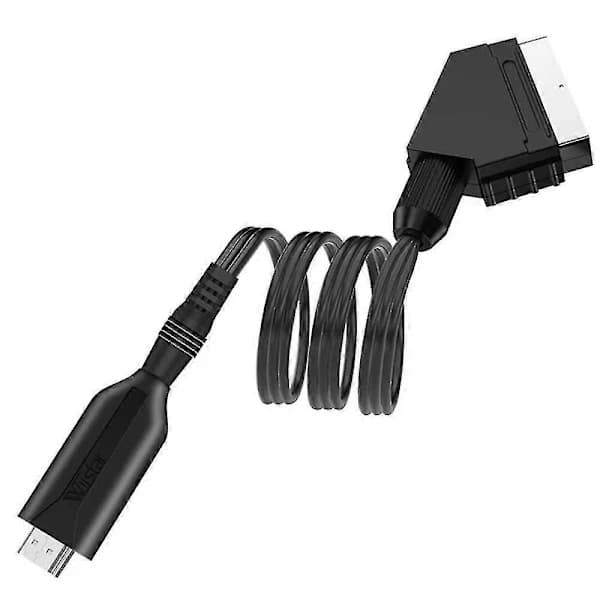

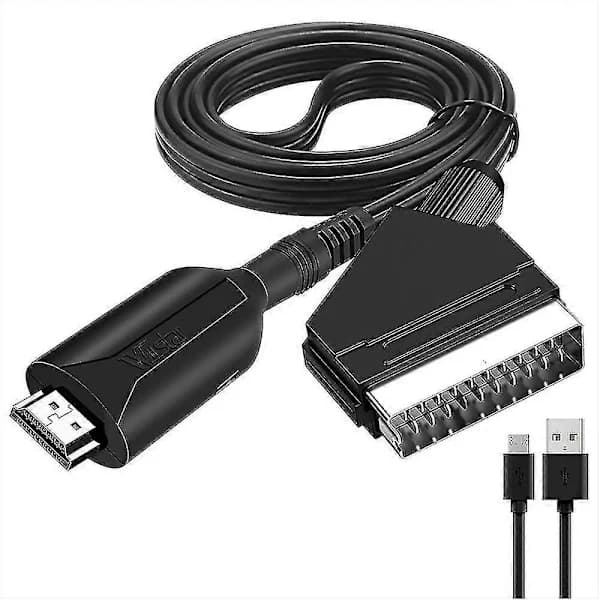

An HDMI to SCART converter converts HDMI video or audio signals to SCART composite video signals, while also supporting DVI system bypass signals.
It helps users convert high-quality HDMI video signals to standard SCART (480i, 576i).
This allows playback on devices such as TVs, VHS recorders, and DVD recorders, supporting six video modes: PAL_B/N/M, NTSC_M/J/Nc, and a SCART interface.
1.1 Features
1. No driver installation required, portable and flexible, plug and play.
2. Low power consumption and no power adapter required.

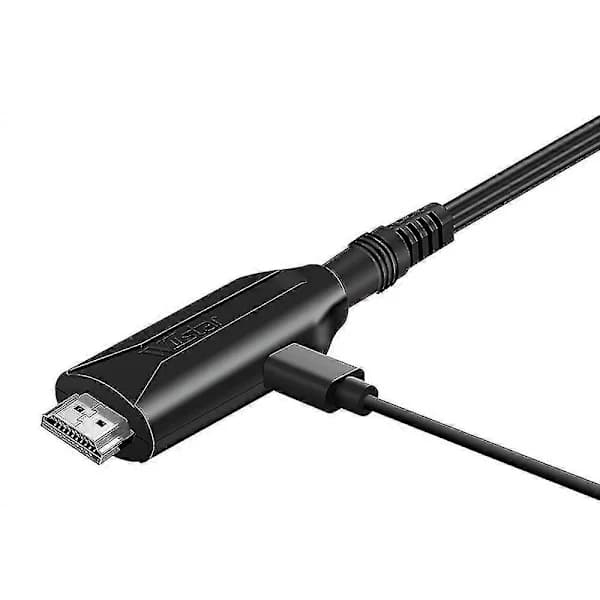

Note: When the converter is connected to certain devices (e.g., Sony Blu-ray DVD, XBOX360, PS4, etc.),
the HDMI port may not provide sufficient power, requiring additional power via a USB cable.
3. Compatible with HDMI 1.3.
1. Input port: 1 HDMI port.
2. Output ports: 1 SCART interface
HDMI input resolutions:
600x480@60Hz, 800x600@60Hz,
1024x768@60Hz, 1280x720@60Hz,
1280x1024@60Hz, 1360x768@Hz,
1920x1080@60Hz,
480i/60Hz, 480i/60Hz,
576i/50Hz, 576P/50Hz,
720p50/60Hz, 1080i50/60Hz, 1080p50/60Hz.
6. SCART output: PAL NTSC
MODE button: Pressing this button changes the video mode to output video mode.
