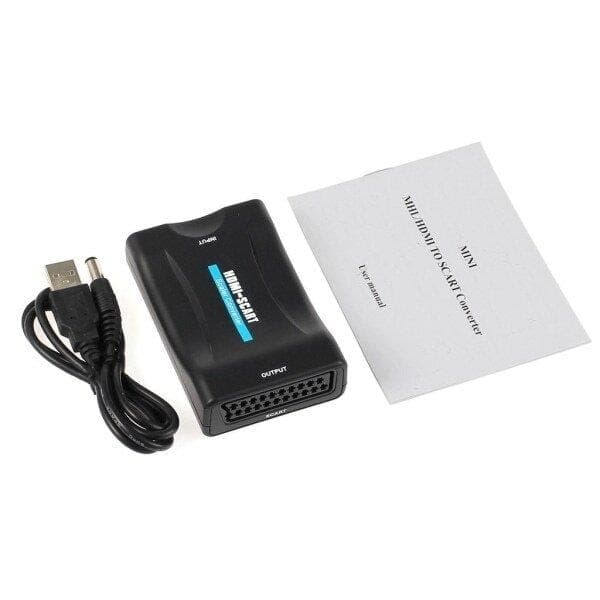

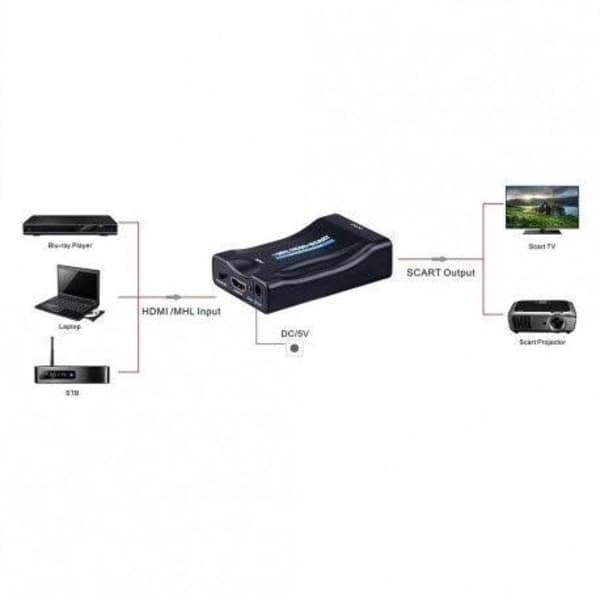

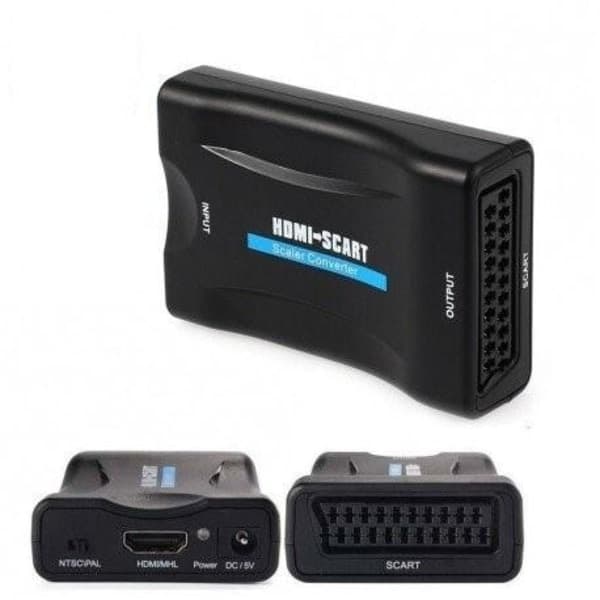

Converts HDMI to analog signal: Now you can watch your photos and videos from devices with HDMI ports, such as laptops or Blu-Ray players, even on an older TV, VHS/VCR, projector, or DVD recorder. The adapter converts digital HDMI and MHL signals to analog SCART signals (CVBS). User-friendly signal converter: The converter is very easy to use. Plug-and-play – just connect it, no drivers required. Support for NTSC and PAL: This HDMI to Scart converter supports the standard TV formats NTSC and PAL. The signal converter is compatible with HDMI 1.3b and older. Includes USB cable for power supply via computer or power adapter. Specifications: Input: 1 x HDMI Output: 1 x SCART Input resolution: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p23.97/24/25/50/59.94/60Hz. Output format: PAL, NTSC Dimensions: 88mm x 58mm x 26mm IMPORTANT TO REMEMBER: The adapter does not convert in both directions. This adapter converts from HDMI to Scart, not the other way around. In that case, you need a Scart to HDMI converter! Package contains: 1 x HDMI to SCART adapter 1 x USB charging cable (for connection to a wall outlet, you also need a power adapter) 1 x User manual What does an HDMI to SCART converter do?
HDMI is currently one of the most used interfaces for audio and video transmission; it offers not only high resolution for images, movies, and sound, but also fast transmission. However, not all households have a TV or other desired screen with an HDMI input. Old TVs and other devices with a SCART interface are still in use. Therefore, the question arises: Can I make my HDMI device compatible to, for example, use an old TV?

HDMI (High Definition Multimedia Interface) is an interface that enables fully digital transmission of audio and video to a screen. This means that both audio and video data must be in digital form so that an HDMI cable can recognize the data and forward it to other devices.

SCART (Syndicat au Constructeurs d'Appareils) is an older interface that was often used in TVs and VCRs. The great advantage of the SCART interface was that it supported various analog transmission paths, such as composite video, S-video, or RGB. However, SCART cannot handle digital transmission methods. In contrast to the HDMI interface, only analog signals are transmitted here, for example from the VCR to the TV. Both signals – audio and video – must therefore be in analog form.

For the SCART input on an older screen to be able to process the digital signals from a newer device with an HDMI output, these must first be converted to analog signals. For this, you need a so-called HDMI to SCART converter. Due to the incompatibility between analog and digital transmission, a \"mechanical\" adapter cable is not enough to transmit video from HDMI to SCART; a device that converts the signals is required. (With a regular cable from HDMI to SCART, either the quality loss would be significant or the transmission would not work at all.)

But with the help of an HDMI to SCART converter, all digital audio and video data can be converted to analog. Simply connect both devices to the converter, and it will take care of converting the incoming digital signals and outputting them in analog. With an HDMI to SCART converter, you can conveniently continue to use your old devices!
