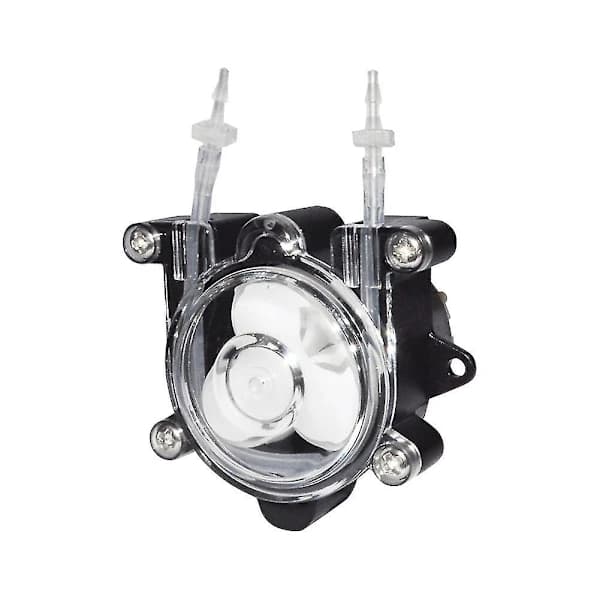

Small dosing pumps have self-priming function, no valves or seals, convenient hose replacement, easy maintenance.

Positive and negative support: replace the positive and negative power supply, can reverse the pump.

The dosing pump is usually used in the fields of experiment, biochemistry, pharmaceuticals, fine chemicals, biotechnology.

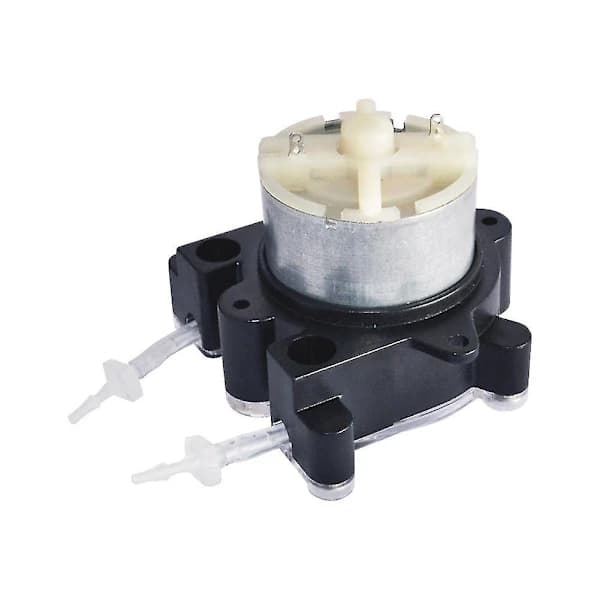

Efficient motor with stable performance in output, reduced operating noise, use the buckle without screw for convenient disassembly and assembly.

Stainless steel screws, anti-rust. The pump is designed for easy disassembly, easy to wash and maintain.

Type: B

Applicable power: DC 12 volts

Working environment: 0-40 ℃

Relative humidity: Less than 80%

Pump hose (inner x outer diameter): 3 x 5mm

Flow range:

Type B: 25-70ml/min

Speed range: 0.1-60rpm

Current:

Type B: 250-300mA

Motor size: 32 x 23mm / 1.3 x 0.9 inches

Installation hole distance: 48.5mm / 1.9 inches

Color: Black

Material: plastic + metal

Package contents:

1 x Peristaltic pump

Only the above package content, others are not included.

Note: Light reflection and different displays may cause the color of the item in the picture to be slightly different from the real thing. The allowed measurement error is +/- 1-3cm.
