1、3 TYPES OF SOUND CHANNELS: This is a power amplifier board that uses DC single power supply 12‑24V, with TPA3116D2 high performance digital power amplifier chip as the core 2、OUTPUT POWER: One part for parallel bridge bass channel power amplification output, one part for left and right channel power amplification output. Can support 100W (bass channel) + 50W (left channel) + 50W (right channel) three channel output 3、SOUND PROCESSING: Bluetooth Amp supports Bluetooth audio reception, external audio source input interface, with pre-stage amplification, bass frequency division processing 4、POTENTIOMETER SITUATION: A total of 5 potentiometer adjustments, including bass volume, bass frequency, left and right channel volume, treble, function control switch or total volume 5、ENERGY SAVING AND HIGH EFFICIENCY: Wide working voltage, energy saving design, efficiency up to 90%. Can use good performance switching power supply, laptop switching power supply, but also can use battery or car power supply

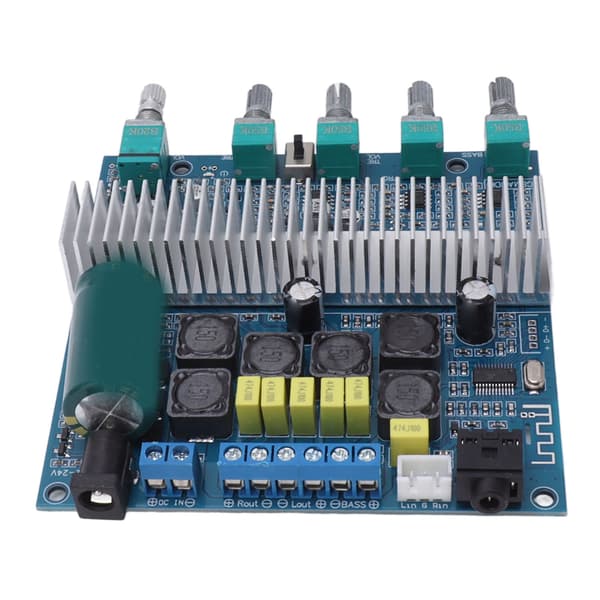

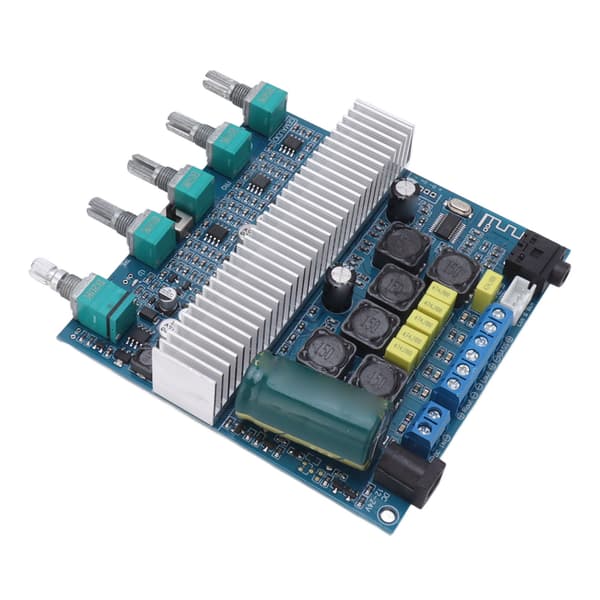

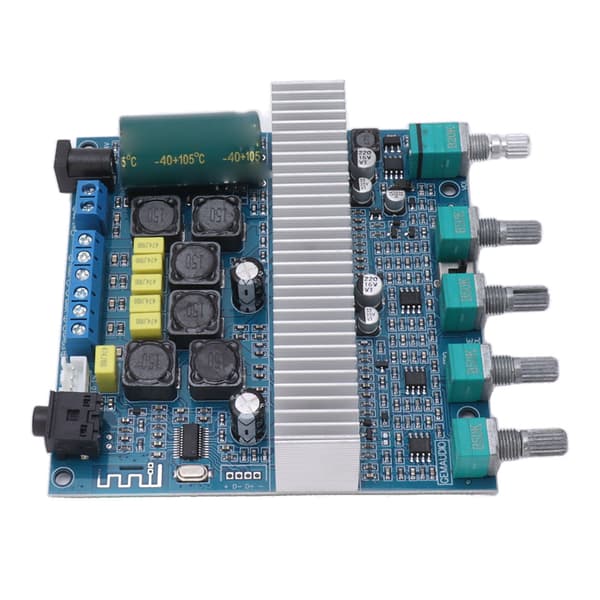

Item Type: Subwoofer Amplifier Board
Product Material: PCB
Bluetooth Receiving Distance: > Approx. 8 meters / 26.2ft, version 5.0
Audio Input Sensitivity: 600-800mV, Frequency Response: 20Hz-20KHz
Horn Impedance: Left and right channel: 4-8Ω, Bass channel: 2-8Ω
Operating Voltage Range: DC12-24V

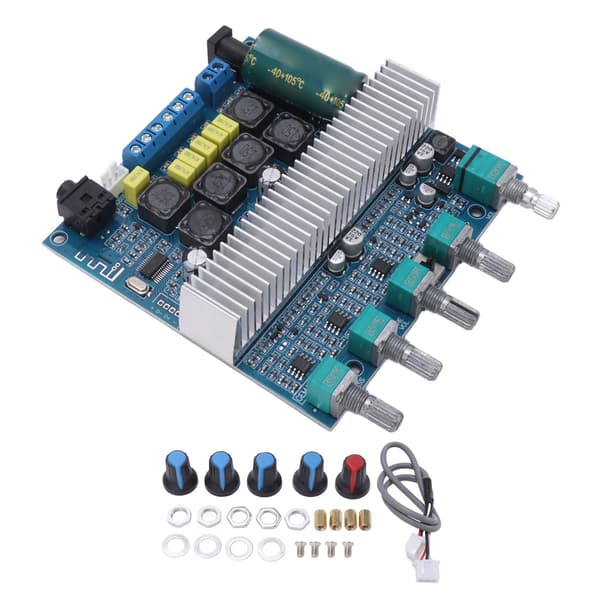

1 x Power Amplifier Board

1 x Connecting Cable

5 x Knob

5 x Screw Cap

4 x Gasket

4 x Set Screw

4 x Screw
