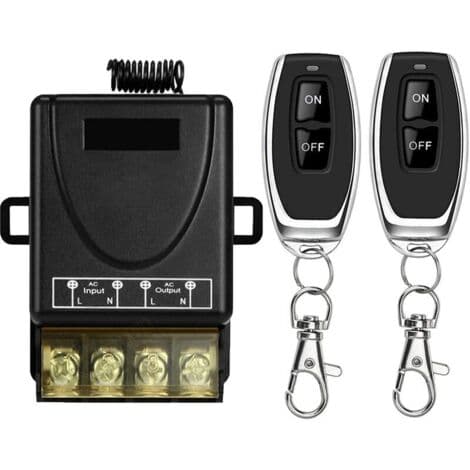

General Description

High power wireless remote control switch operating at 433 MHz, designed to control various electrical devices such as lamps, water pumps, and other household equipment. This device offers stable and reliable performance, with a reception sensitivity greater than -105 dBm, allowing for effective remote control.

Technical Specifications

Operating Voltage: AC 85V ~ 265V

Maximum Current: 30A

RF Frequency: 433 MHz

Supported Encoding: EV1527 Learning Code

Reception Sensitivity: > 97 dBm

RF Operating Mode: ASK Superheterodyne wireless reception

Operating Temperature: -30 ~ +80 °C

Reception Range: More than 50 meters in open space

Pairing Current: < 5 mA

Compatibility and Accessories

Each receiver can store approximately 20 transmitters.

One transmitter can control multiple receivers (the transmitter must be paired with the receiver).

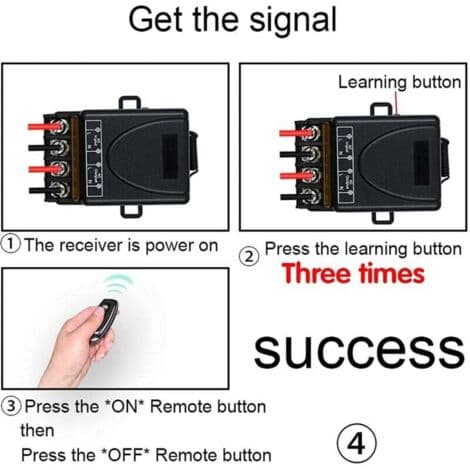

Installation

Press the learning button on the receiver 3 times.

Wait 3 seconds.

Press the ON button on the remote control.

Press the OFF button on the remote control.

Installation successful.

Usage

This device allows you to remotely control any device connected to the relay receiver via the remote control. You can choose between 3 operating modes: momentary, toggle, and latched, depending on your needs.

Other Information

The remote control has a maximum range of 164 feet without obstacles.

The receiver is equipped with an antenna to improve signal reception.

The high-quality relays can be used more than 100,000 times, ensuring increased durability and reliability.
