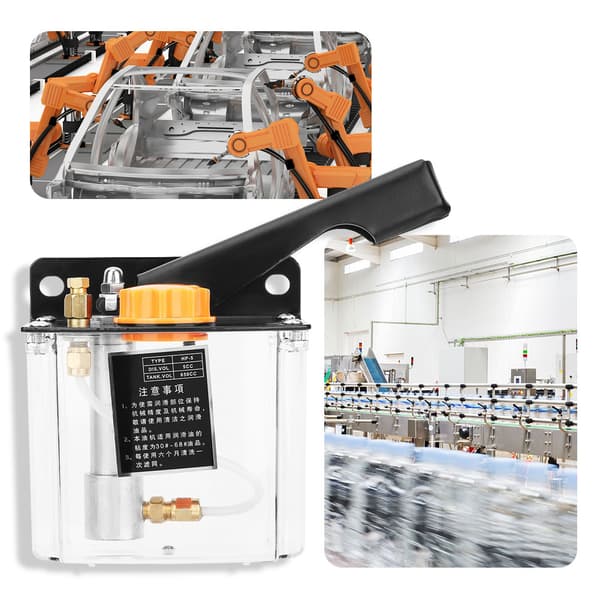

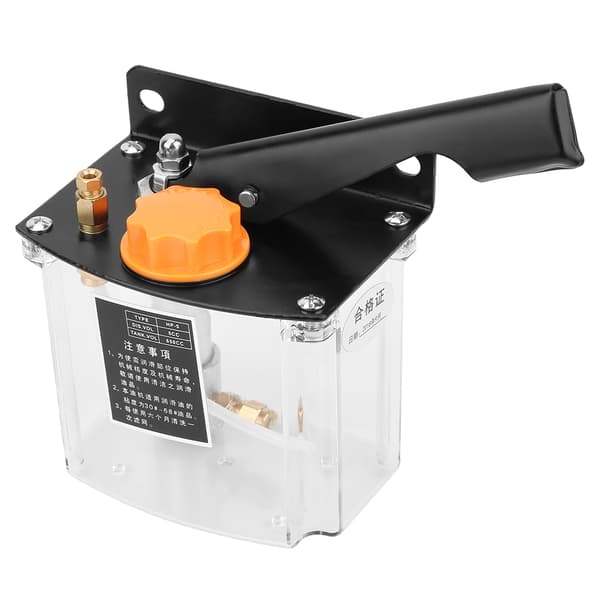

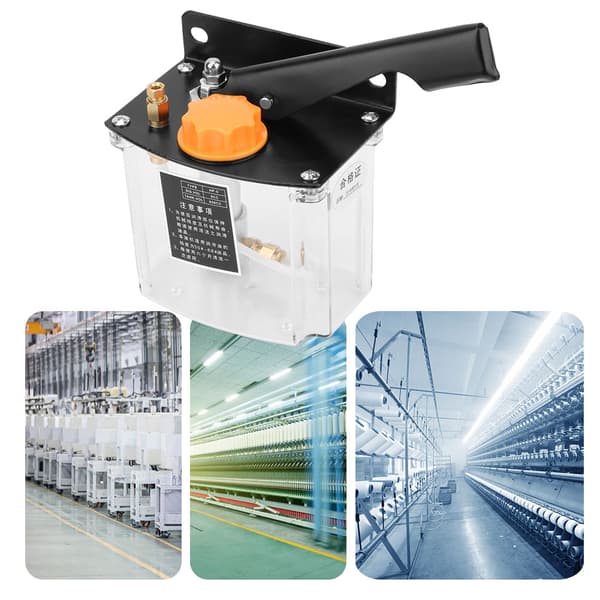

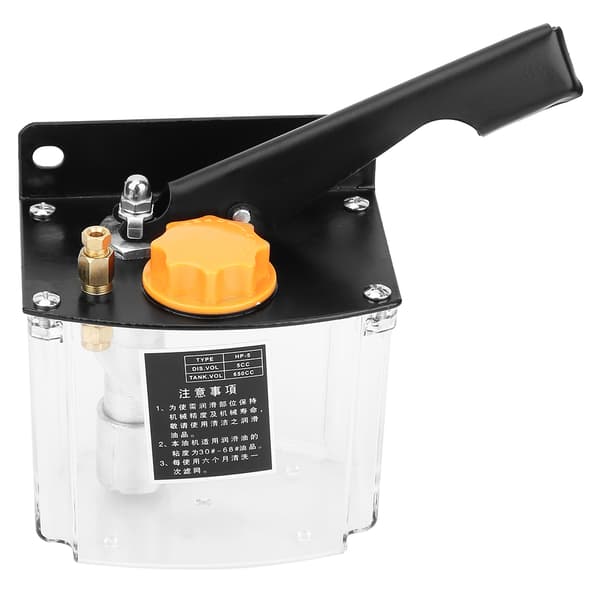

This is a small manual pump with a piston structure and a tank volume of 0.6 liters. The working principle is as follows: when the handle is pressed down by hand, the piston moves up and down under the action of a lever, which is an oil absorption process; when the handle is released, the piston moves downward under the action of spring force, which is an oil discharge process. The pump can be combined with a throttling distributor to form a centralized lubrication system. It is suggested that the oil viscosity is N20-N500. This model is right-hand operated, with a 4mm oil outlet diameter. It is widely used in lubrication systems for CNC machine tools, machining centers, production lines, forging, textile, plastic, wood, rubber, mining, metallurgy, construction, printing, casting, automotive, food industry, and other mechanical equipment.

Features:

- Small piston structure with a tank volume of 0.6 liters for efficient manual operation.

- Reliable working principle ensures smooth oil absorption and discharge.

- Compatible with throttling distributors for a centralized lubrication system.

- Recommended oil viscosity range: N20-N500.

- Right-hand operated design for easy use.

- 4mm oil outlet diameter for precise lubricant delivery.

- Versatile application in various industrial machinery.

Specifications:

- Model: HP-5R

- Drive Mode: Right-hand operated

- Output: 5 ml/min

- Maximum Discharge Pressure: 5 kgf/cm²

- Capacity: 650cc (0.65 liters)

- Outlet Diameter: M8*1 (4 mm)

- Weight: Approx. 562g / 19.8oz

Package List:

1 * Manual Lubrication Pump
